Delta Elite | 8-Tier Vertical Dumbbell Storage Wall/Rack Mount
Wall or Rack Mount
Wall studs, 3x3 or 2x3 uprights · 1" or 5/8" holes
8 Pairs · Wide Spacing
8 1/2" between tiers for big heads
Floor-Resting Mount
Weight loads through the floor, not the mount
12 Color Options
Match your gym or stand out
Rack only. Dumbbells are sold separately.
Holds eight pairs of heavy hex or round dumbbells with 8 1/2" between every tier, so wide heads clear the pair above. Sold as a pair of 70" verticals that bolt to a wall, 3x3 upright, or 2x3 upright. Pick wall, 1" hole, or 5/8" hole mounting when you order. The rack rests on the floor, so the weight loads through the floor, not the mount.
Color:Black
Mounting Hardware:Wall Mount
Room Between Every Tier
Eight tiers on a 70" upright puts 8 1/2" between every cradle. Wide hex heads clear the pair above and the pair below, so your heavy dumbbells sit properly all the way up, not just on the bottom few.
Eight Pairs, Hex or Round

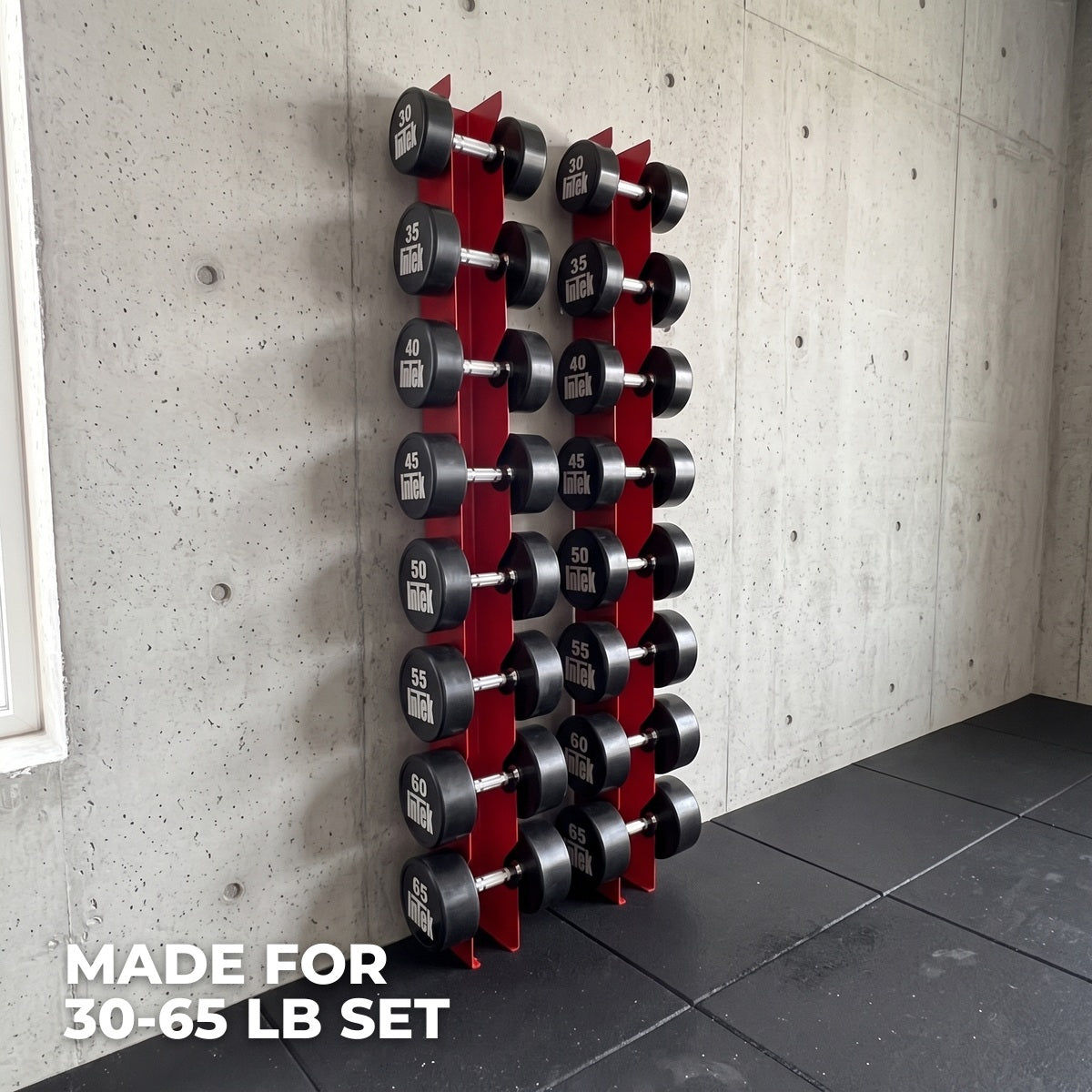

Sized for eight pairs of heavy dumbbells: a 30 to 65 lb hex set, or round urethane like InTek with heads up to 7 1/2" across. The cradles step forward as you go down, so the biggest heads sit lowest and clear of the wall.

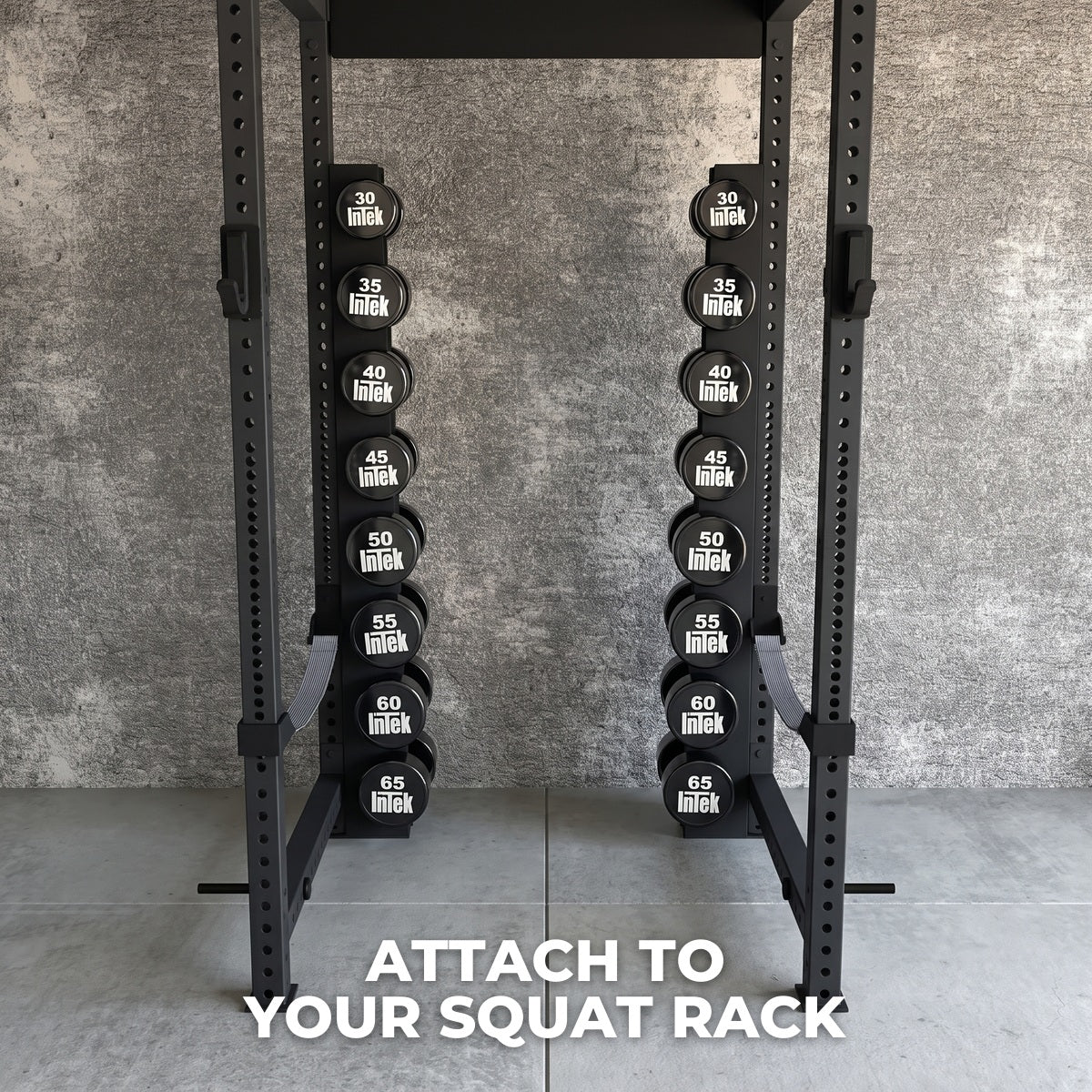

Wall or Rack Mount Flexibility
Mounts to wall studs, 3x3 uprights, or 2x3 uprights. Pick your hardware when you order: Wall Mount (brackets + 1/2" screws), 1" Hole Rack Mount, or 5/8" Hole Rack Mount. Same price either way.

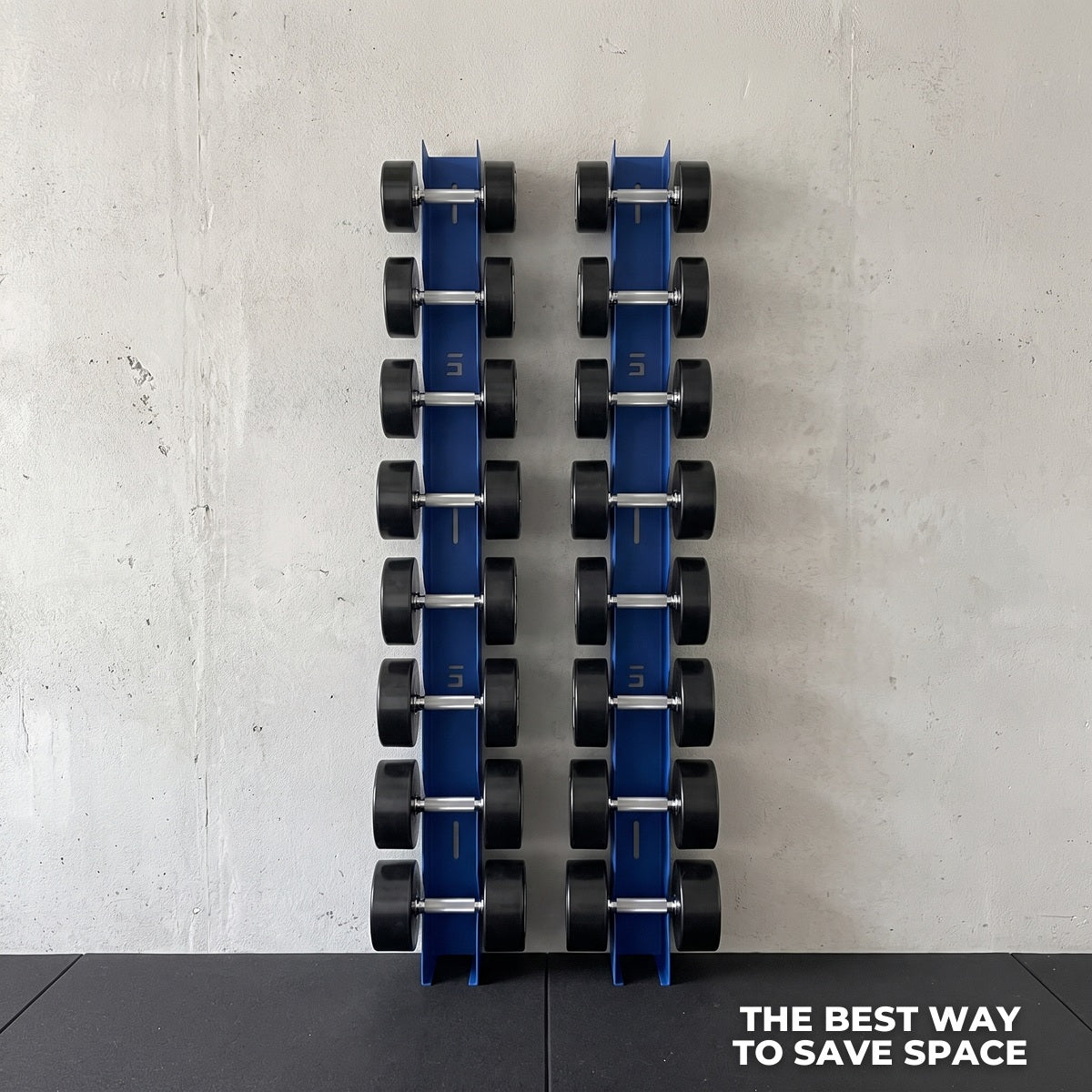

Floor-Resting Design
Both verticals stand on the floor while mounted. The floor carries the weight and the mount only keeps the rack upright, so nothing heavy hangs off your framing or your rack.
No Finger Pinch

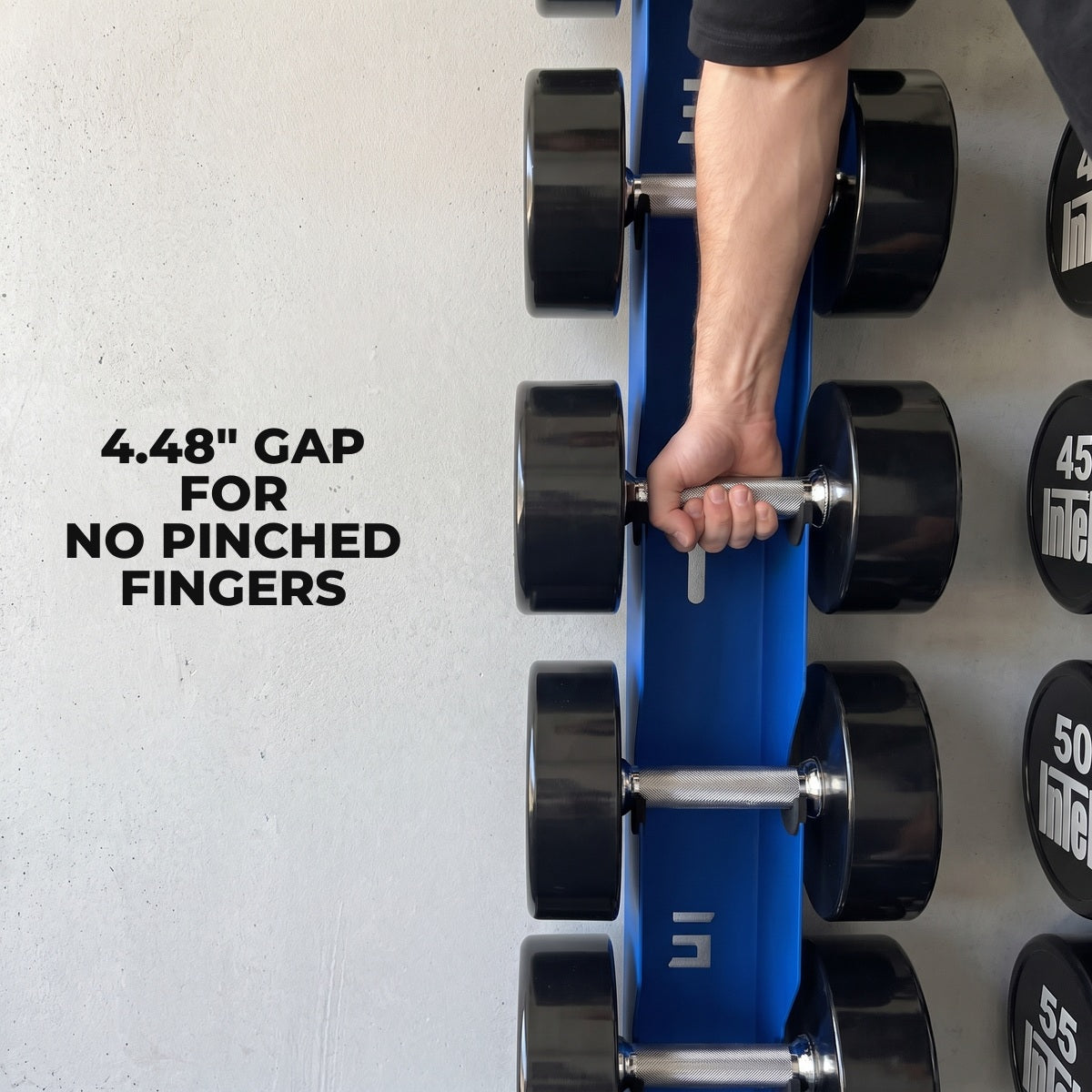

There is 4.48" of space between the side plates for your hand, and every cradle is lined with rubber. Grab and re-rack without pinching your fingers. Fits dumbbell handles of 5" or more.
Built to Last, 12 Colors

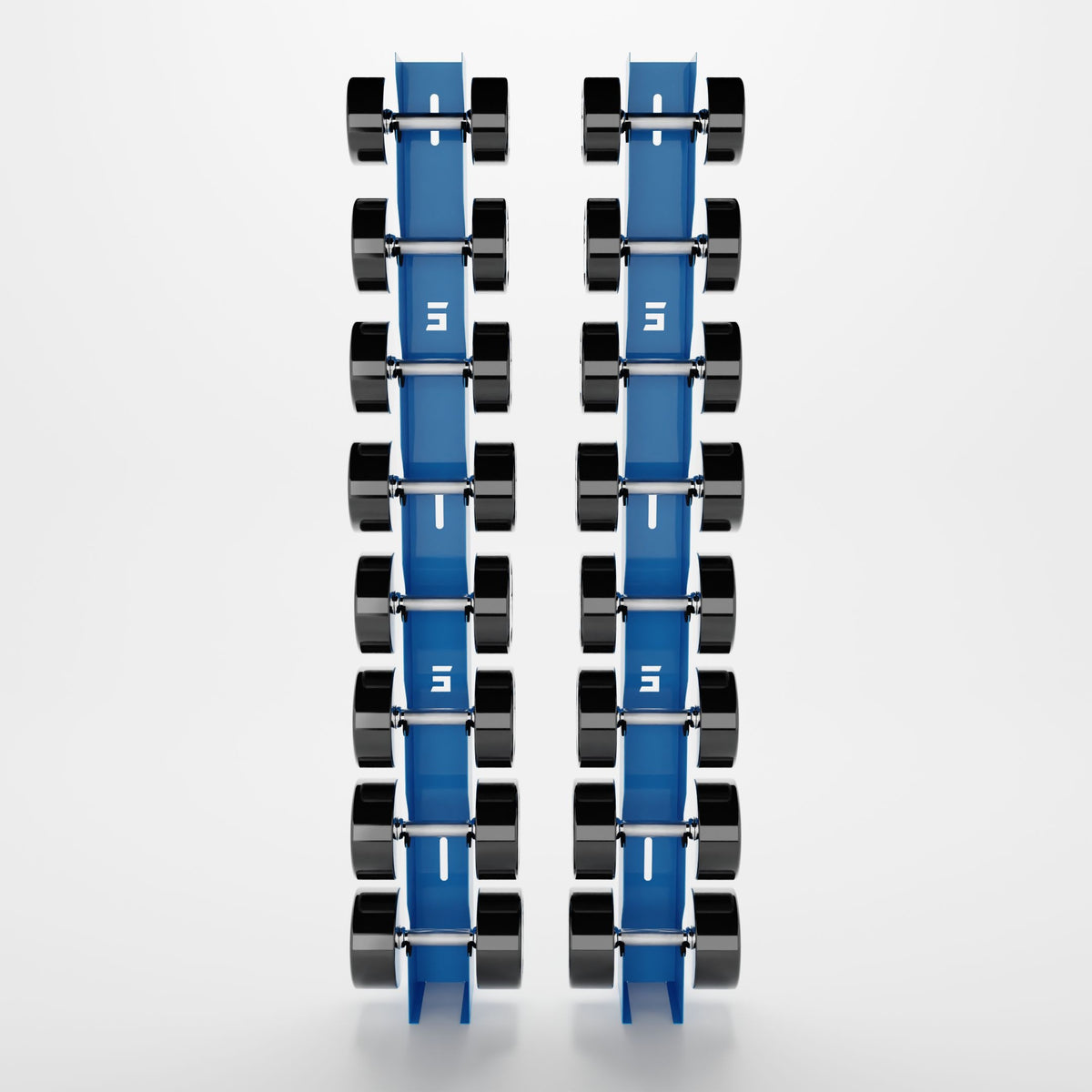

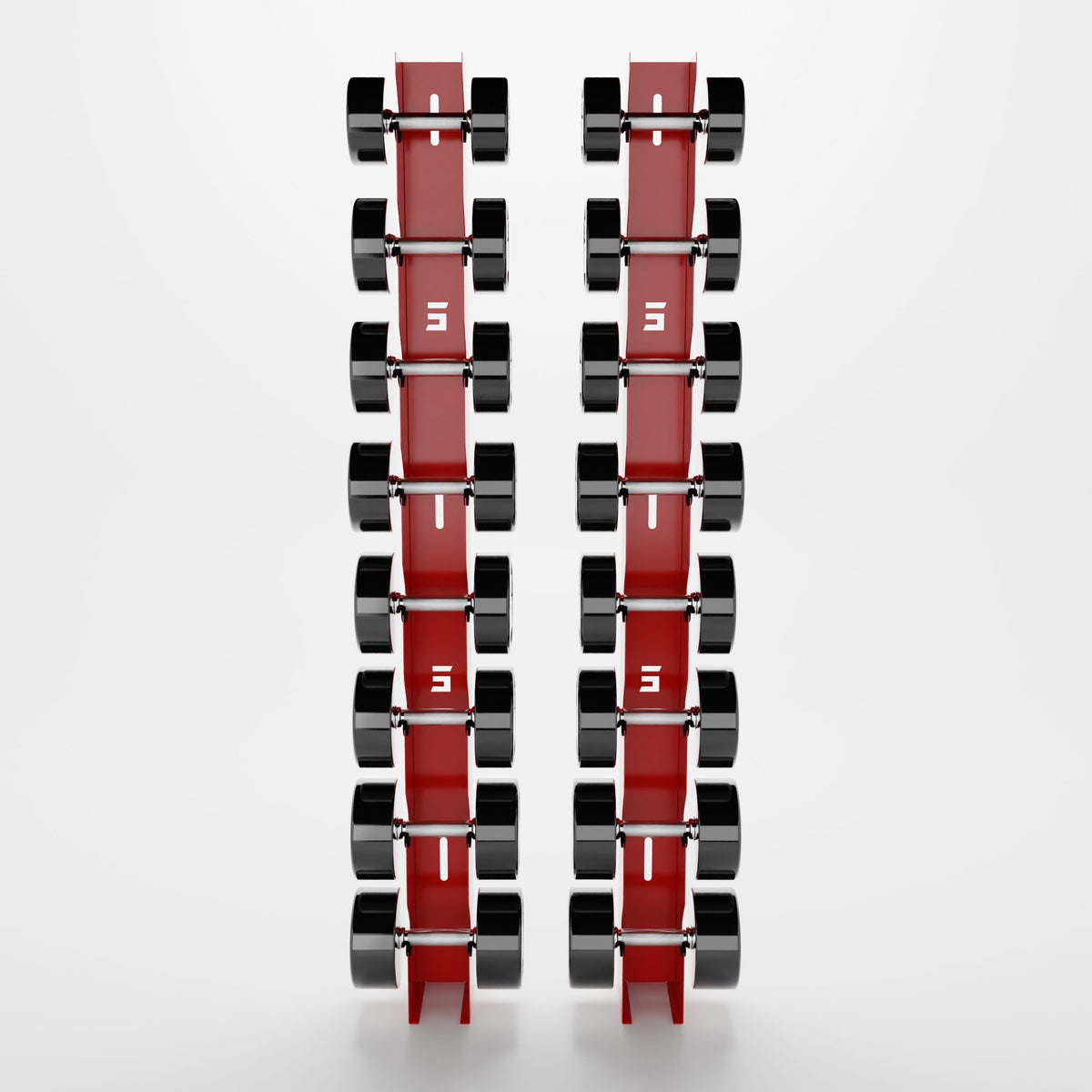

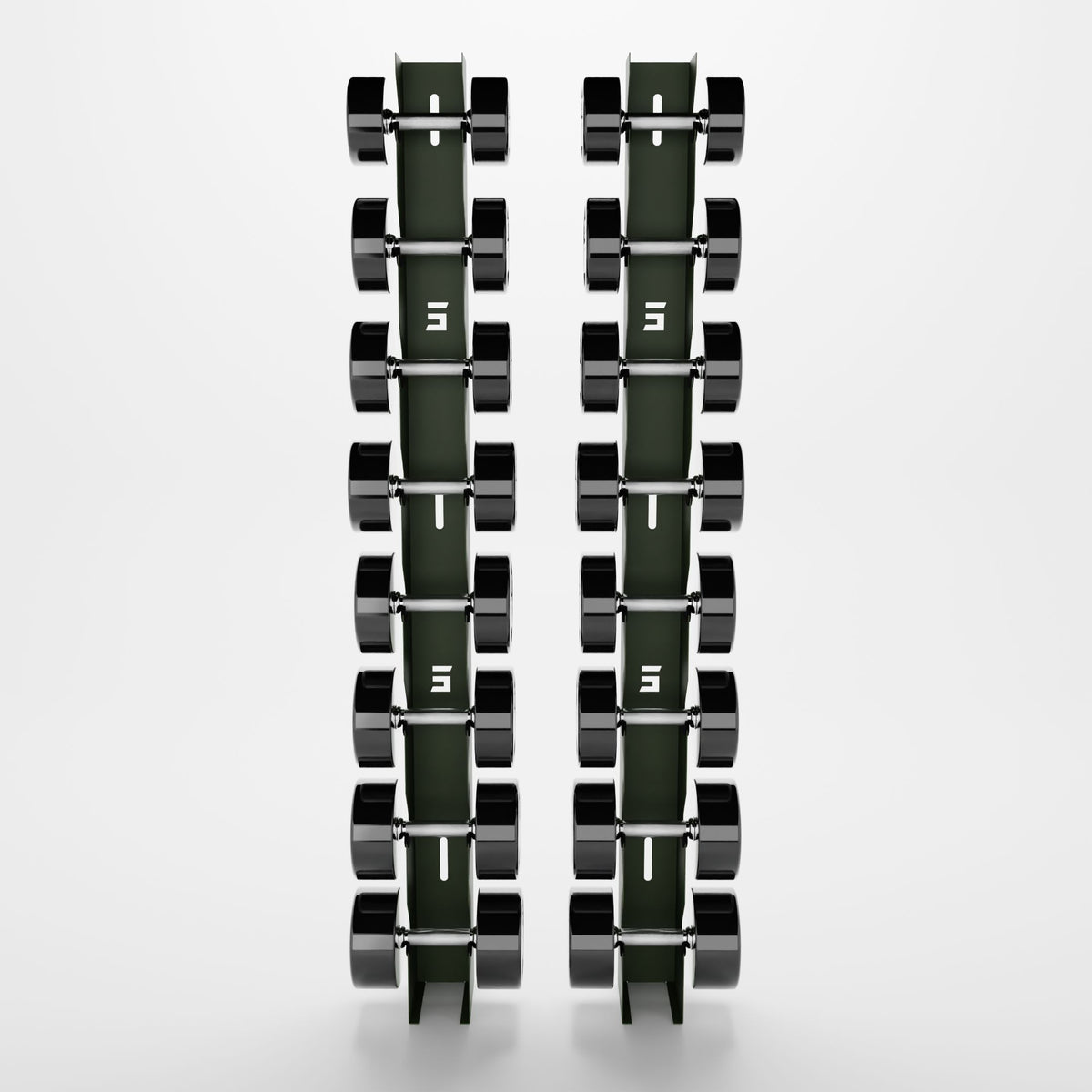

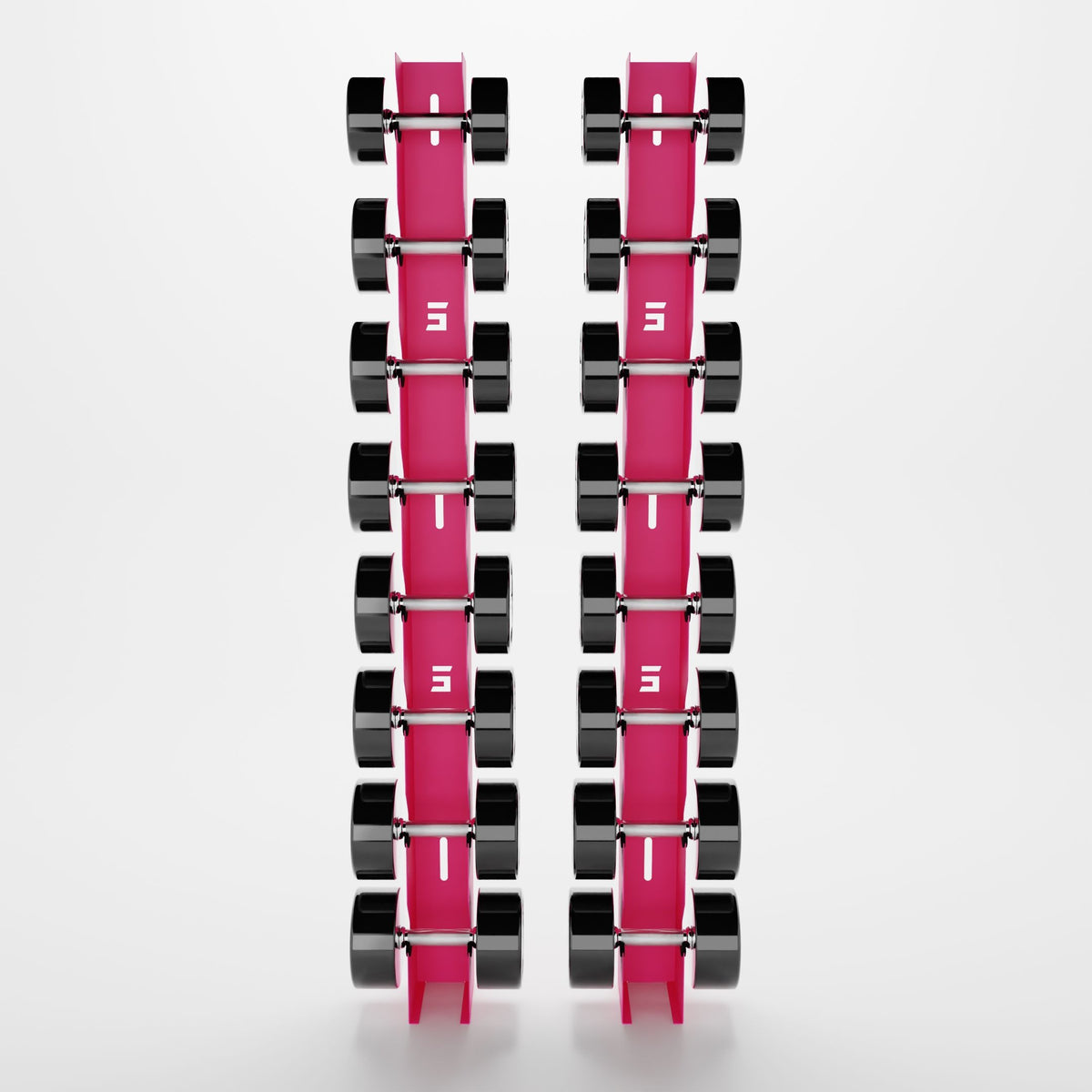

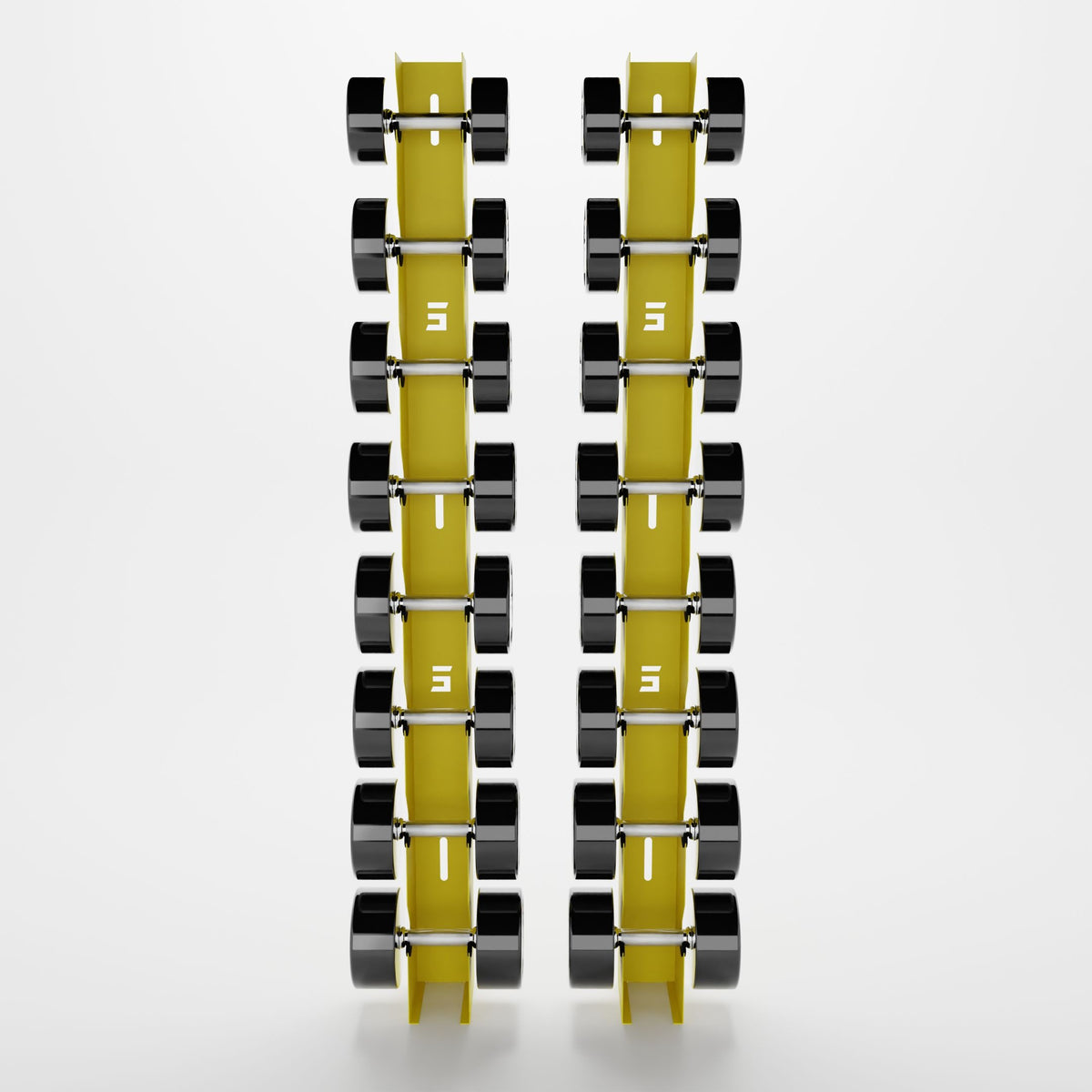

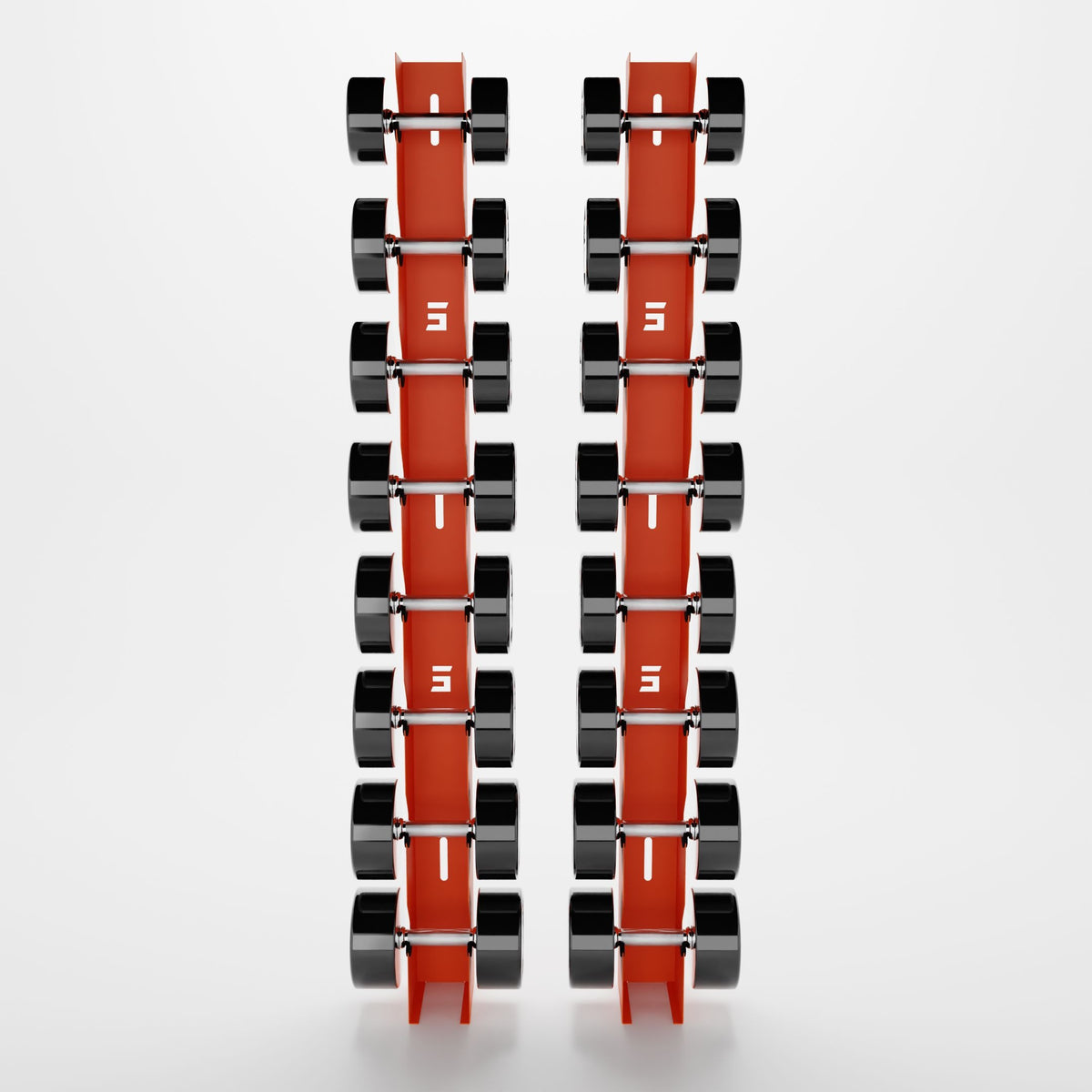

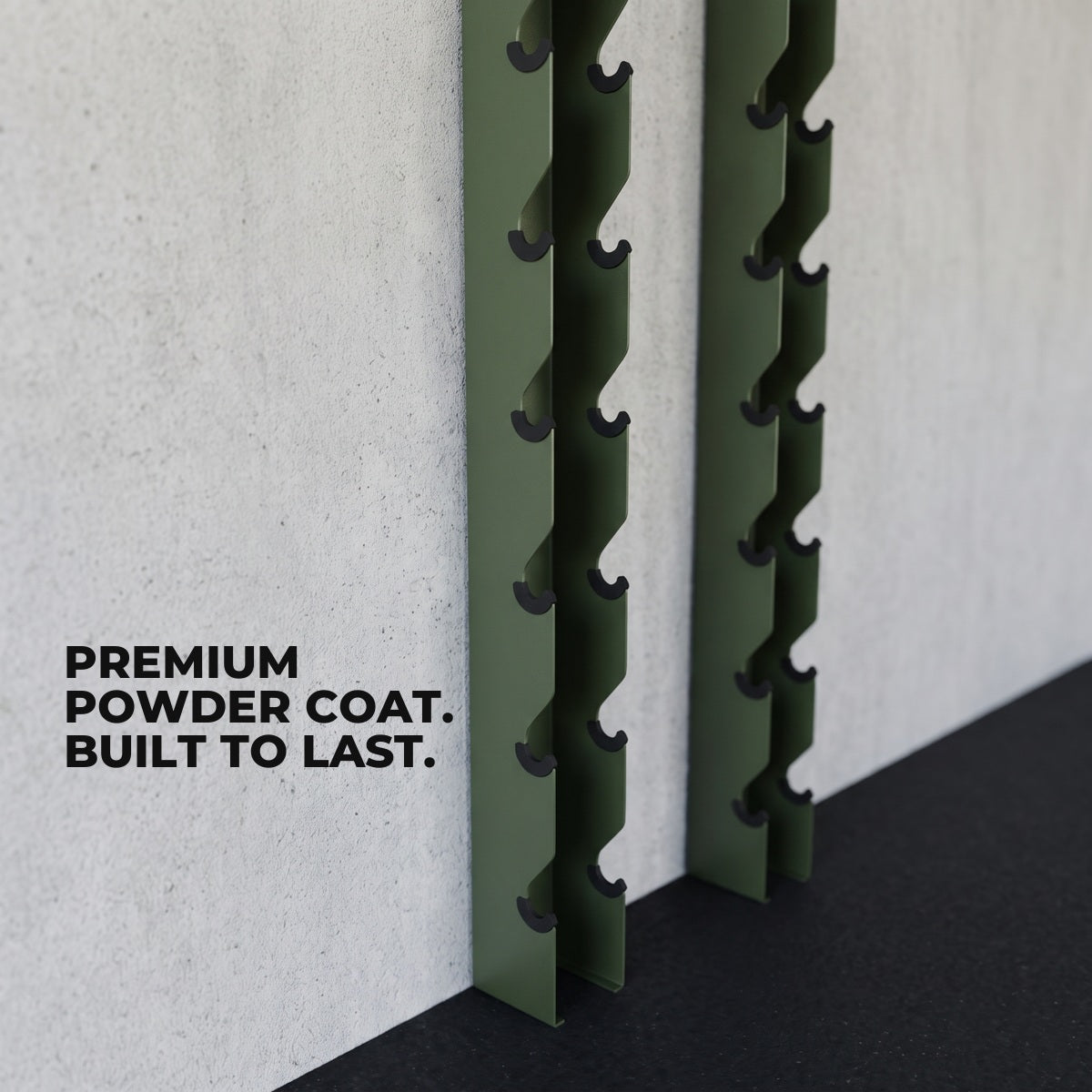

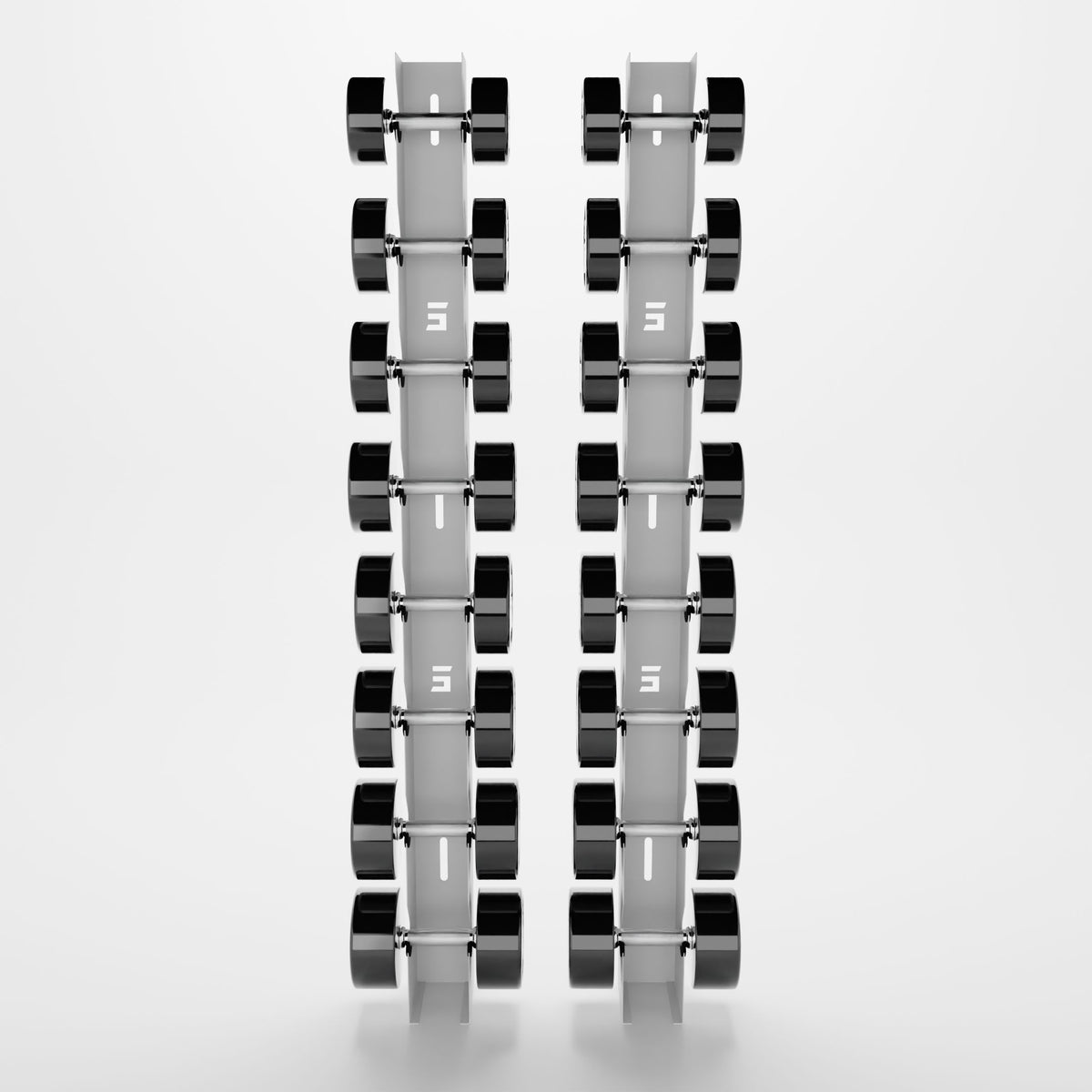

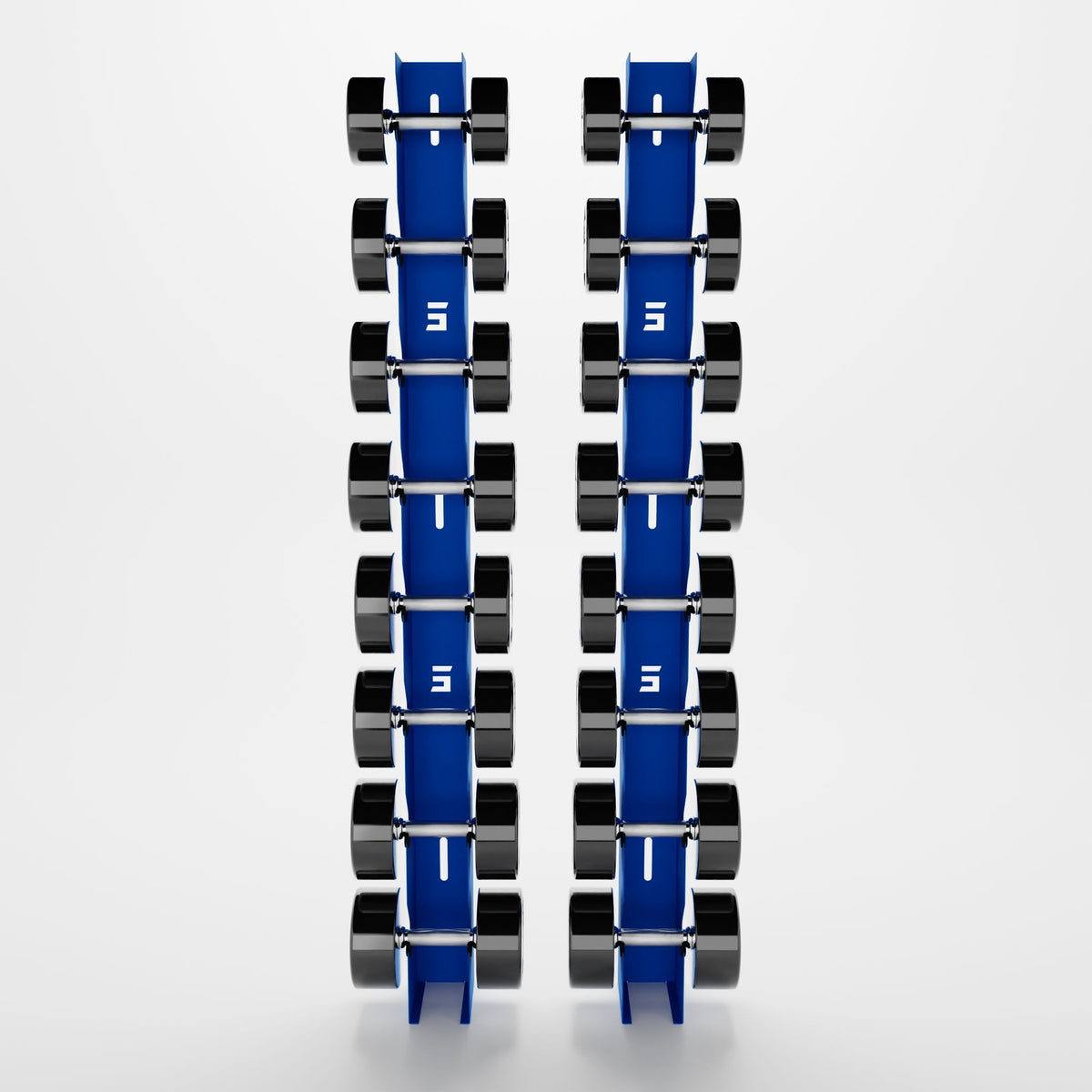

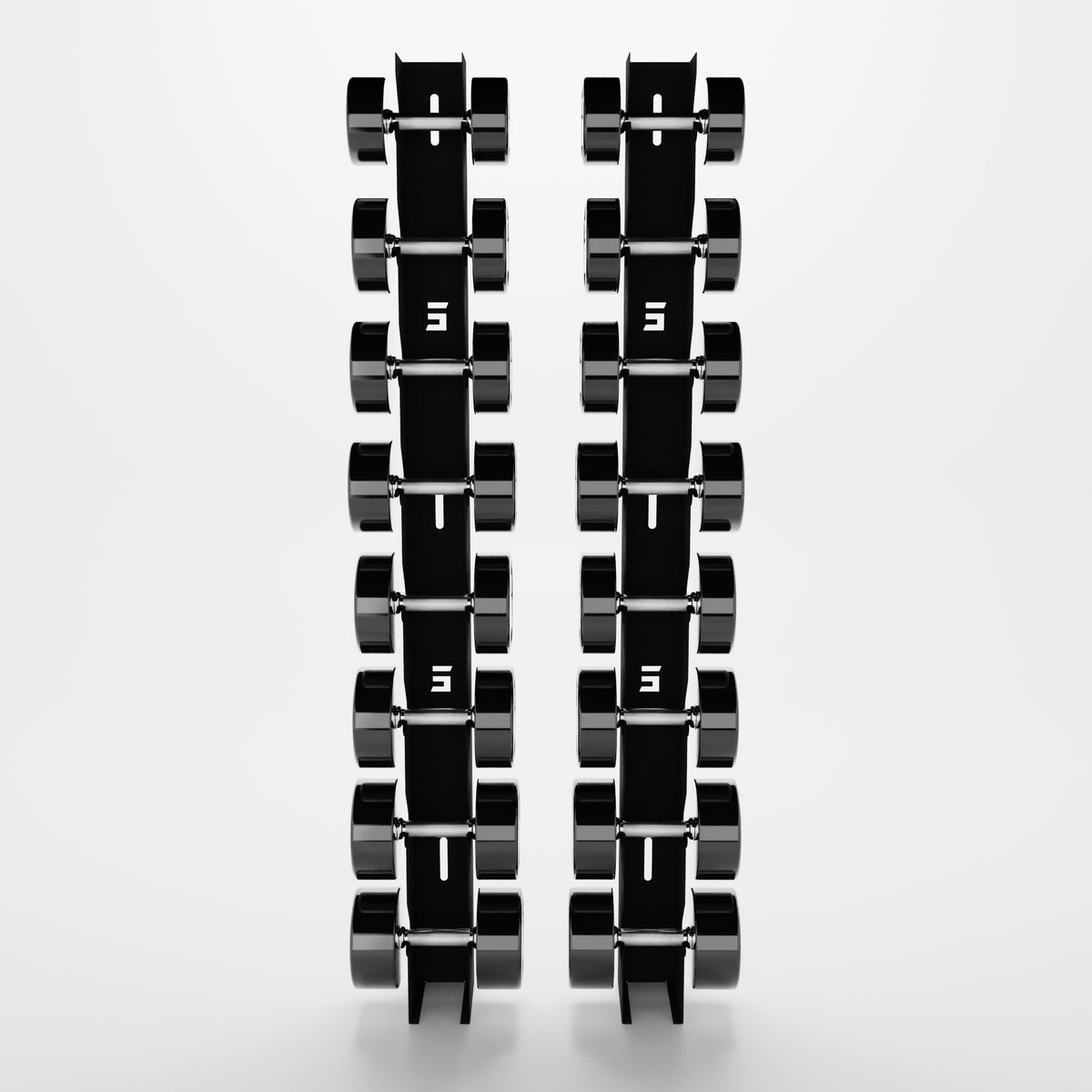

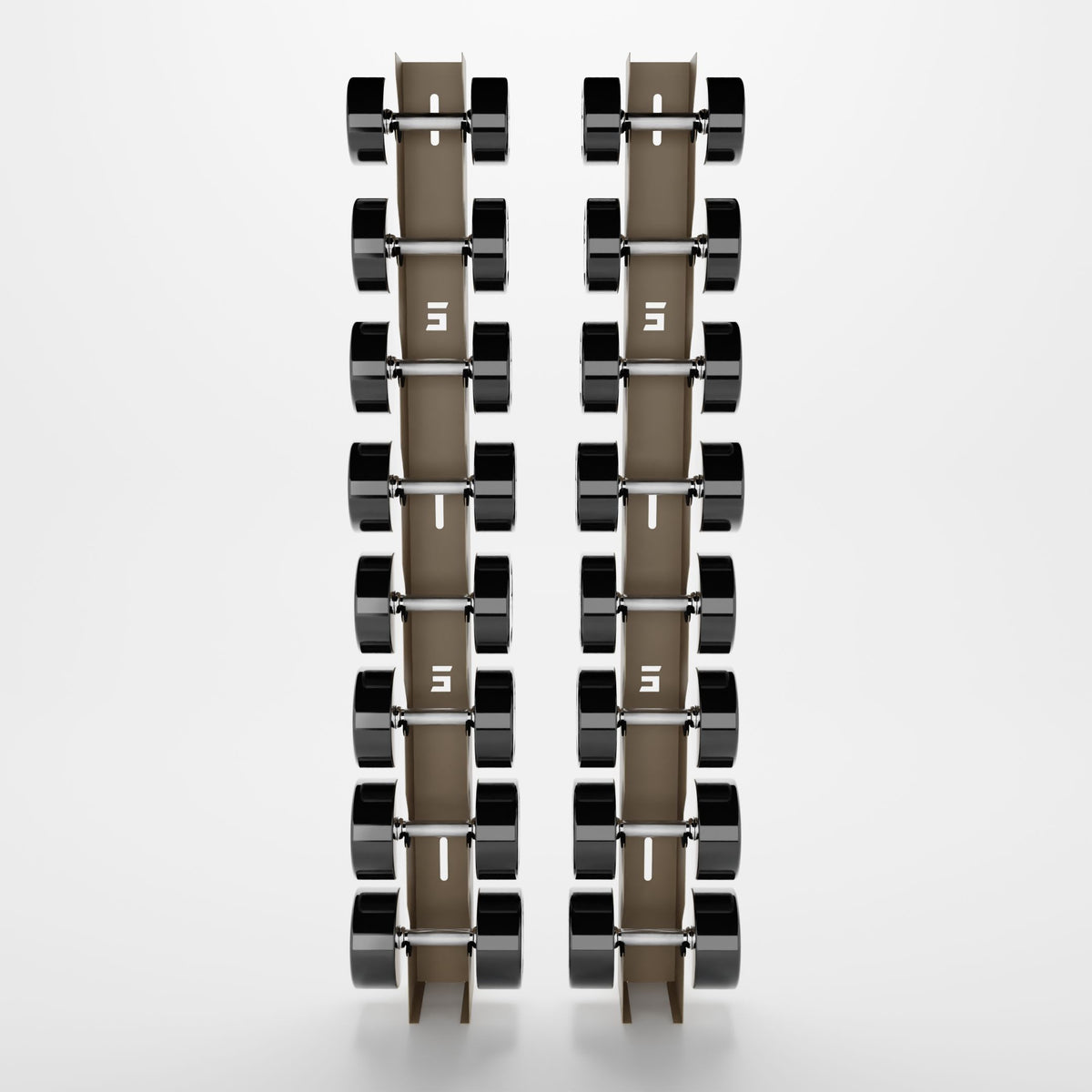

14-gauge steel with a chip-resistant powder coat, backed by our Limited Lifetime Warranty. Available in Black, Synergy Blue, White, Red, Grey, Orange, Yellow, Blue, Military Green, Military Tan, Hot Pink, and Purple.
| Model Number | DB-VERMNT8E |

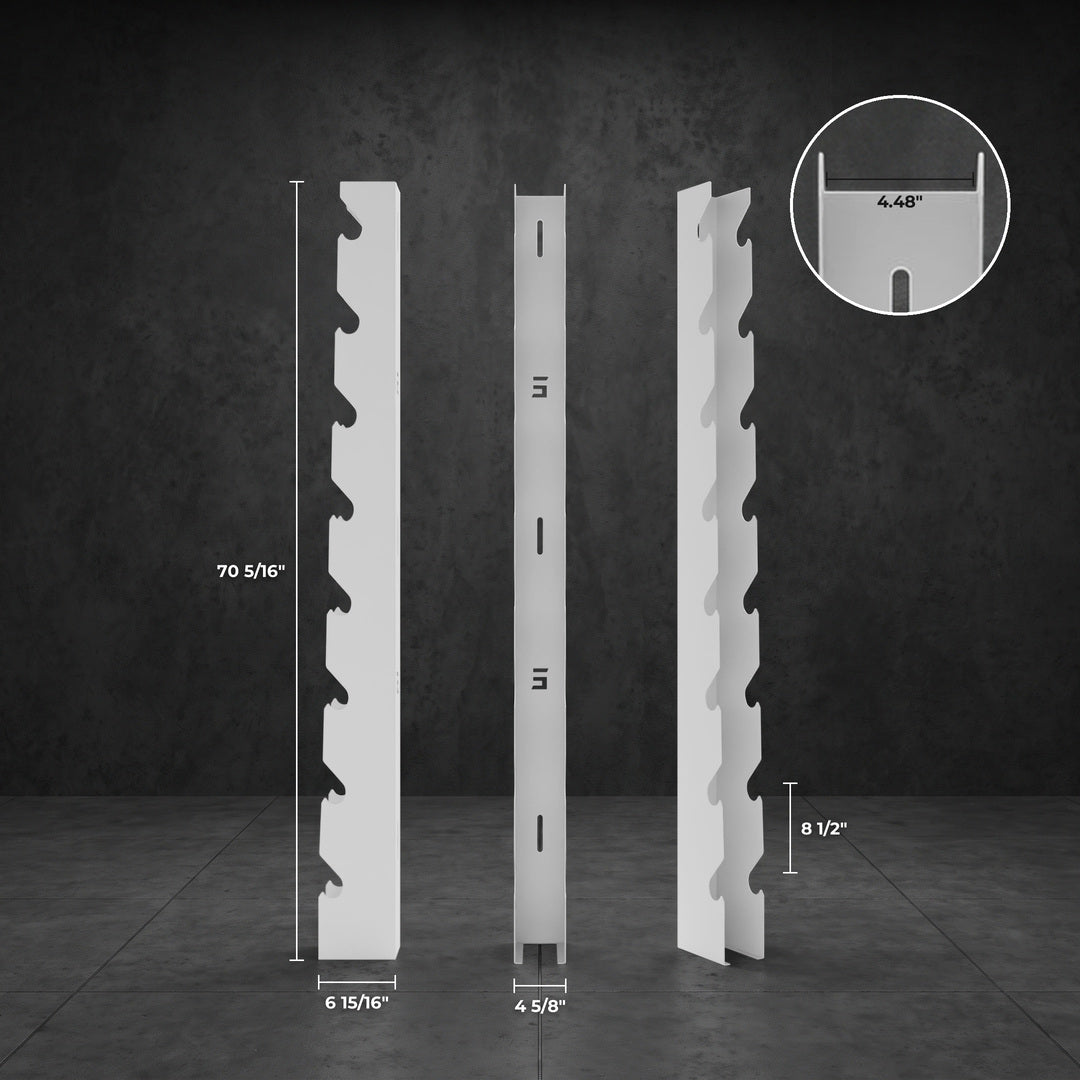

| Dimensions (each vertical) | 70 5/16"H × 4 5/8"W × 6 15/16"D |
| Tiers | 8, with 8 1/2" between tiers |
| Inside Handle Space | 4.48" |
| Required Dumbbell Handle | 5" or more |
| Cradles | Rubber-lined, on every tier |
| Material | 14 Gauge Steel |
| Finish Type | Powder Coat |
| Warranty | Limited Lifetime |
Compatible With
| Mounting Surfaces | Wall studs, concrete, 3x3 uprights, 2x3 uprights |
| Hole Compatibility | 1" holes OR 5/8" holes (pick when you order) |
| Dumbbells | 8 pairs of hex or round dumbbells, heads up to 7 1/2" across (for example a 30 to 65 lb set) |
| Dumbbell Handle | 5" or larger handle space |
| What's in the Box | 2 verticals (sold as a pair) + mounting hardware kit for the variant you selected |
Frequently Asked Questions
No. This listing is for the Delta Elite 8-Tier Wall/Rack Mount only: two verticals plus the mounting hardware for the variant you pick (Wall Mount, 1" Holes Rack Mount, or 5/8" Holes Rack Mount). Dumbbells and the wall or rack shown in product photos are not included.

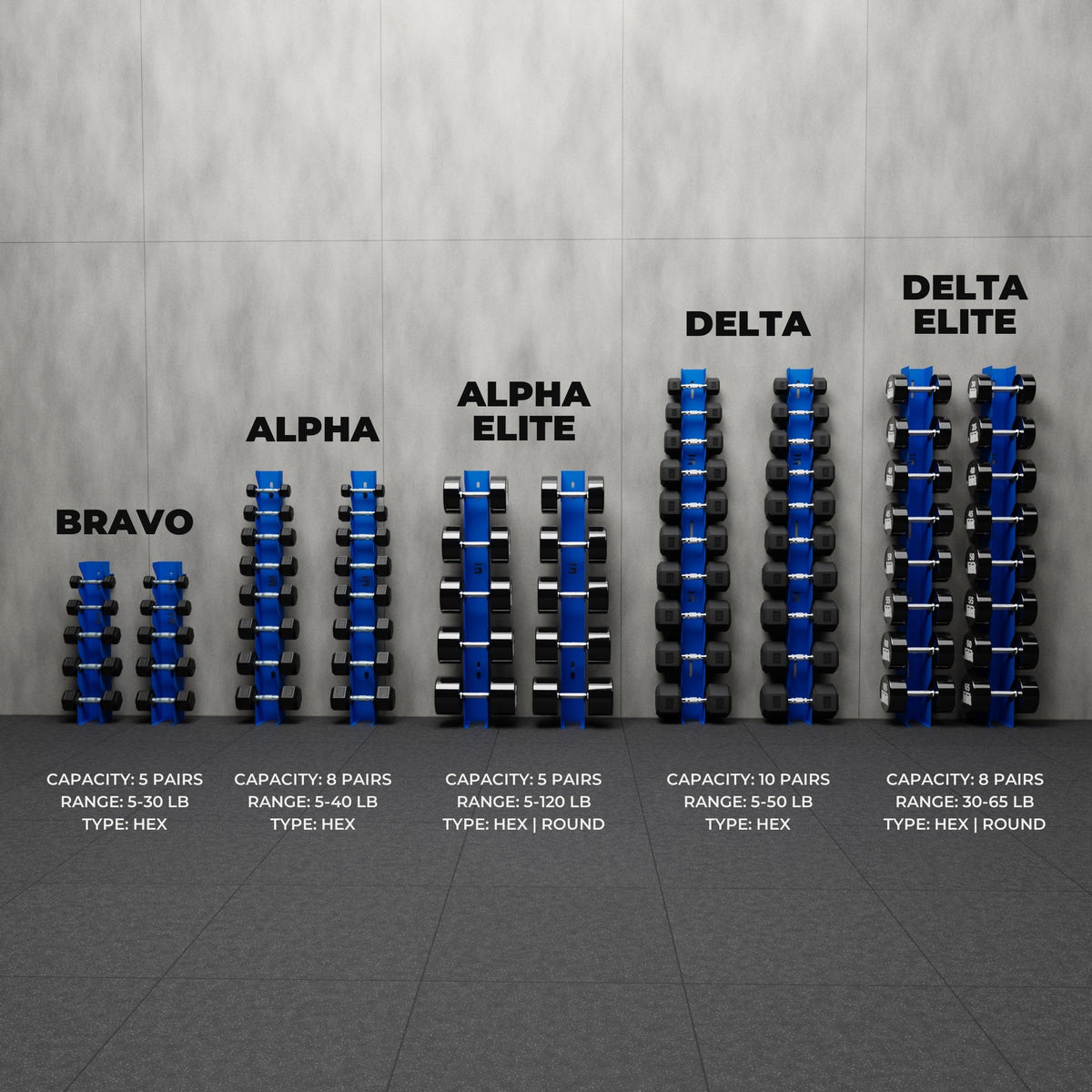

Both are 70" tall. The Delta 10 fits ten tiers for a 5 to 50 lb set, spaced tighter toward the top where the light dumbbells go. The Delta Elite fits eight tiers on the same height and gives every one of them the full 8 1/2", so heavy pairs with big heads fit all the way up.
Three options, all priced the same. Pick the one that matches what you are mounting to:
Wall Mount: For mounting directly to wall studs or concrete. You'll receive brackets and 1/2" screws.
1" Holes Rack Mount: For mounting to a 3x3 or 2x3 upright that has 1" mounting holes.
5/8" Holes Rack Mount: For mounting to a 3x3 or 2x3 upright that has 5/8" mounting holes.
Not sure which hole size your rack has? Measure the mounting hole diameter, or check your rack manufacturer's spec sheet. Synergy racks use 1" holes. Some Rogue, REP, and Sorinex models use 5/8" instead.
Wall Mount: For mounting directly to wall studs or concrete. You'll receive brackets and 1/2" screws.
1" Holes Rack Mount: For mounting to a 3x3 or 2x3 upright that has 1" mounting holes.
5/8" Holes Rack Mount: For mounting to a 3x3 or 2x3 upright that has 5/8" mounting holes.
Not sure which hole size your rack has? Measure the mounting hole diameter, or check your rack manufacturer's spec sheet. Synergy racks use 1" holes. Some Rogue, REP, and Sorinex models use 5/8" instead.
Eight pairs of hex or round dumbbells with a handle of 5" or more and heads up to 7 1/2" across, for example a 30 to 65 lb hex set or InTek urethane rounds in 5 lb steps. Put the heaviest pair on the bottom tier and work up. If your set runs heavier or uses a different head size, send us the brand and weights and we will confirm the fit before you order.
No. There is 4.48" between the side plates and every cradle is lined with rubber, so there is room for your hand under the handle when you lift a dumbbell out or set it back.
Yes. Both verticals stand on the floor and carry the load through it. The wall brackets or rack adapters keep them upright and stop them tipping forward, so you are never hanging heavy dumbbells off your drywall or your rack.
Yes. The 8 1/2" tier spacing was set for wide heads, so round urethane sets like InTek fit with heads up to 7 1/2" across, the size of an InTek 50 to 65 lb. The rubber-lined cradles hold a round handle just as well as a hex one. If your heads are larger than 7 1/2", contact us before you order.
Limited Lifetime warranty on the steel and powder coat finish. We also offer a 30-day return window from delivery if you change your mind.
