Locking Caster Kit
Total Lock Brake
Wheel and swivel, one press
Bolts Into Your Base
Existing holes, no drilling
Rated to 1,200 lb
Set of four 4" casters

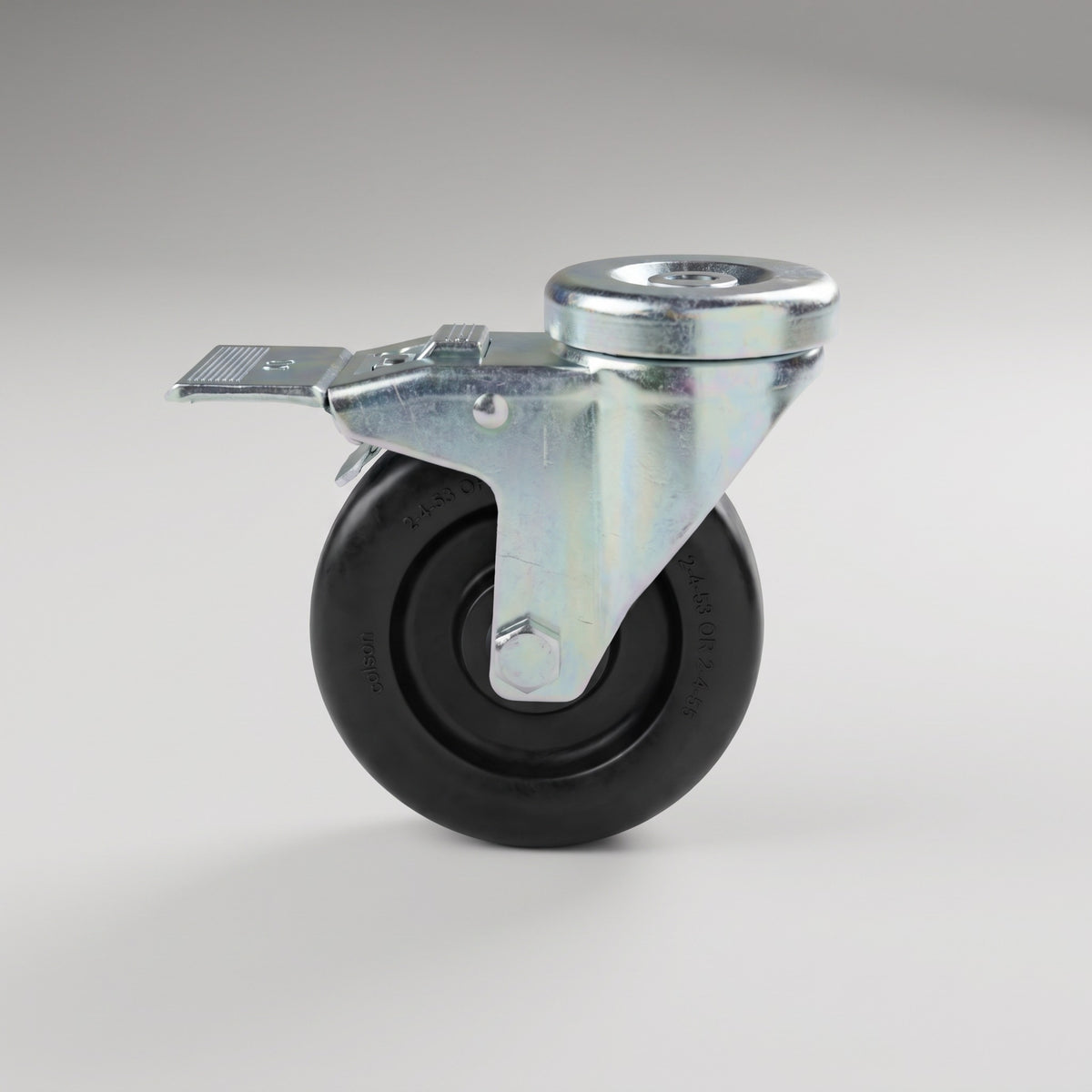

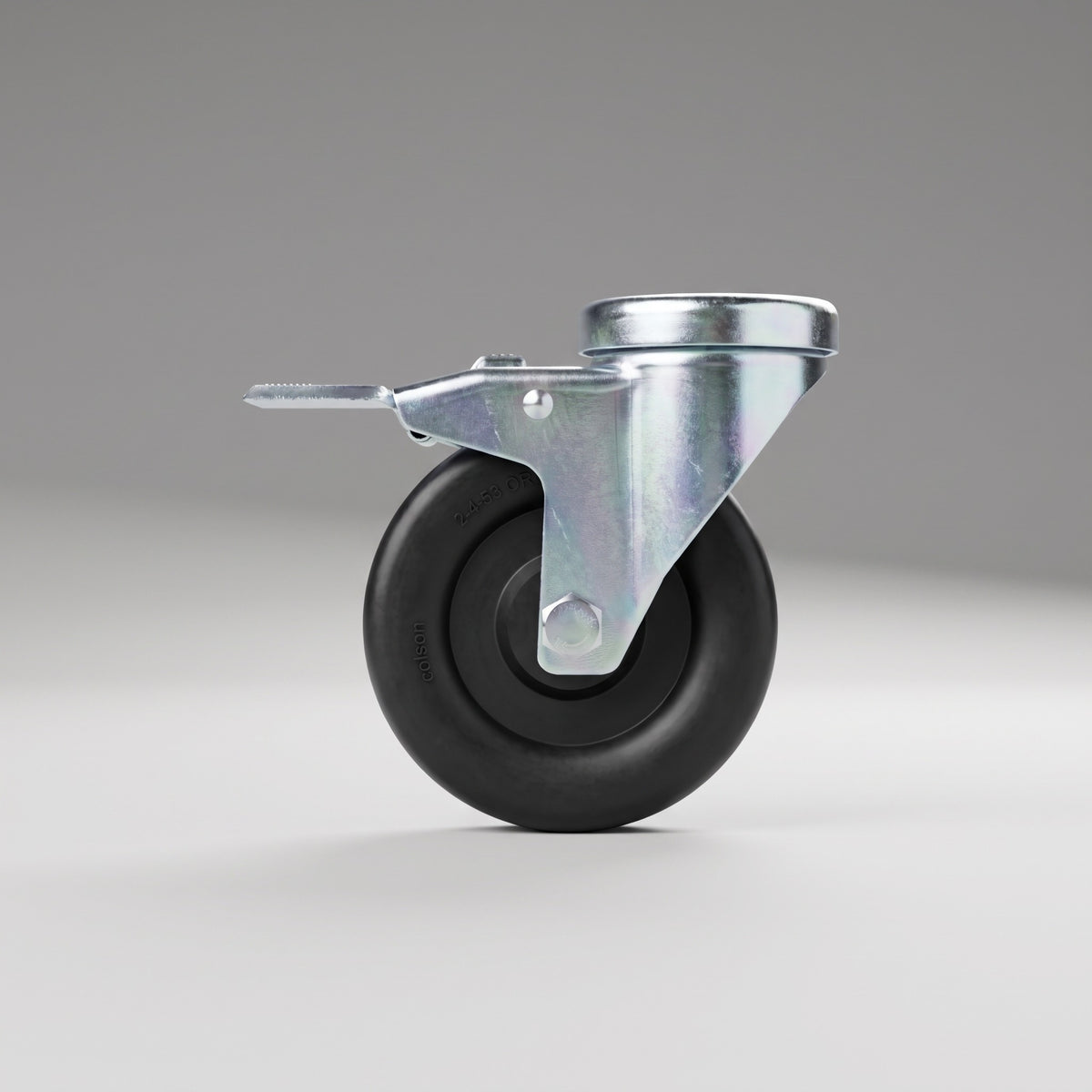

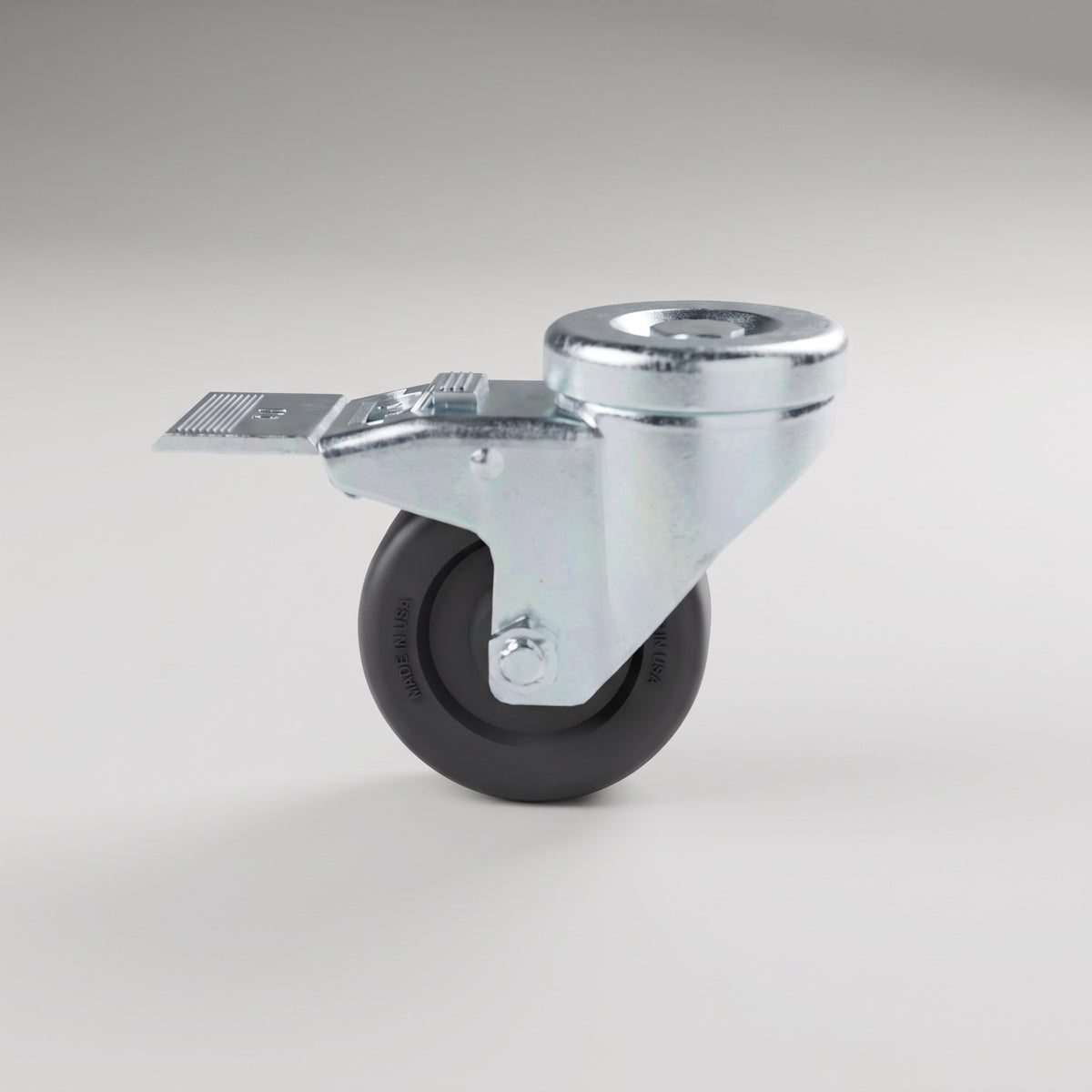

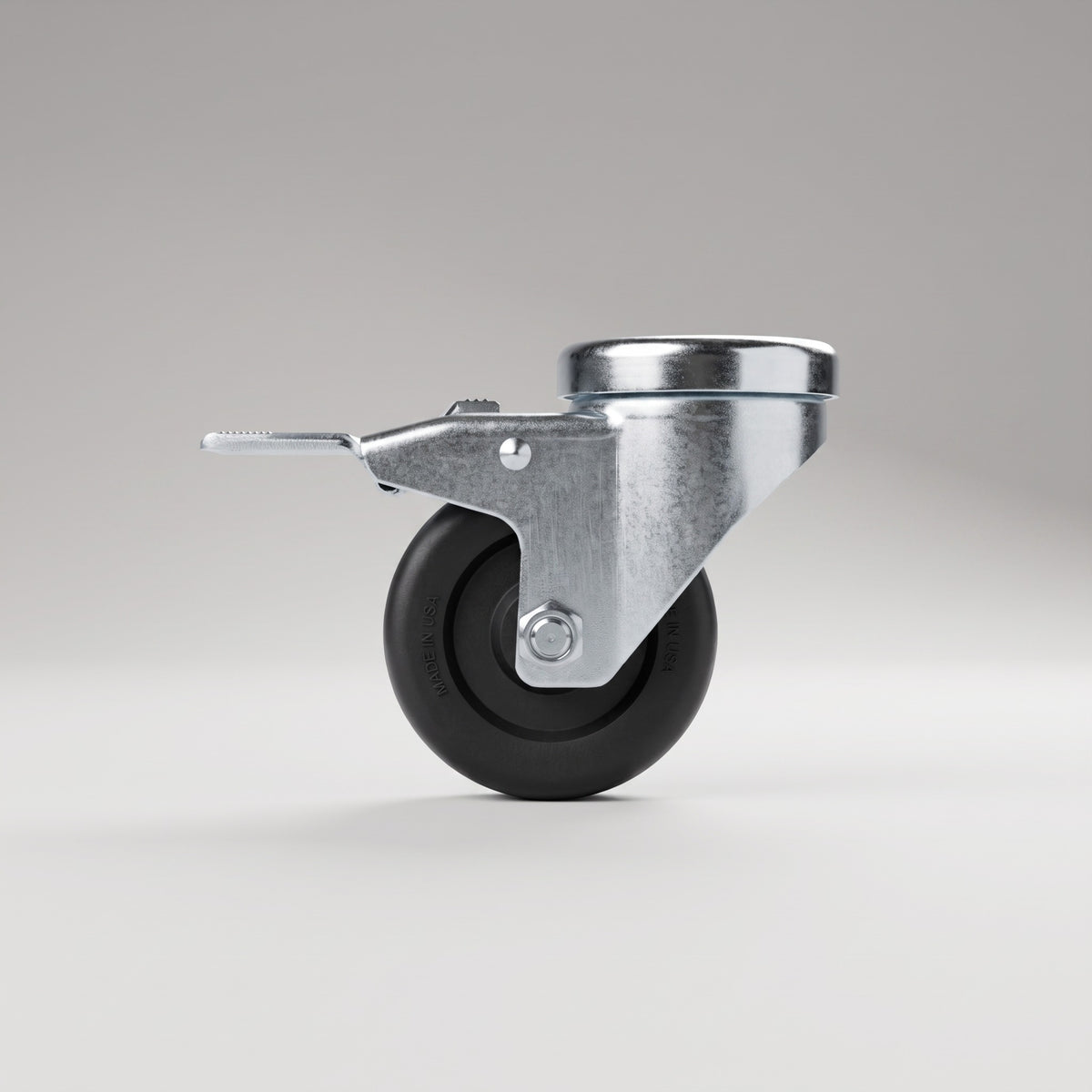

3" or 4" Wheels
Pick your ride height

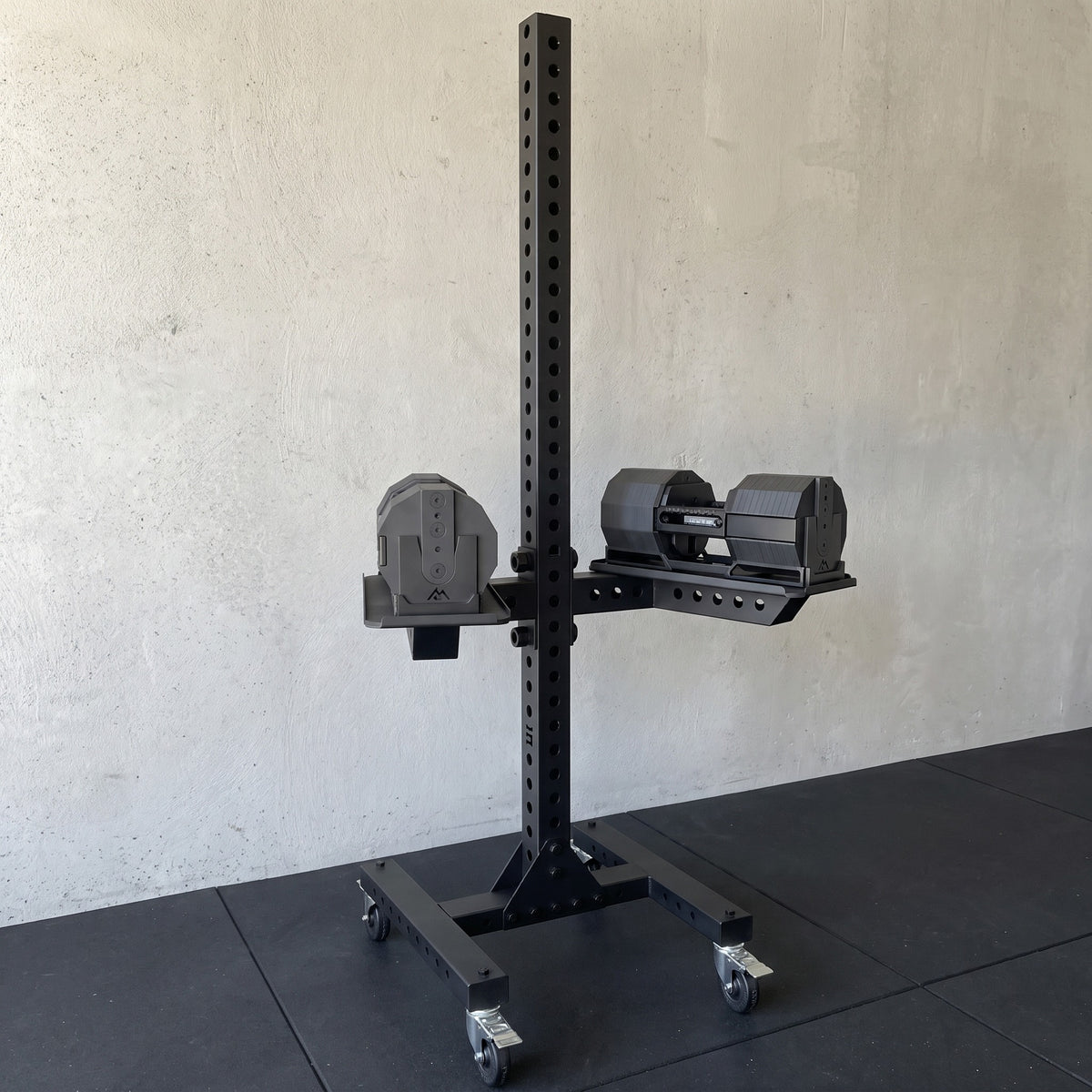

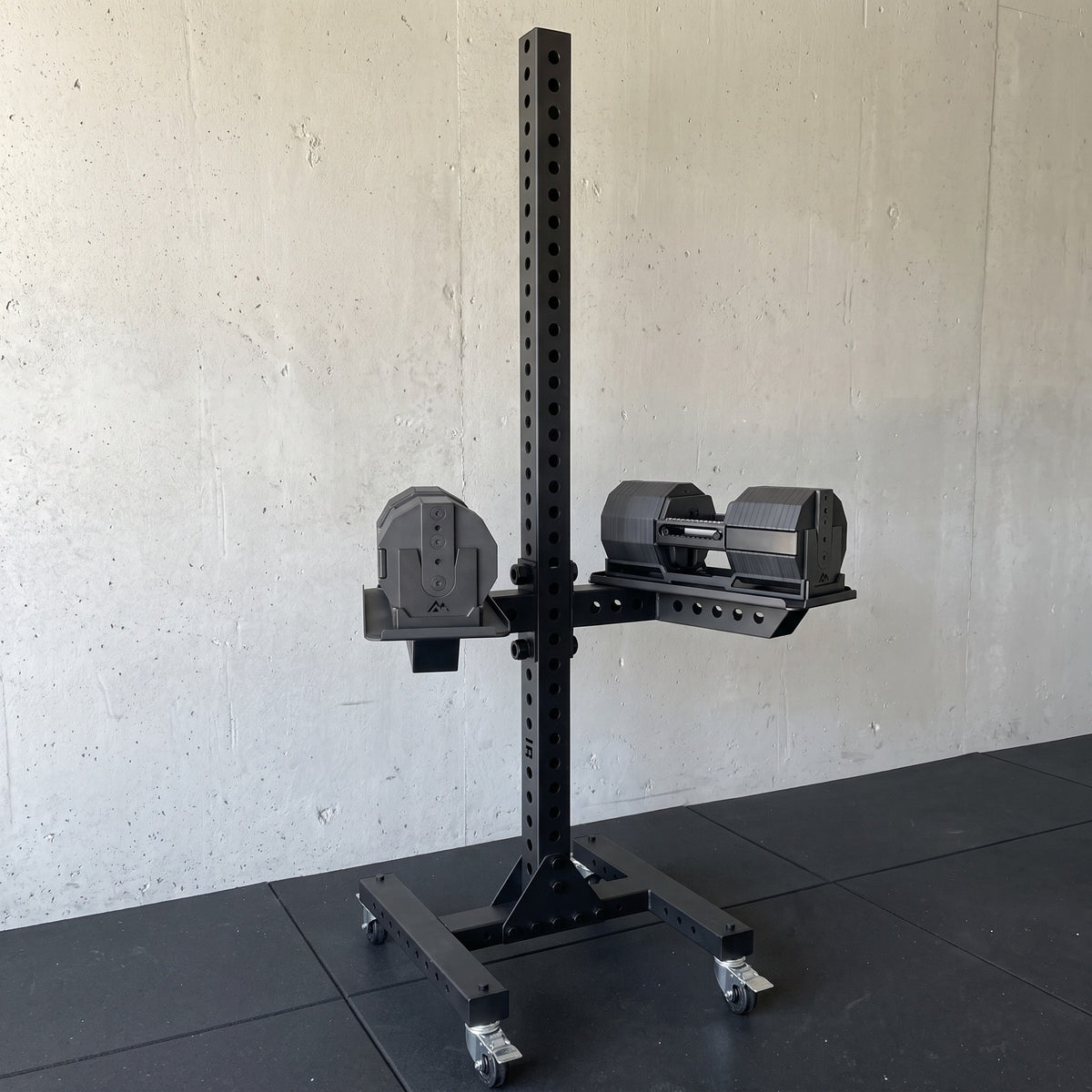

A loaded dumbbell rack is not something you drag across the floor. This kit puts your Delta rack on four locking casters that bolt into the holes already at the ends of the Delta leg base. Roll it where you train, step on the brakes, and it stays put.
Wheel Size:3" Wheels
Total Lock Brake

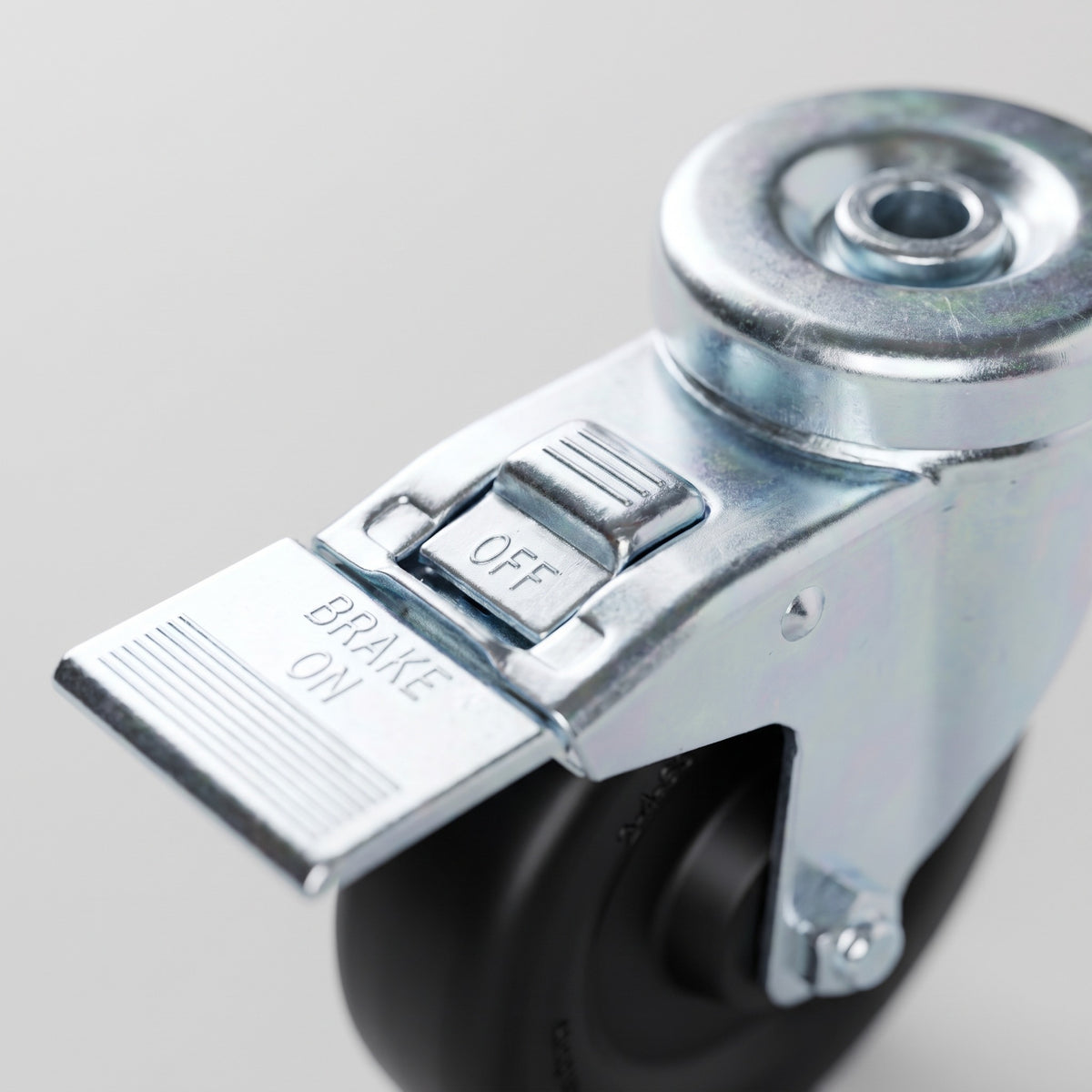

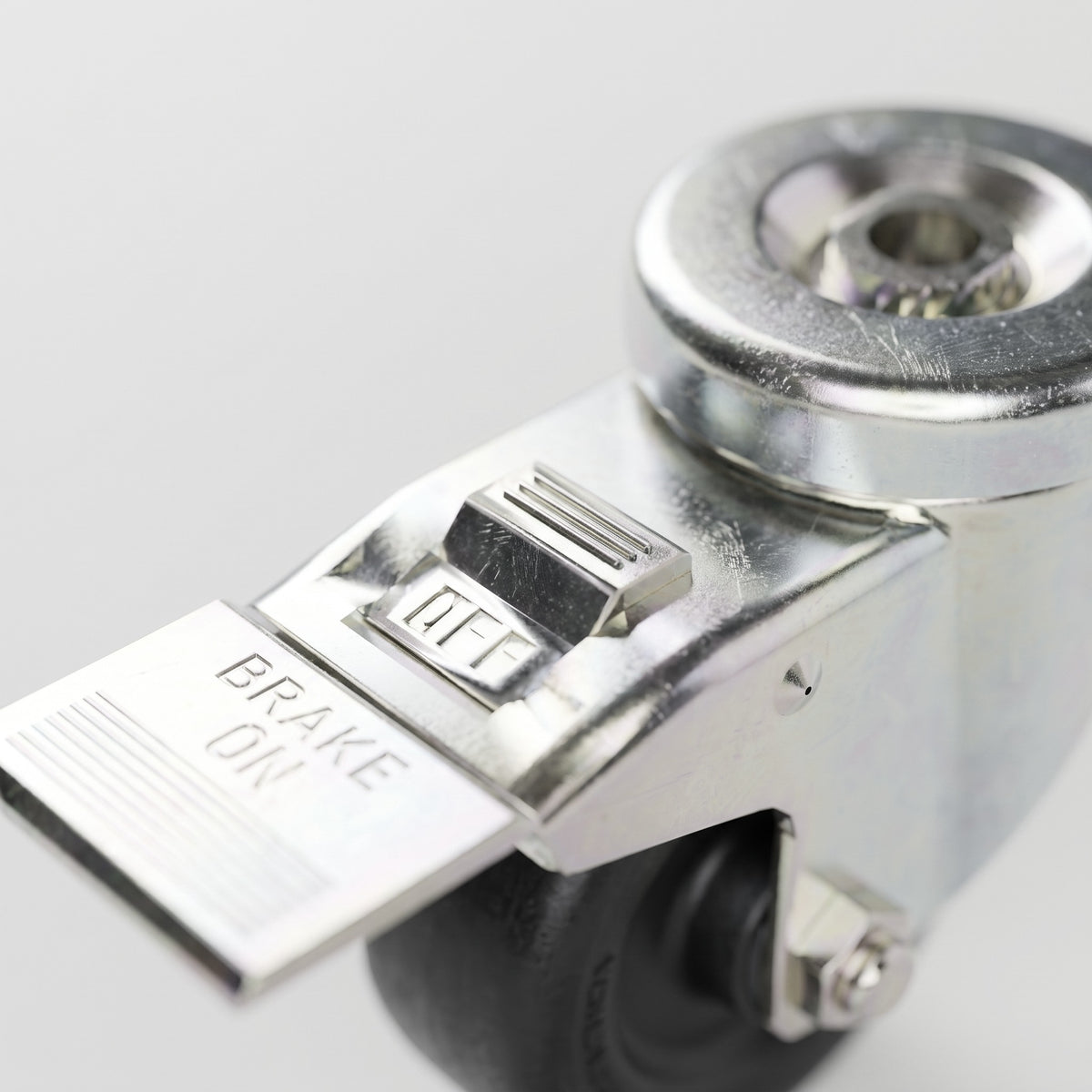

One press on the pedal locks both the wheel and the swivel, so the rack does not roll or spin while you rack and unrack. Press OFF and it rolls freely again.
Bolts Straight Into Your Base

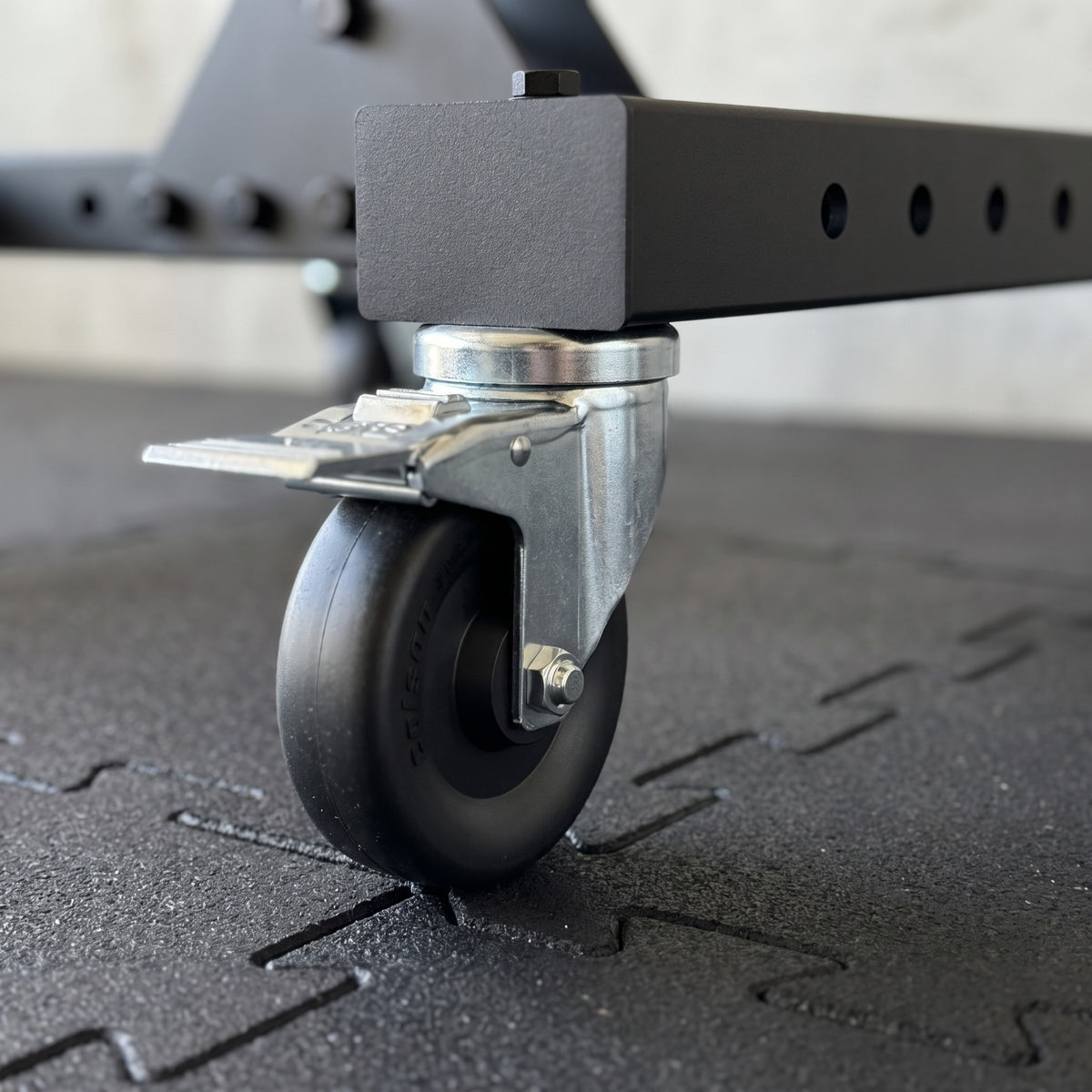

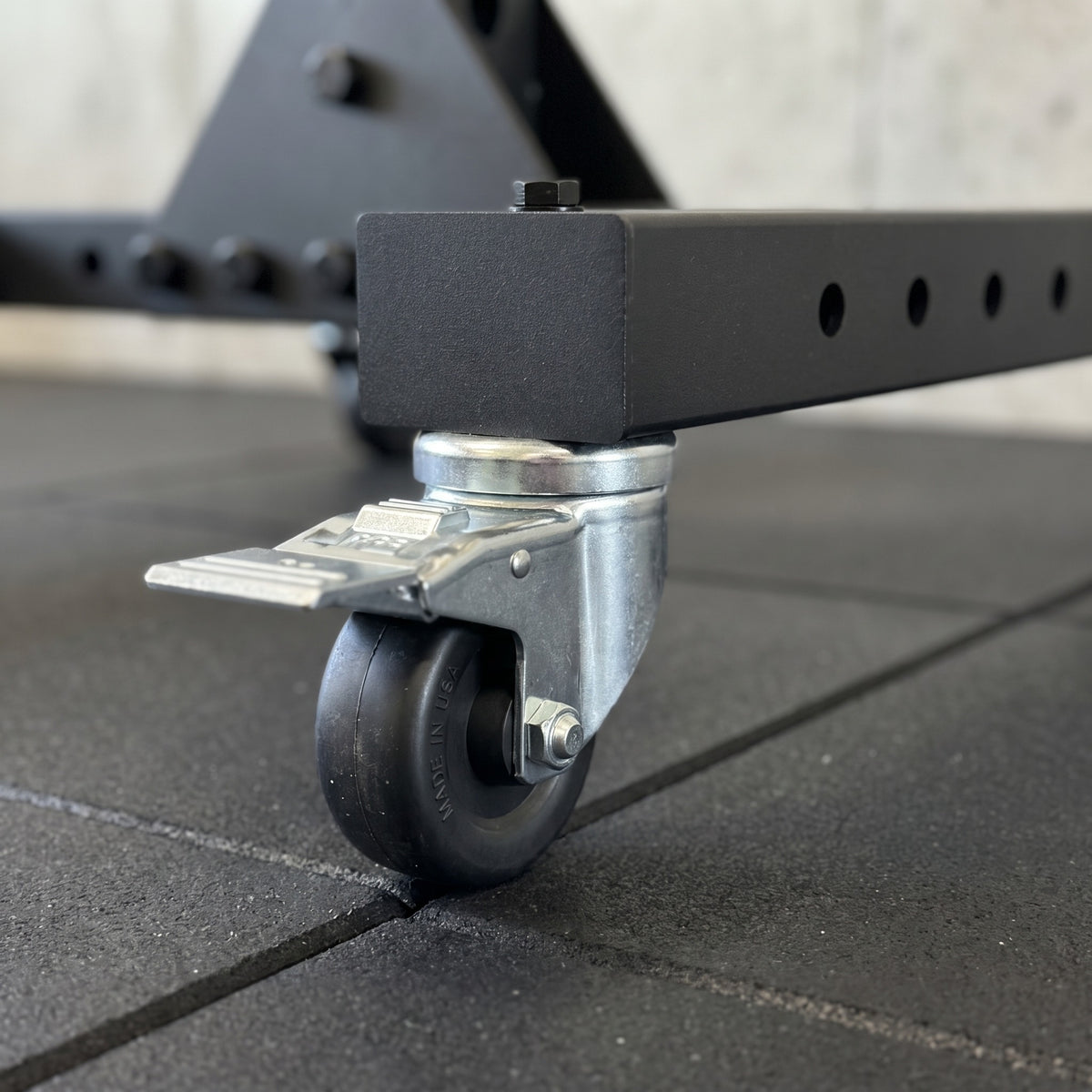

Hollow kingpin casters bolt through the existing holes at each end of the Delta legs. No drilling and no welding, and the end caps close the open tube ends for a clean finish.
Rated Well Above the Rack
A set of four is rated 1,080 lb with 3" wheels or 1,200 lb with 4" wheels, comfortably above a Delta 10-Tier loaded with a full 5 to 50 lb set.
Choose Your Height

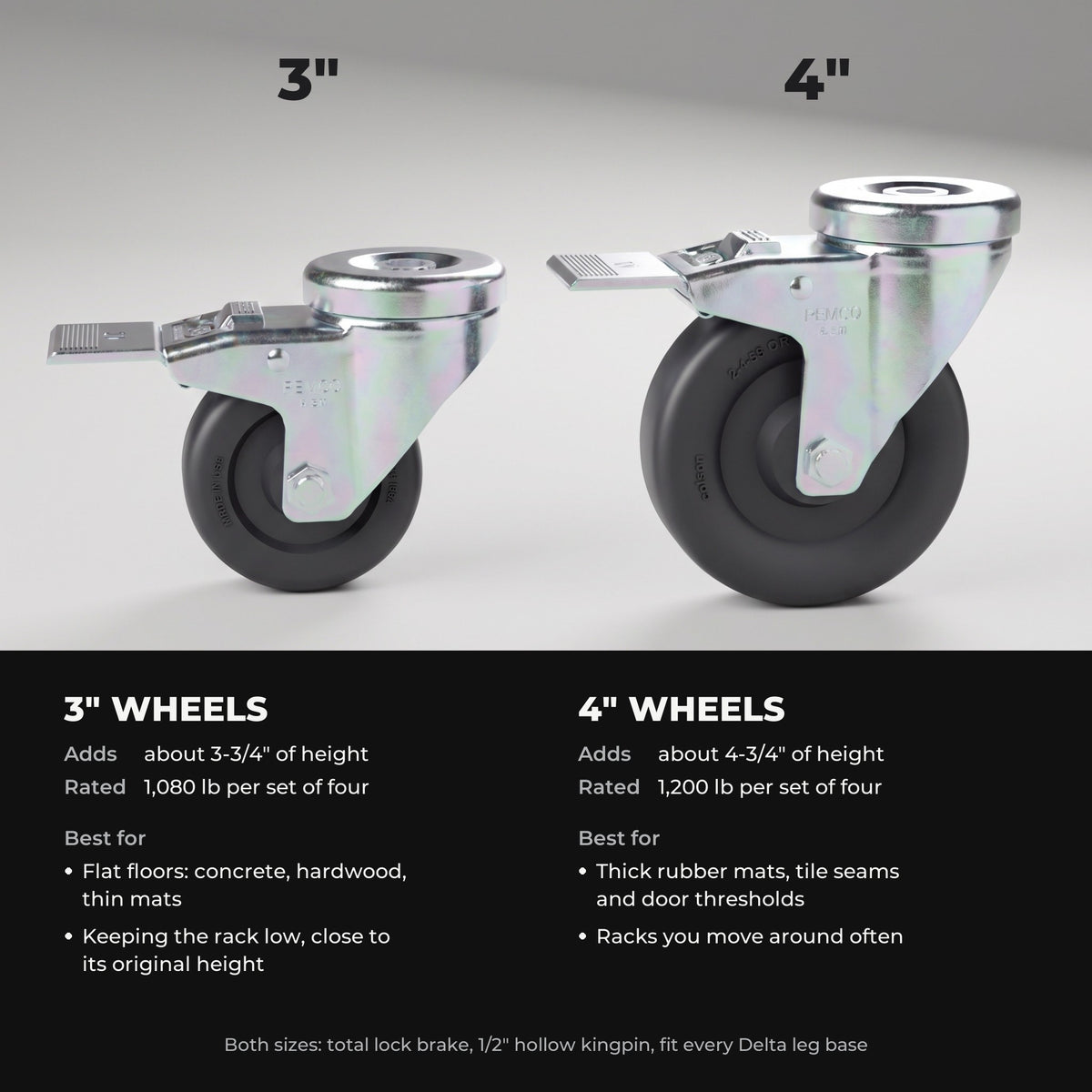

3" wheels add about 3-3/4" to the rack and keep it low. 4" wheels add about 4-3/4" and roll a little easier over mats, thresholds and floor seams.
Built by Colson
Pemco A-Line casters from Colson: zinc plated steel, Delrin wheel bearings and 70D polyolefin wheels, tested to ANSI-ICWM:2018 and rated from -40 to 180 degrees F.
Quick Install
Pull the rubber feet, bolt in the four casters with the black 3/8" hardware and tap in the end caps. Two 9/16" wrenches and a rubber mallet are all it takes.
| Caster | Colson Pemco A-Line, total lock brake, 1/2" hollow kingpin |
| 3" Kit | AS30H1PODTL: 3" x 1-1/4" wheel, 270 lb per caster, 4-1/8" mounting height |
| 4" Kit | AS40H1PODTL: 4" x 1-1/4" wheel, 300 lb per caster, 5-1/8" mounting height |
| Set Rating | 1,080 lb (3") or 1,200 lb (4") |
| Raises the Rack | About 3-3/4" (3") or 4-3/4" (4") |
| Swivel Radius | 4-7/16" |
| Wheel | Polyolefin, 70D, Delrin bearing |
| Finish | Zinc plated casters, black hardware |
| In the Box | (4) locking casters, (4) 3/8"-16 x 3-3/4" black hex bolts, (8) 3/8" black washers, (4) black nylon lock nuts, (4) end caps |
| Tools Needed | Two 9/16" wrenches (or socket and wrench), rubber mallet |
| Warranty | One-year manufacturer warranty on the casters |
Compatible With
| Fits | Delta 10-Tier, Delta Elite 8-Tier, Delta PK, Delta PLT, Delta Adjustable Dumbbell Rack, Delta Single Stand and the Delta 5-Tier and 6-Tier Horizontal Racks |
| Mounts | Through the existing holes at each end of the Delta legs |
| Replaces | The four rubber feet |
Frequently Asked Questions
Any Delta rack on the Delta leg base: the Delta 10-Tier, Delta Elite 8-Tier, Delta PK, Delta PLT, Delta Adjustable Dumbbell Rack, Delta Single Stand and the Delta 5-Tier and 6-Tier Horizontal Racks. One kit covers the four leg ends of one rack. The casters bolt through the existing holes at each end of the legs.
No. Pull the four rubber feet out of the leg ends, bolt a caster through each end hole with the included 3/8" hardware, and tap in the end caps.
Both are rated well above a loaded Delta rack.
3" keeps the rack lower, adding about 3-3/4". 4" adds about 4-3/4" and rolls more easily over mats and floor seams.
3" keeps the rack lower, adding about 3-3/4". 4" adds about 4-3/4" and rolls more easily over mats and floor seams.
Unload it first, then roll it on a flat, level floor. Lock all four casters before you load the rack or train with it.
Yes. The total lock brake locks both the wheel and the swivel with one press, so the rack does not roll or spin.
The casters are zinc plated steel in one finish, with black bolts, washers and lock nuts, so they suit every rack color.
