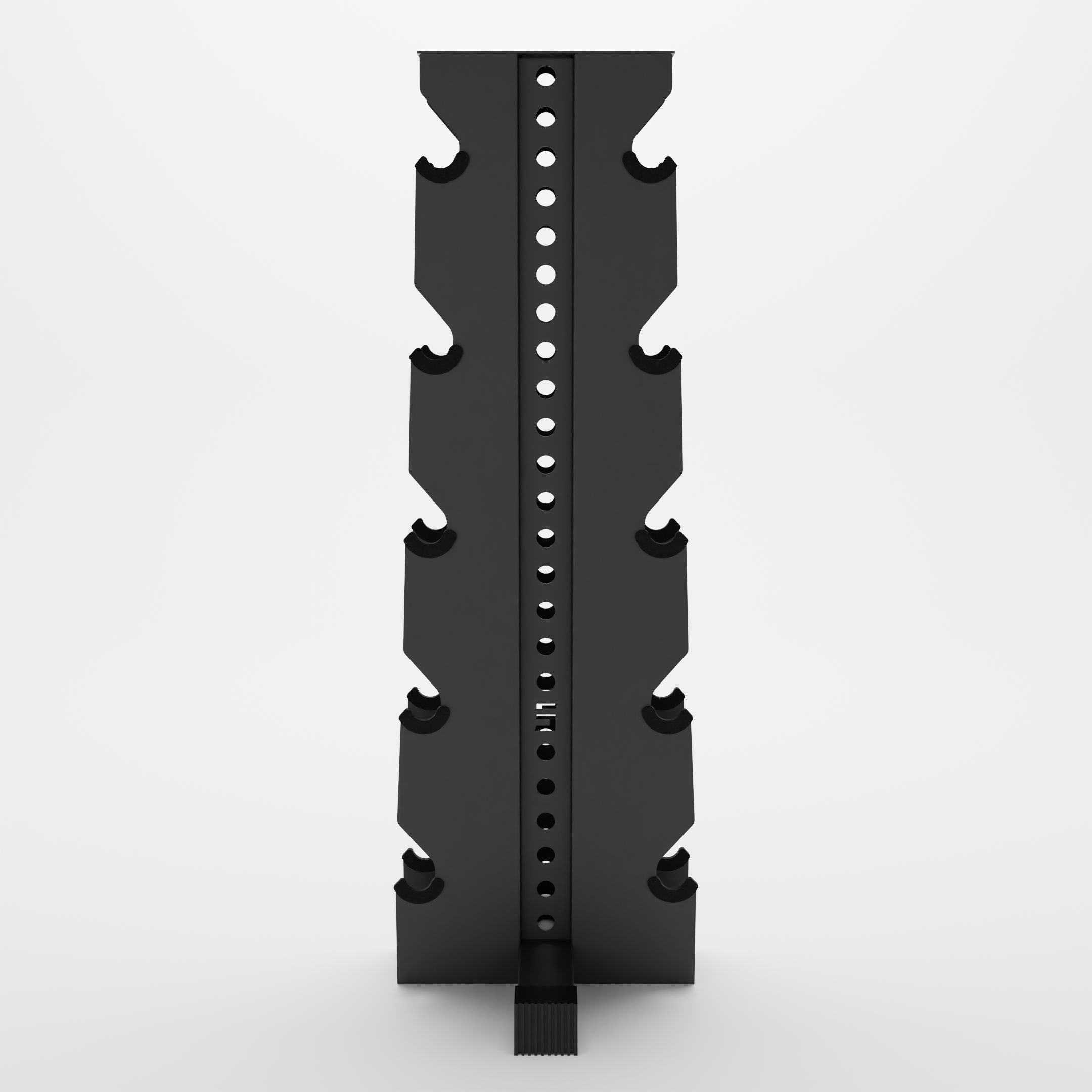

Alpha Elite | 5-Tier Vertical Dumbbell Storage Rack
Overview

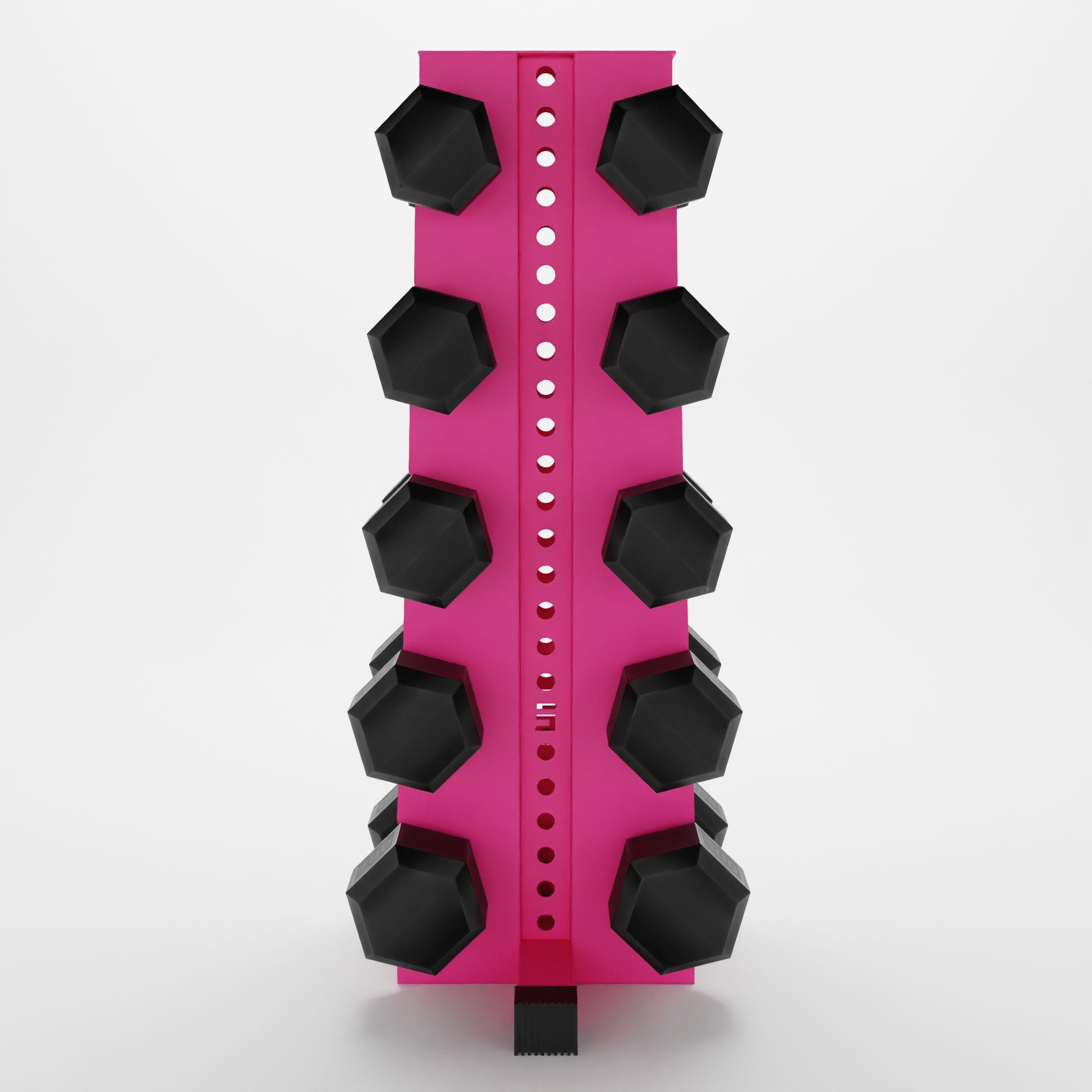

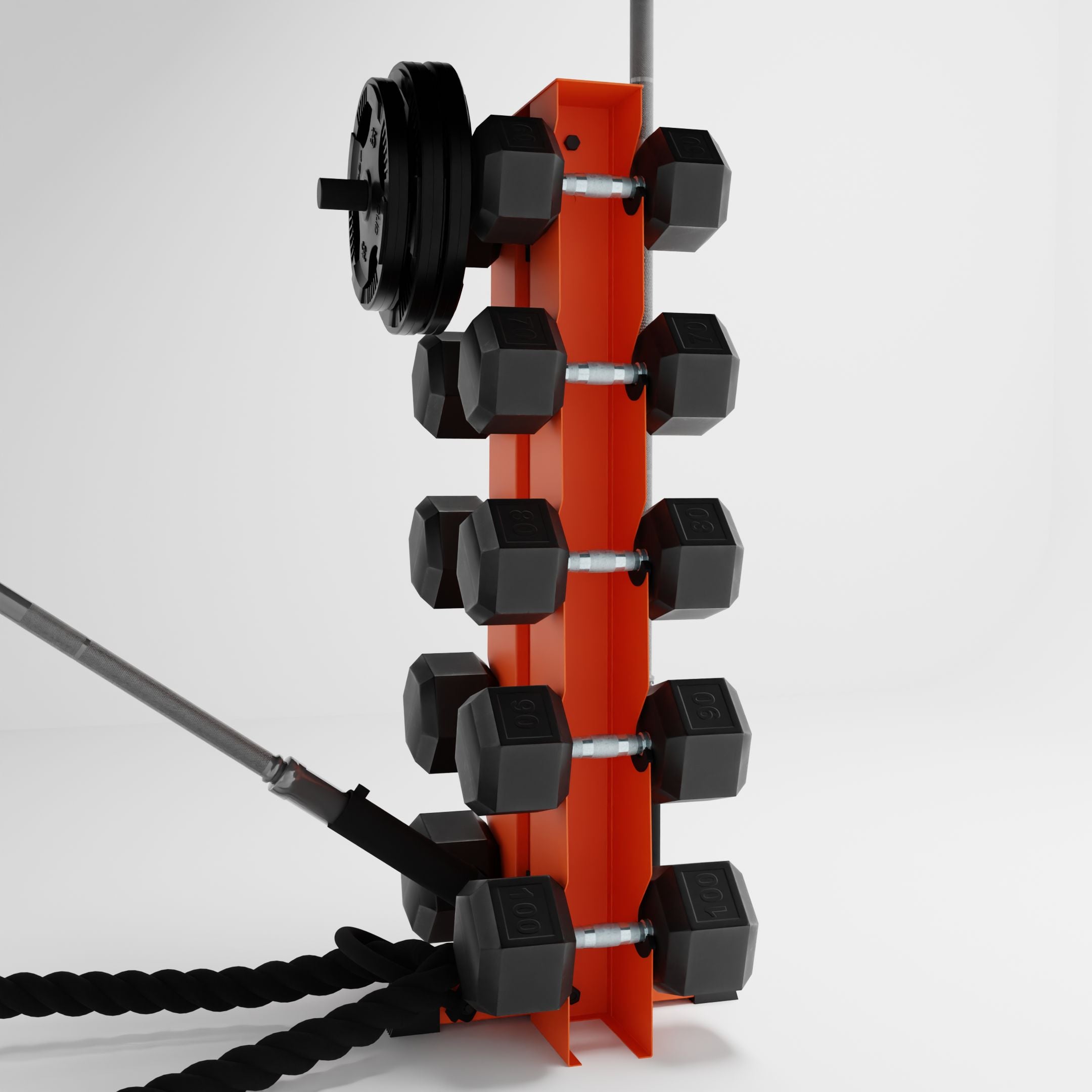

Our Alpha Elite dumbbell rack is purpose-built to hold any dumbbell—from a standard 5 lb to a 120 lb+ pro-style—with maximum clearance. Crafted from it's sturdy 3x3" steel upright, the Alpha Elite rack can also hold landmines, battle rope attachments, barbell holders, and plate holders.
Use our Dumbbell Configuration Calculator how much space you'll have at each tier level.
*Popular colors are priced less to reflect higher production volume and lower manufacturing cost.
*Dumbbells not included
Will My Dumbbells Fit?
To ensure a safe, "clink-free" racking experience for dumbbells of all sizes, please follow these fitment guidelines for the Alpha Elite 5-Tier Rack:
Use our Dumbbell Configuration Calculator
Don't guess—calculate. Use our Dumbbell Configuration Calculator to verify your setup. By inputting your dumbbell diameters, you’ll see the precise available vertical space between your weights based on the Alpha Elite's specific 5-tier gap specs.
The Purpose of the Alpha Elite
The Alpha Elite is our "Universal Heavy-Hitter." While most racks force a trade-off between capacity and footprint, the Elite is engineered with massive vertical gaps to ensure that any dumbbell—from a standard 5 lb to a 120 lb custom pro-style—fits with maximum clearance. Whether you are building a specialized heavy rack or a versatile full-set station, the Elite provides the "air space" needed for efficient racking.
Important: Dumbbell diameters vary by brand and style. Generic hex dumbbells were used for our approximations. Do not rely on the weight alone—focus on the "Max Head Size" (Diameter) measurements provided below.
Alpha Elite Fitting Cheat Sheet (Benchmarks)
While the Alpha Elite is built for heavy-duty use, it is a versatile rack. The "Max" sizes below show the upper limits, but smaller dumbbells (5–50 lbs) fit perfectly with even more generous air space.
| Transition (Pairs) | Vertical Gap | Max Head Size (TOP) | Max Head Size (BOTTOM) | Vertical Space |
|---|---|---|---|---|
| Pair 1 to 2 | 10.88" | 3.0" – 8.25" (5–90 lb) | 4.0" – 8.25" (10–90 lb) | 2.63" |
| Pair 2 to 3 | 10.84" | 4.0" – 8.25" (10–90 lb) | 4.5" – 8.69" (15–100 lb) | 2.37" |
| Pair 3 to 4 | 10.91" | 4.5" – 8.69" (15–100 lb) | 5.0" – 8.75" (20–110 lb) | 2.19" |
| Pair 4 to 5 | 10.88" | 5.0" – 8.75" (20–110 lb) | 5.5" – 9.0" (30–120 lb+) | 2.00" |
Chart Terminology & Fitment Definitions
Transition: Identifies the specific pair of tiers being measured (e.g., Pair 7 to 8 is the space between the seventh tier and the bottom tier).
Vertical Gap: The fixed distance between two tiers on the rack frame.
Max Head Size (Top): The largest allowable diameter (width of the head) for the dumbbell on the upper tier of the pair.
Max Head Size (Bottom): The largest allowable diameter for the dumbbell on the lower tier of the pair.
Vertical Space: The "daylight" remaining between dumbbell heads once placed on the rack. A result of 1.0" or more is perfect.
Universal Fit: Because the gaps are consistently large, you aren't forced to load "Light-to-Heavy." You have the freedom to organize your rack however you prefer.
Features & Benefits

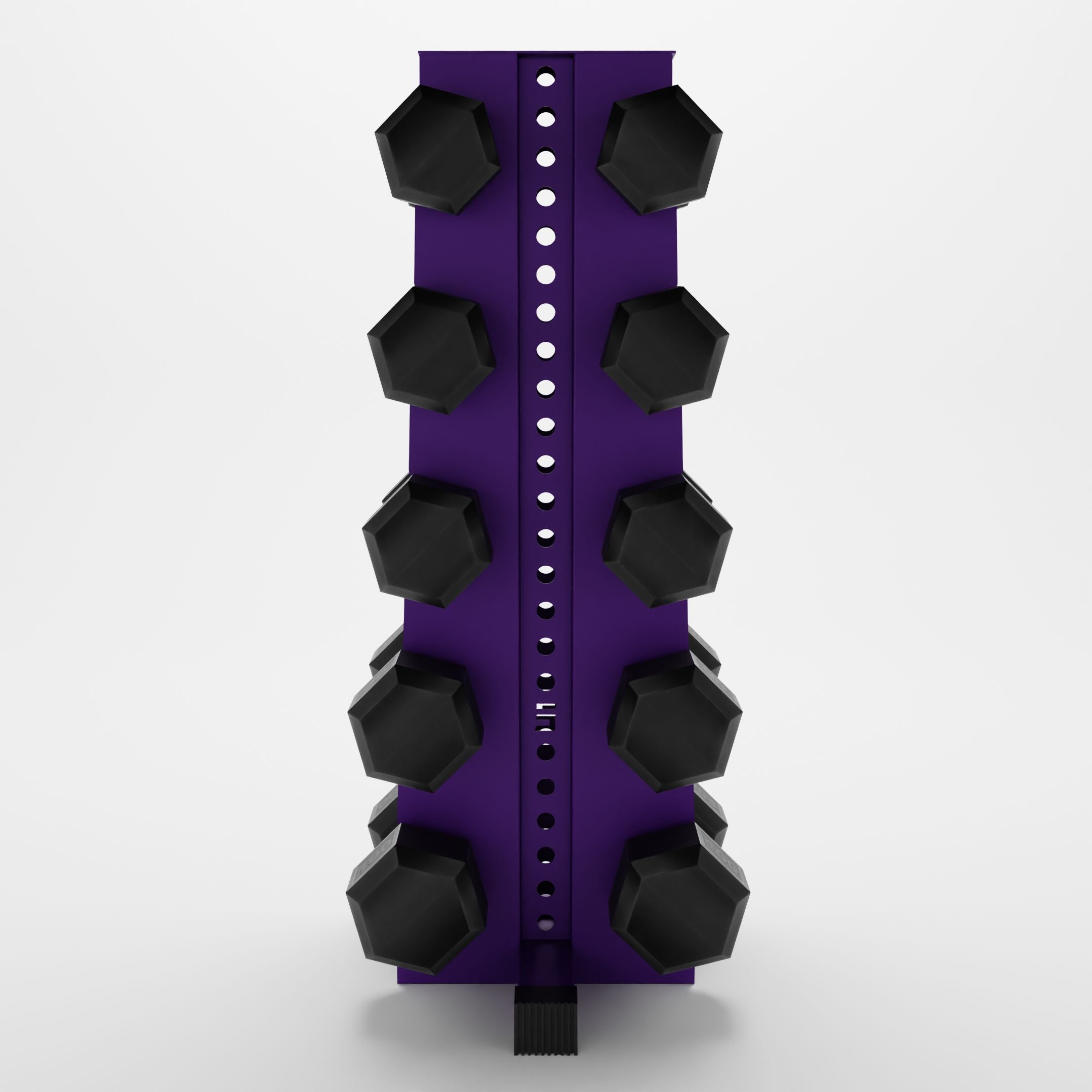

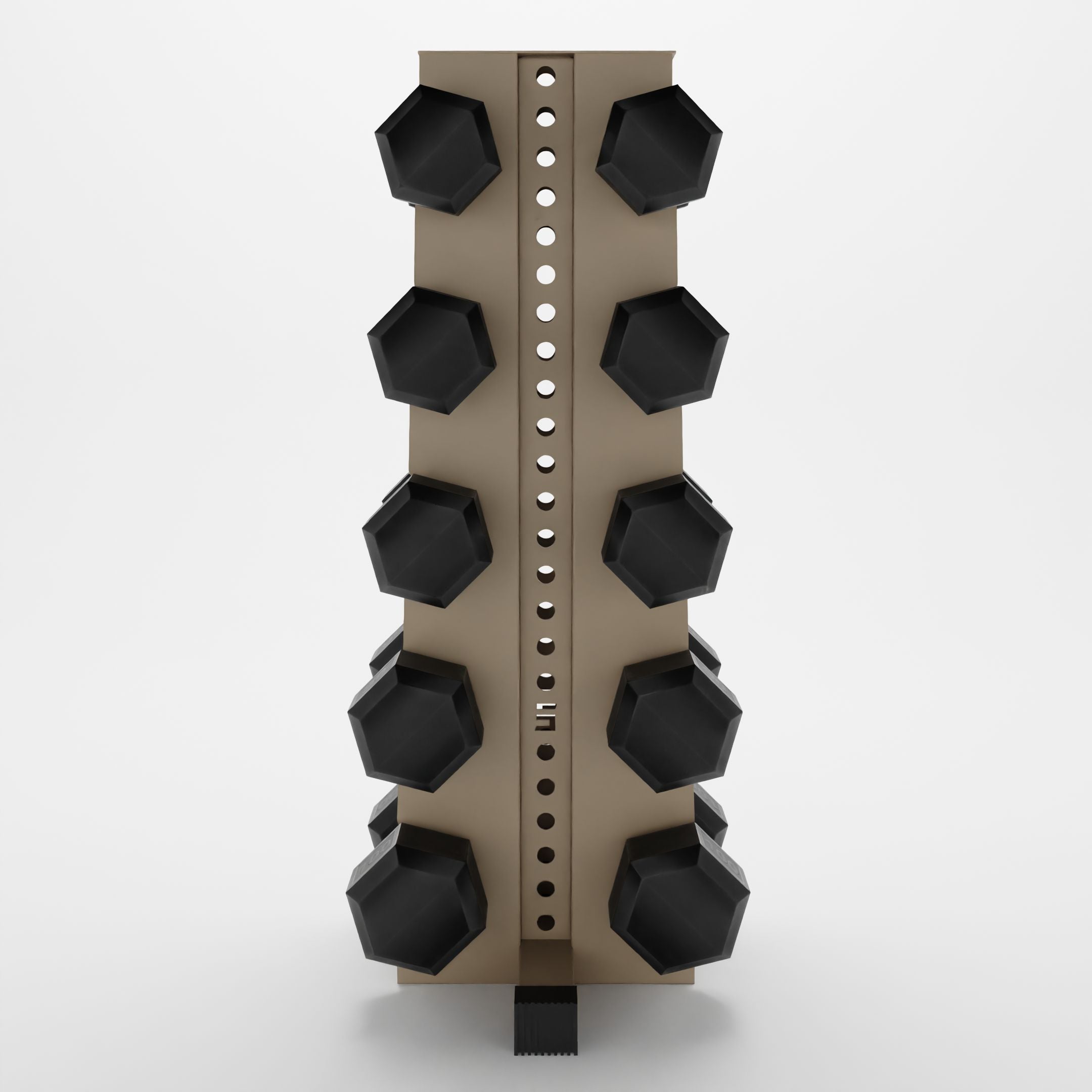

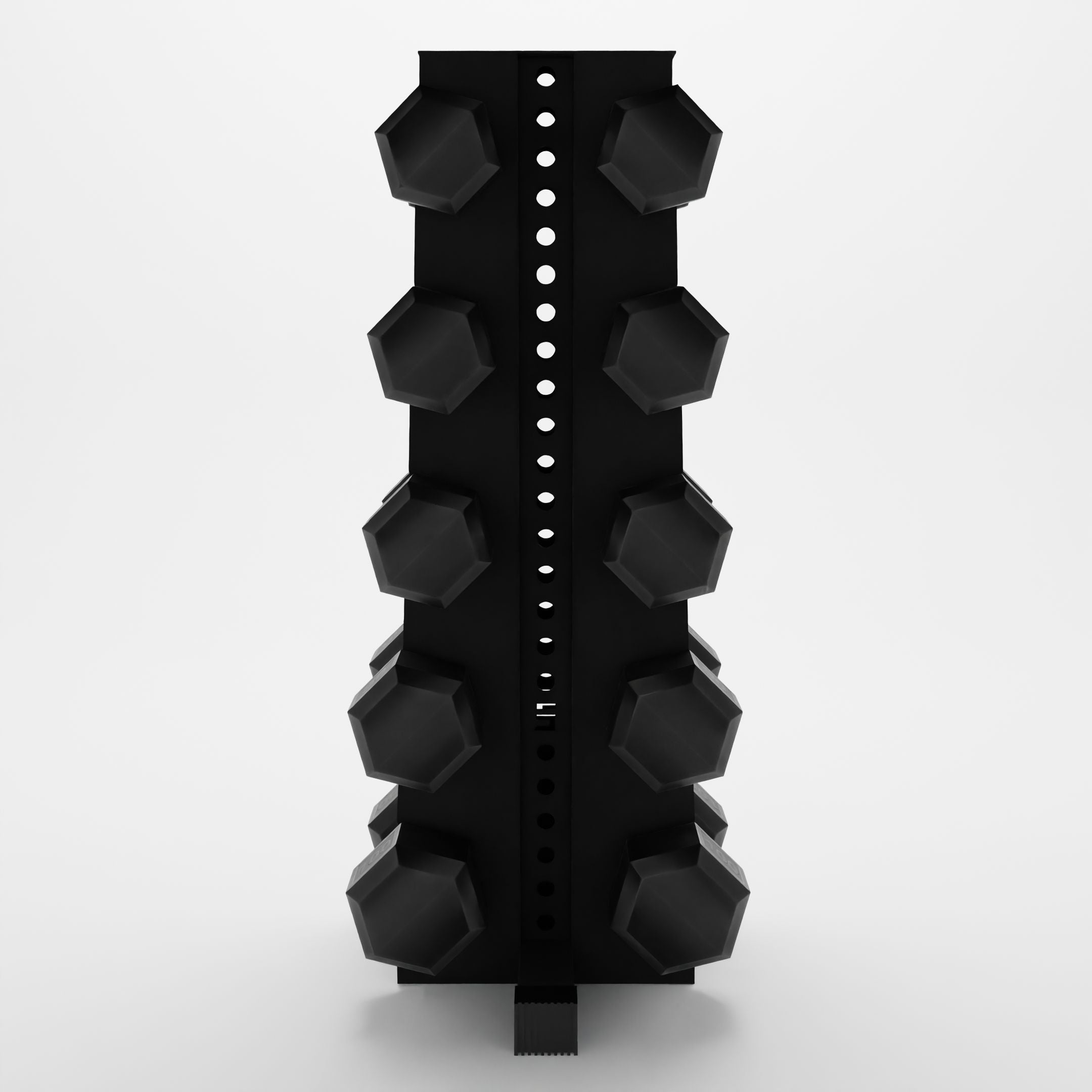

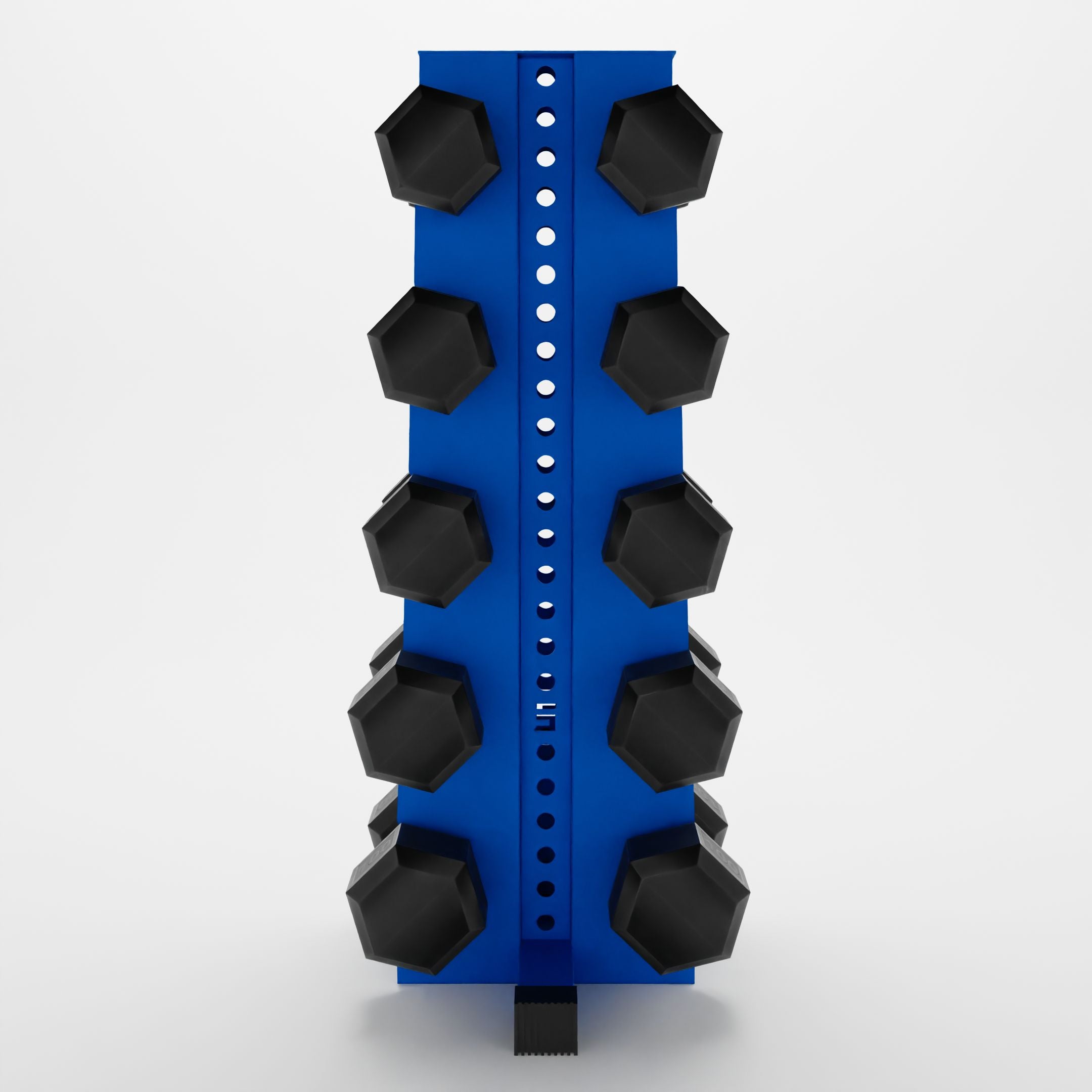

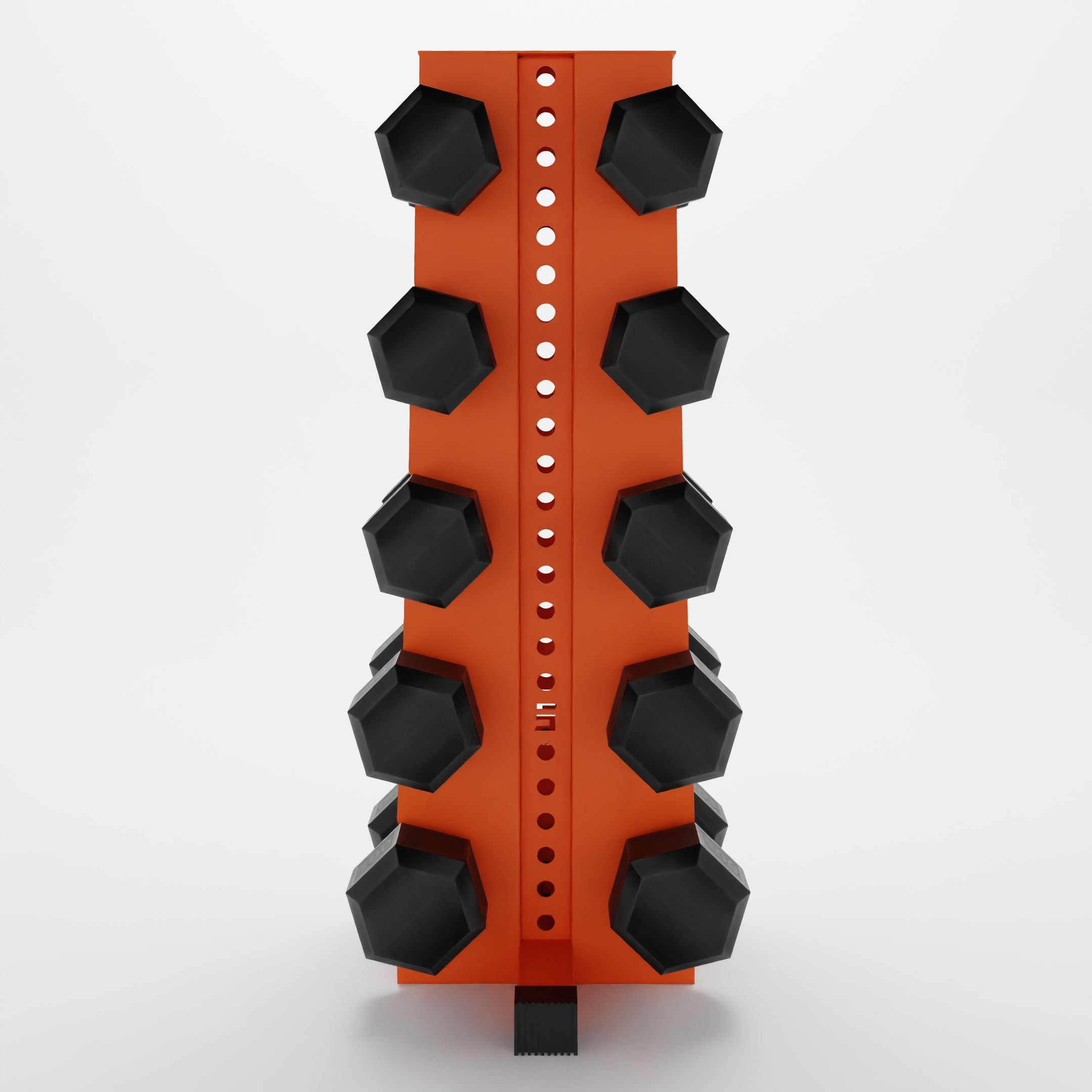

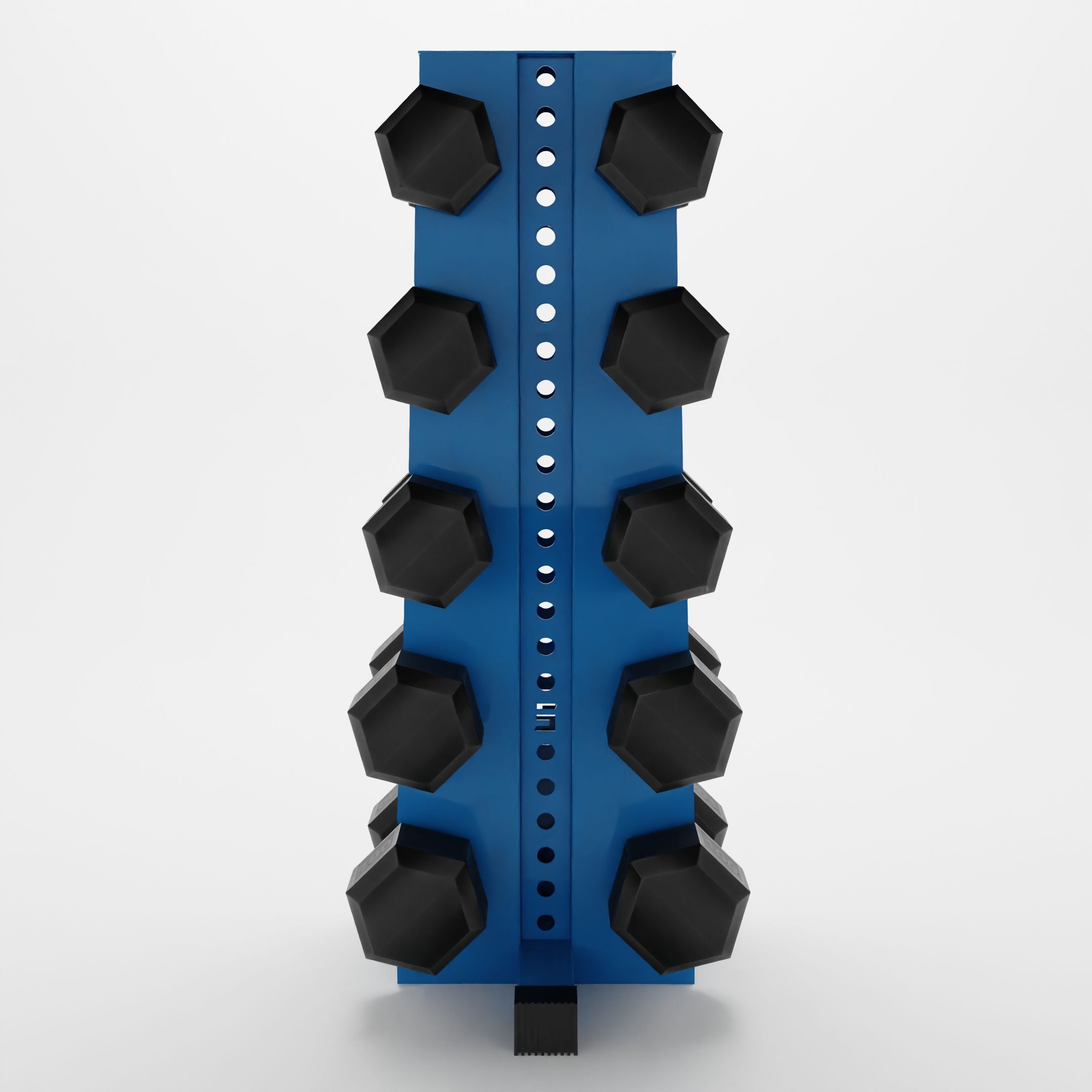

5-Tier Support: Our Alpha Elite rack holds five pairs of hex dumbbells. You can tore heavy dumbbells, anywhere from 50-150 lb.

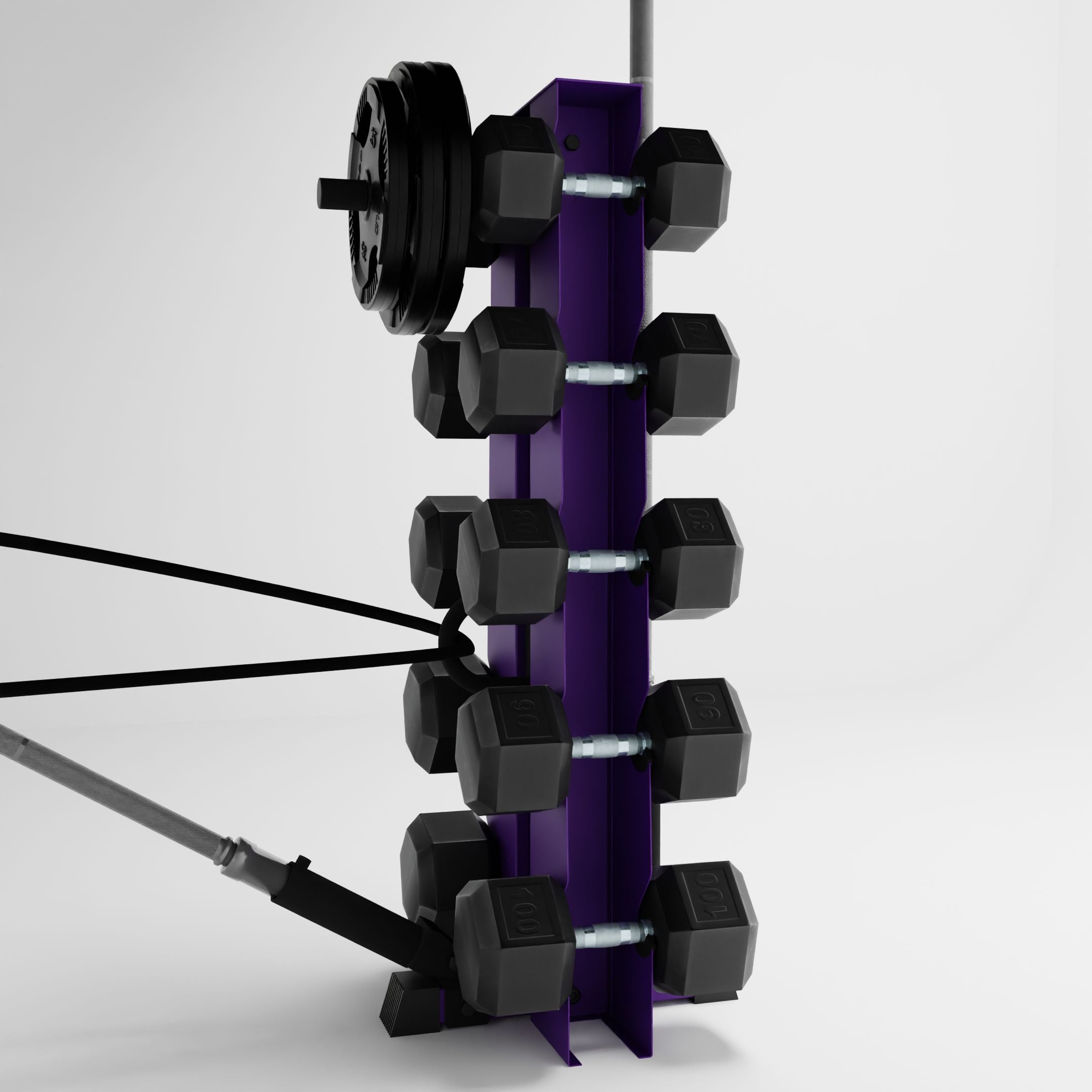

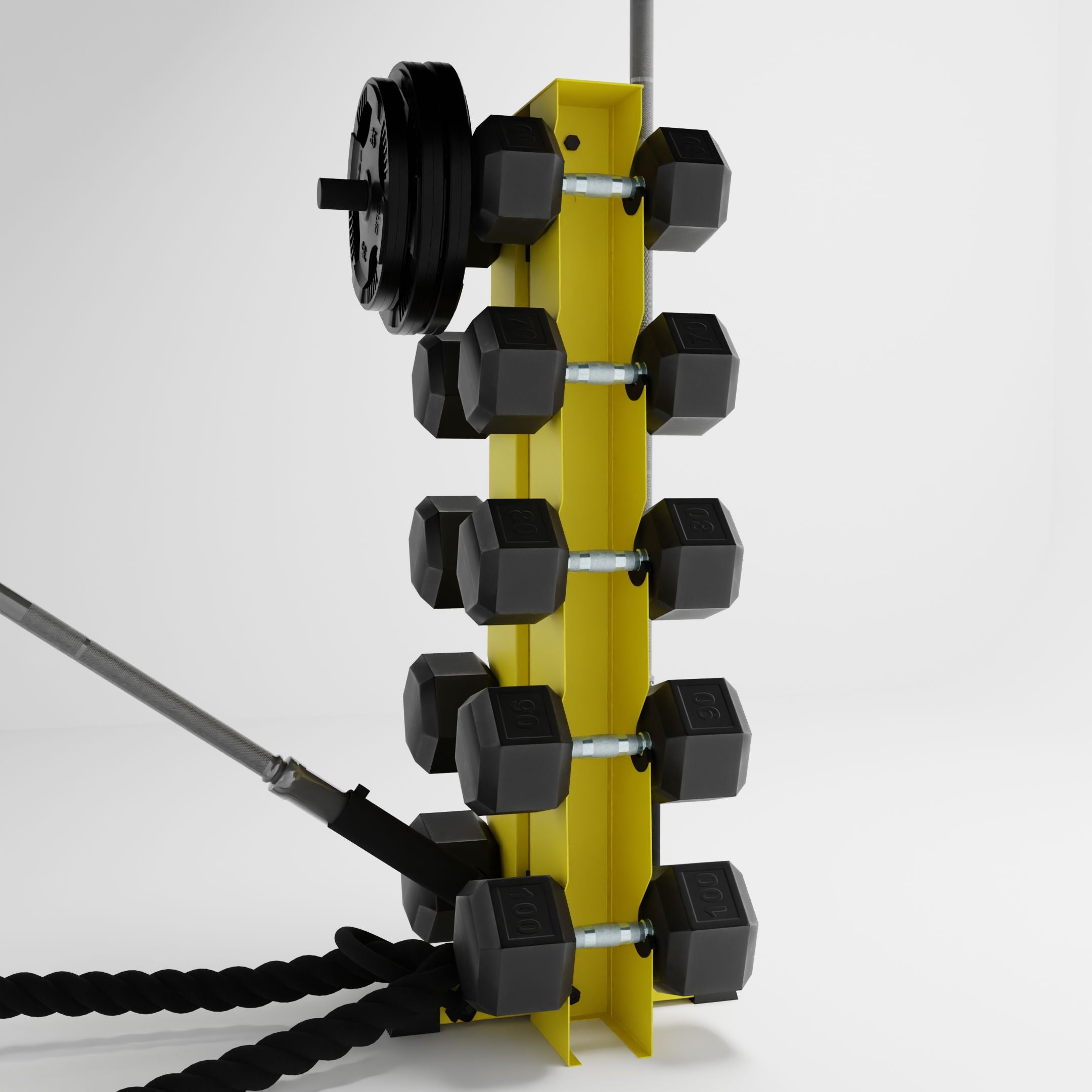

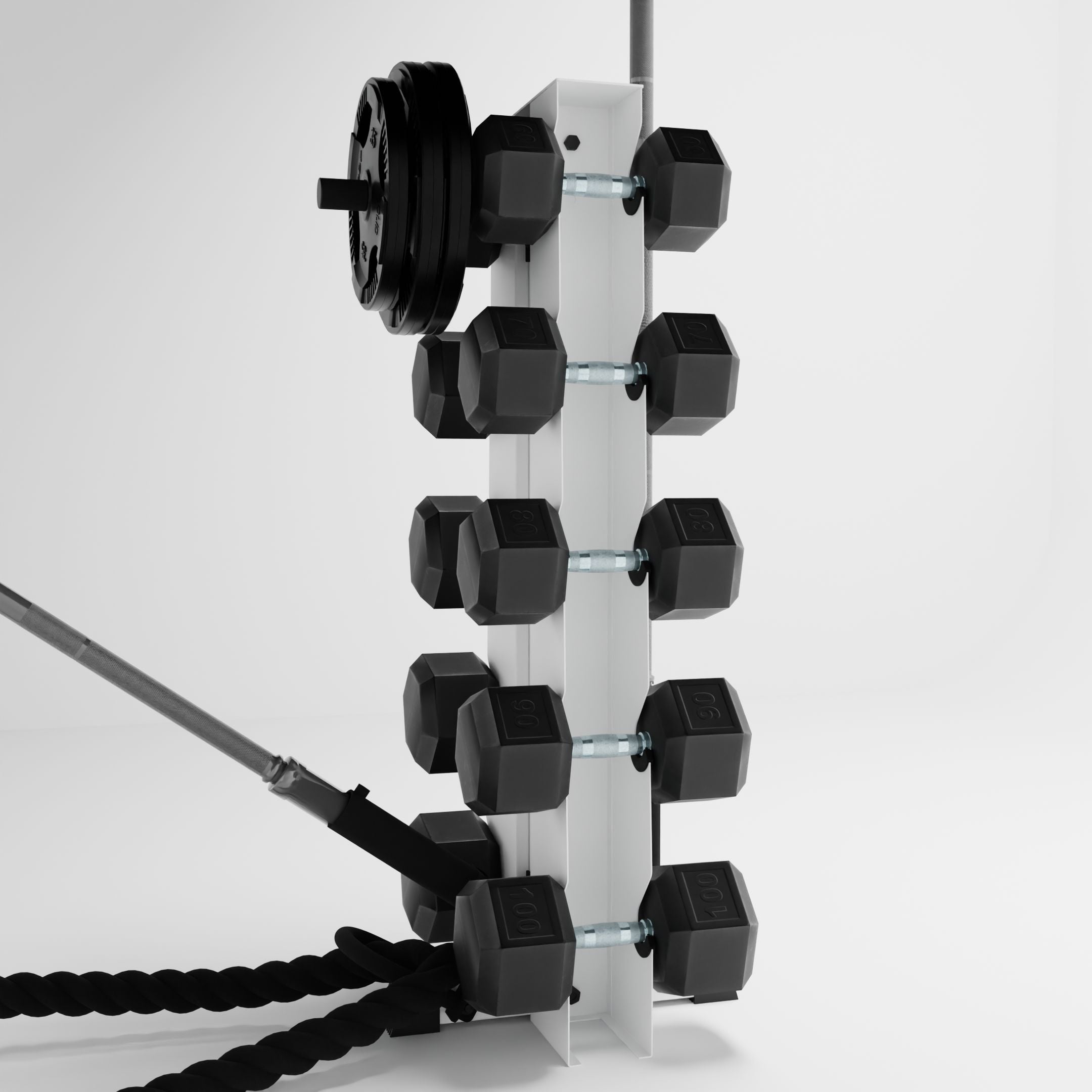

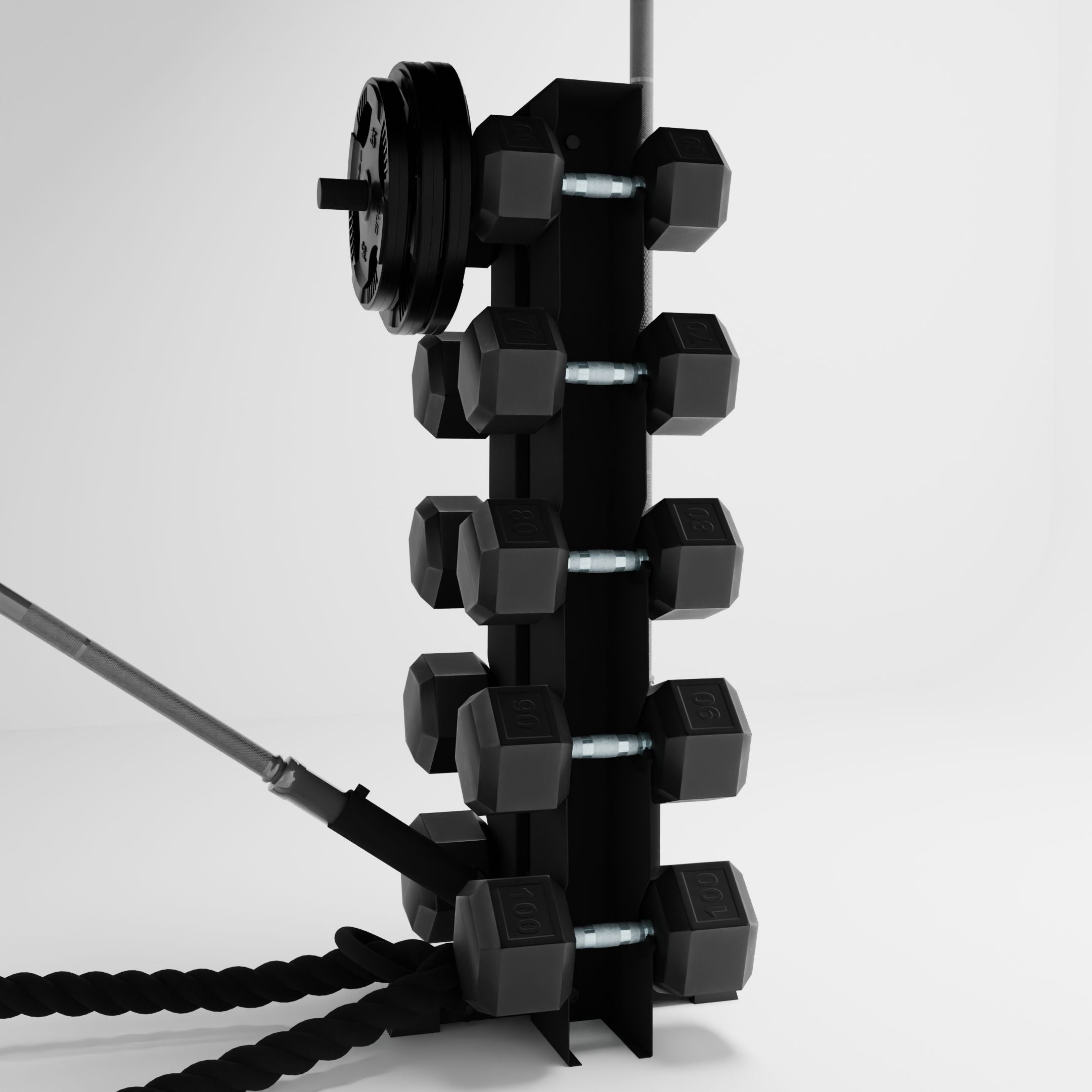

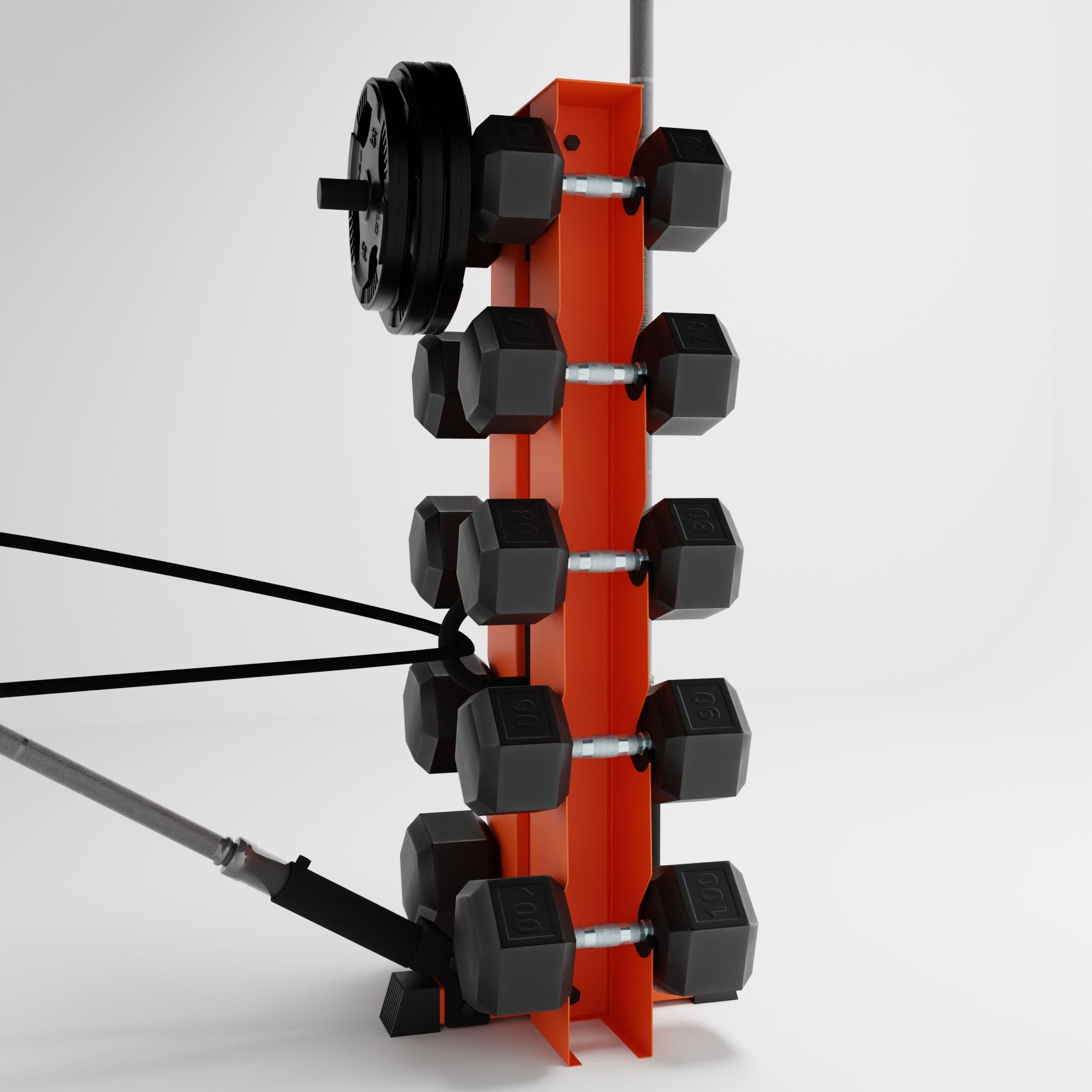

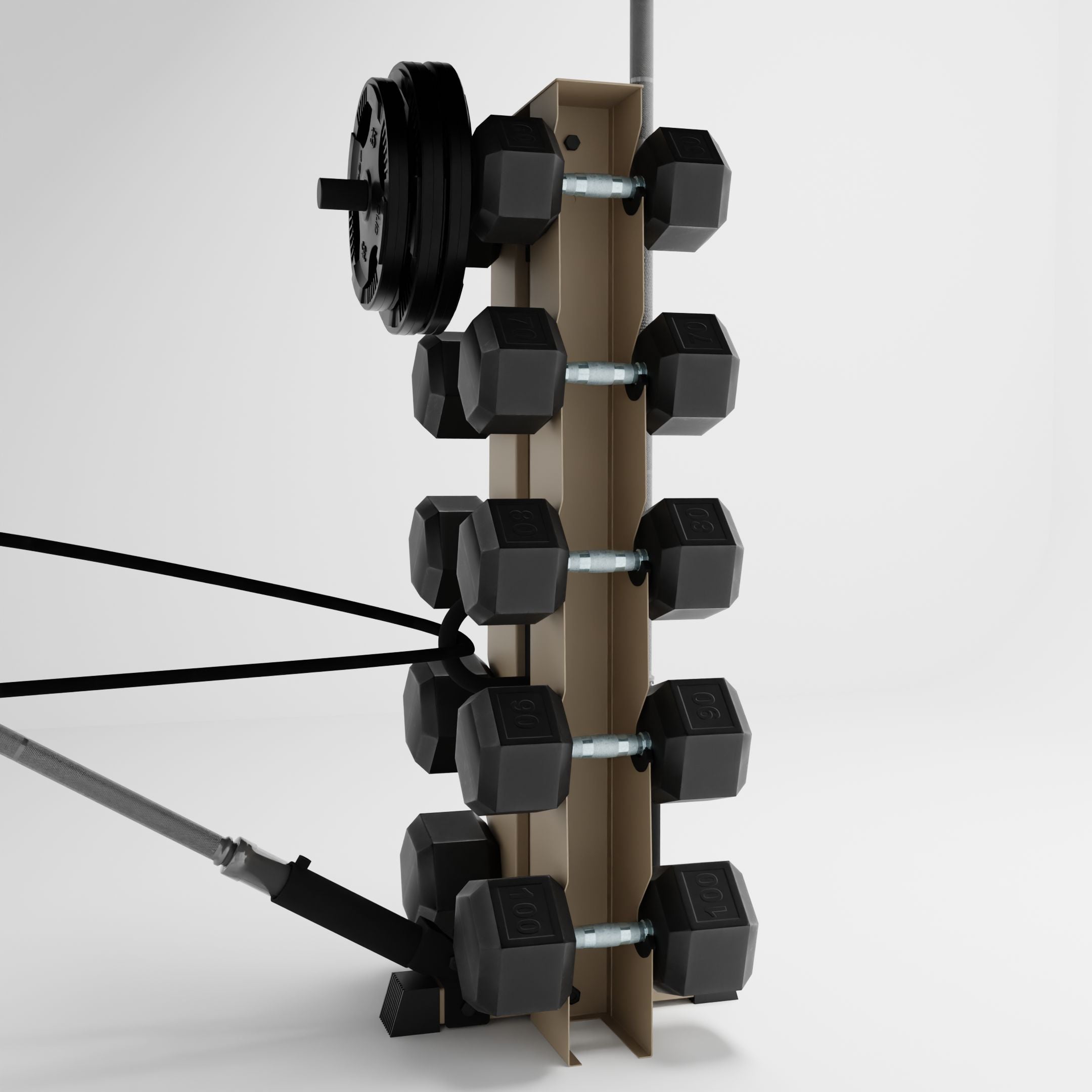

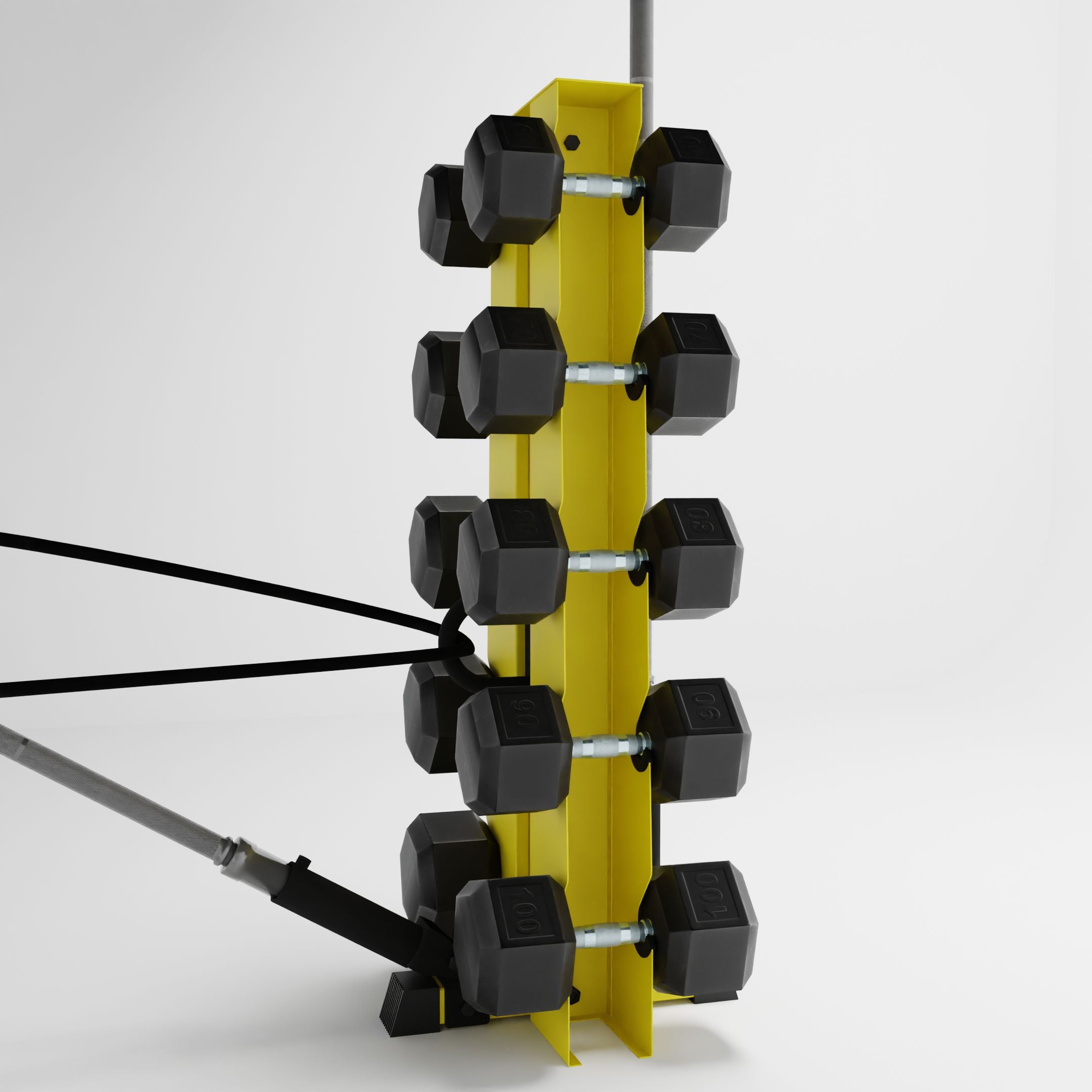

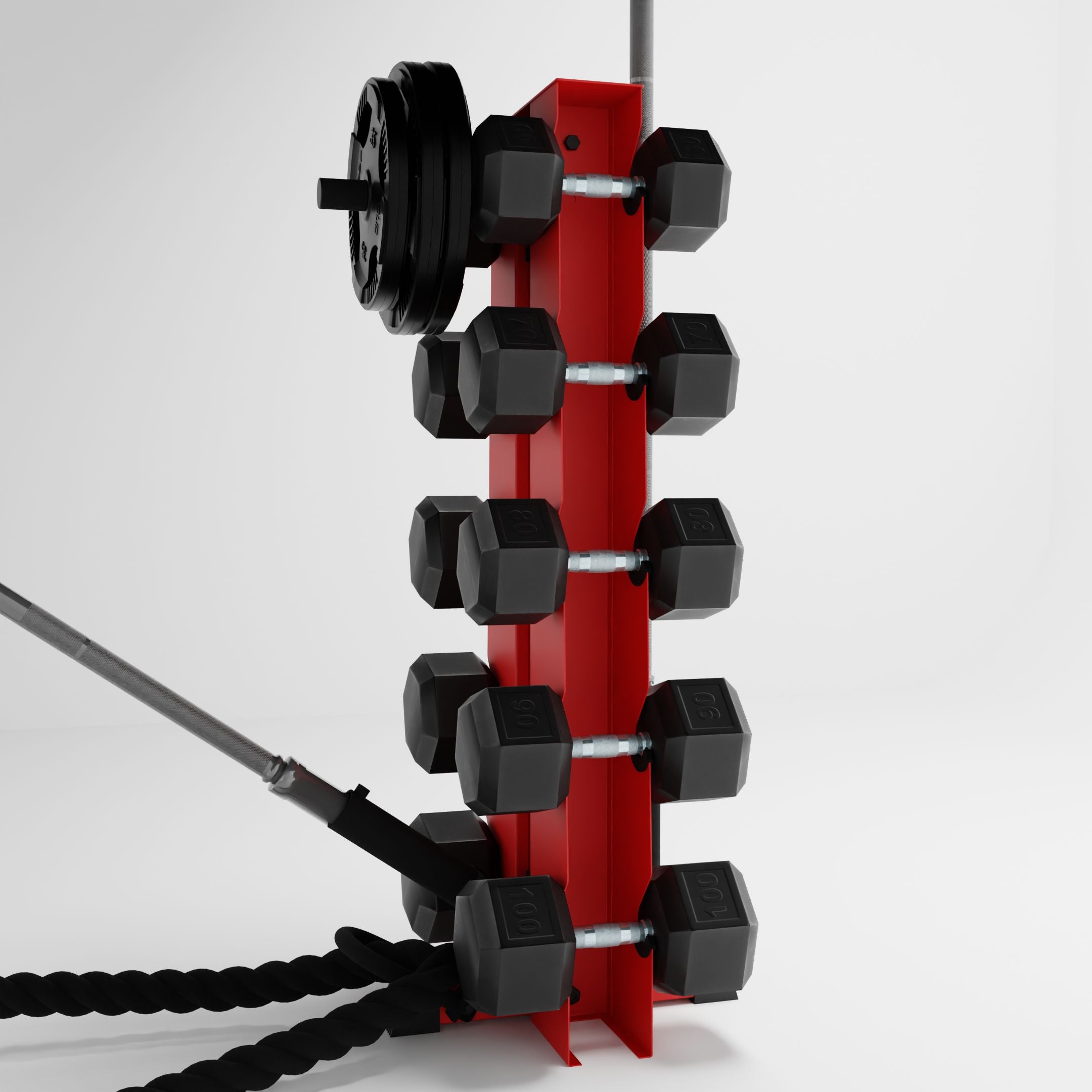

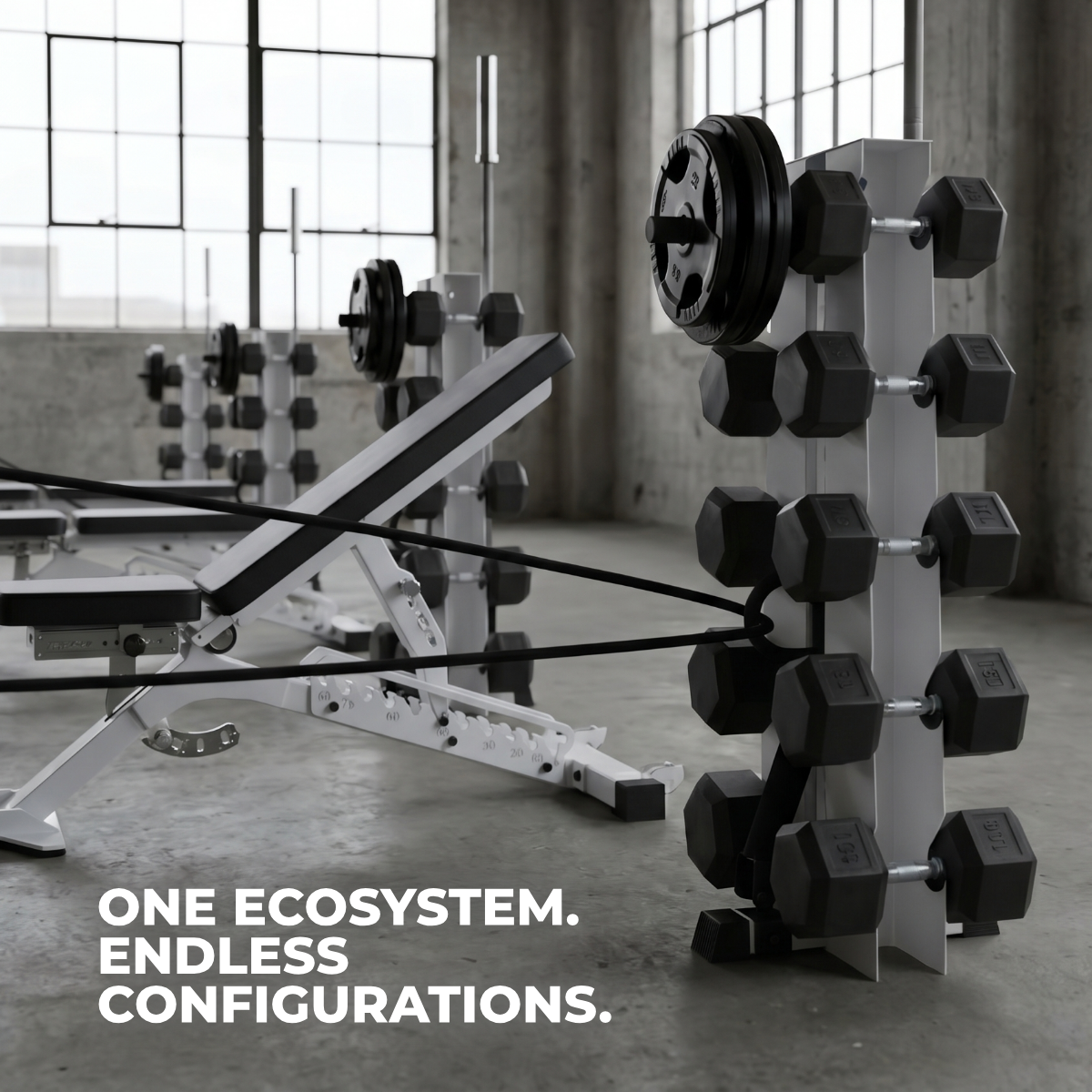

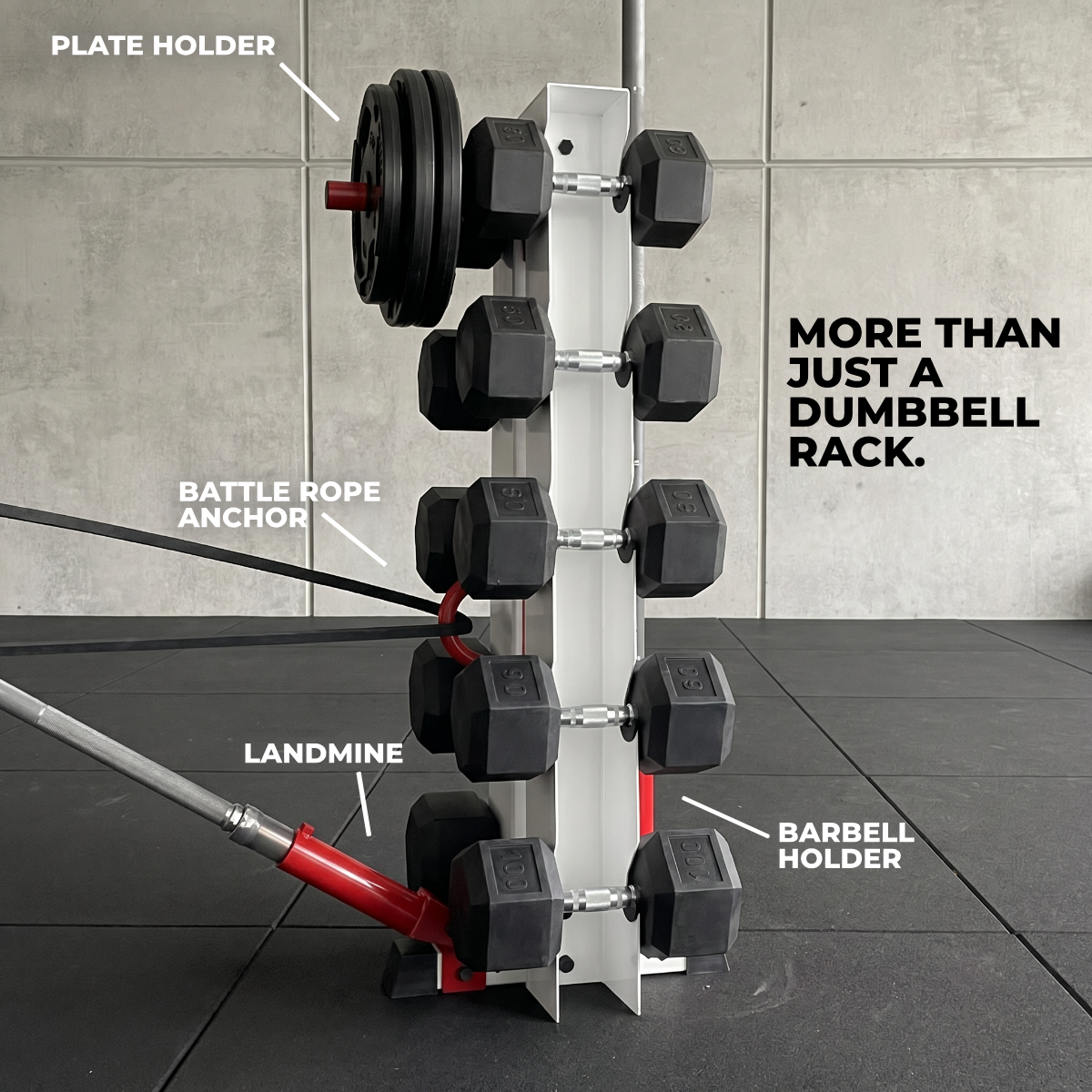

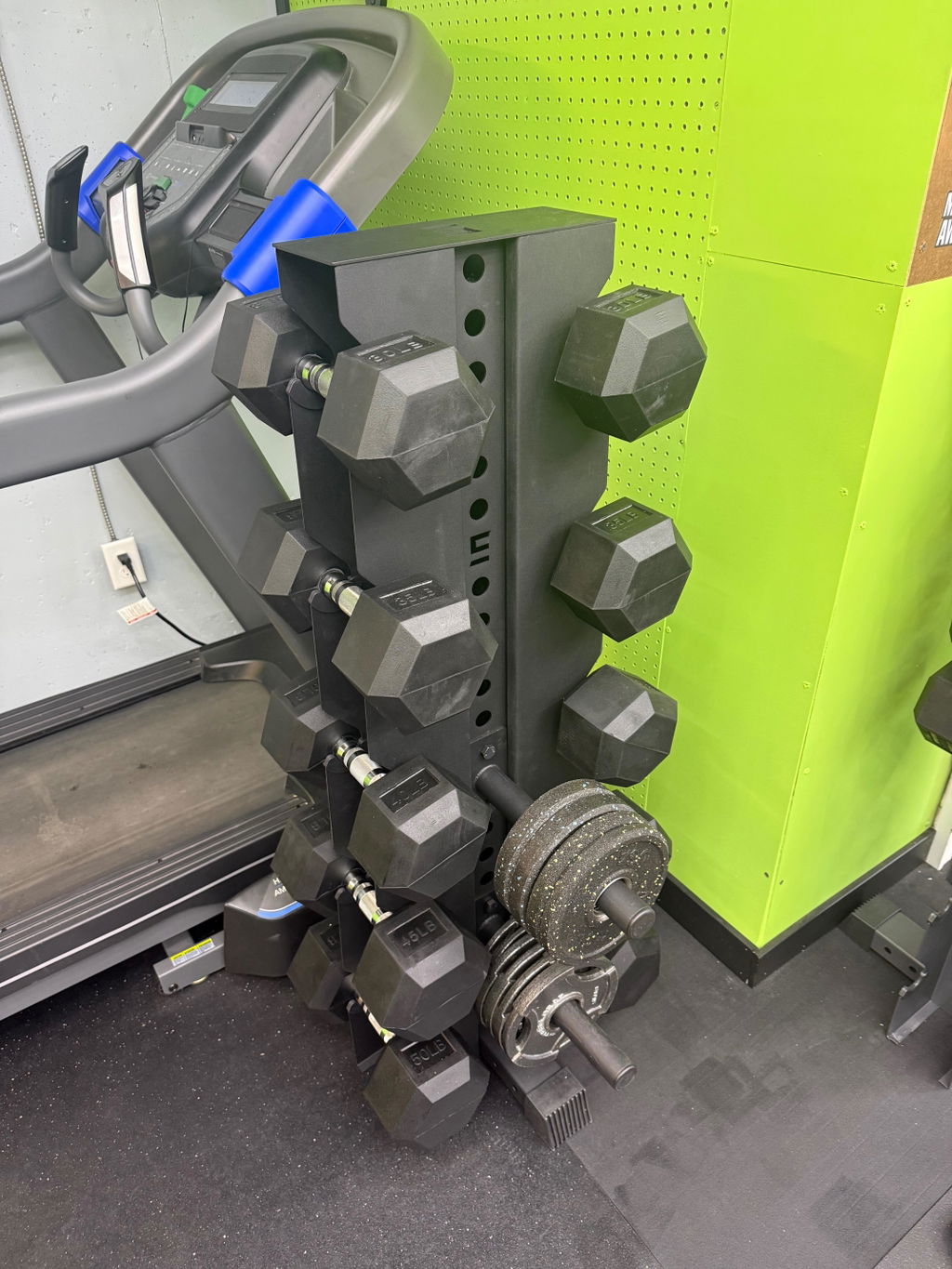

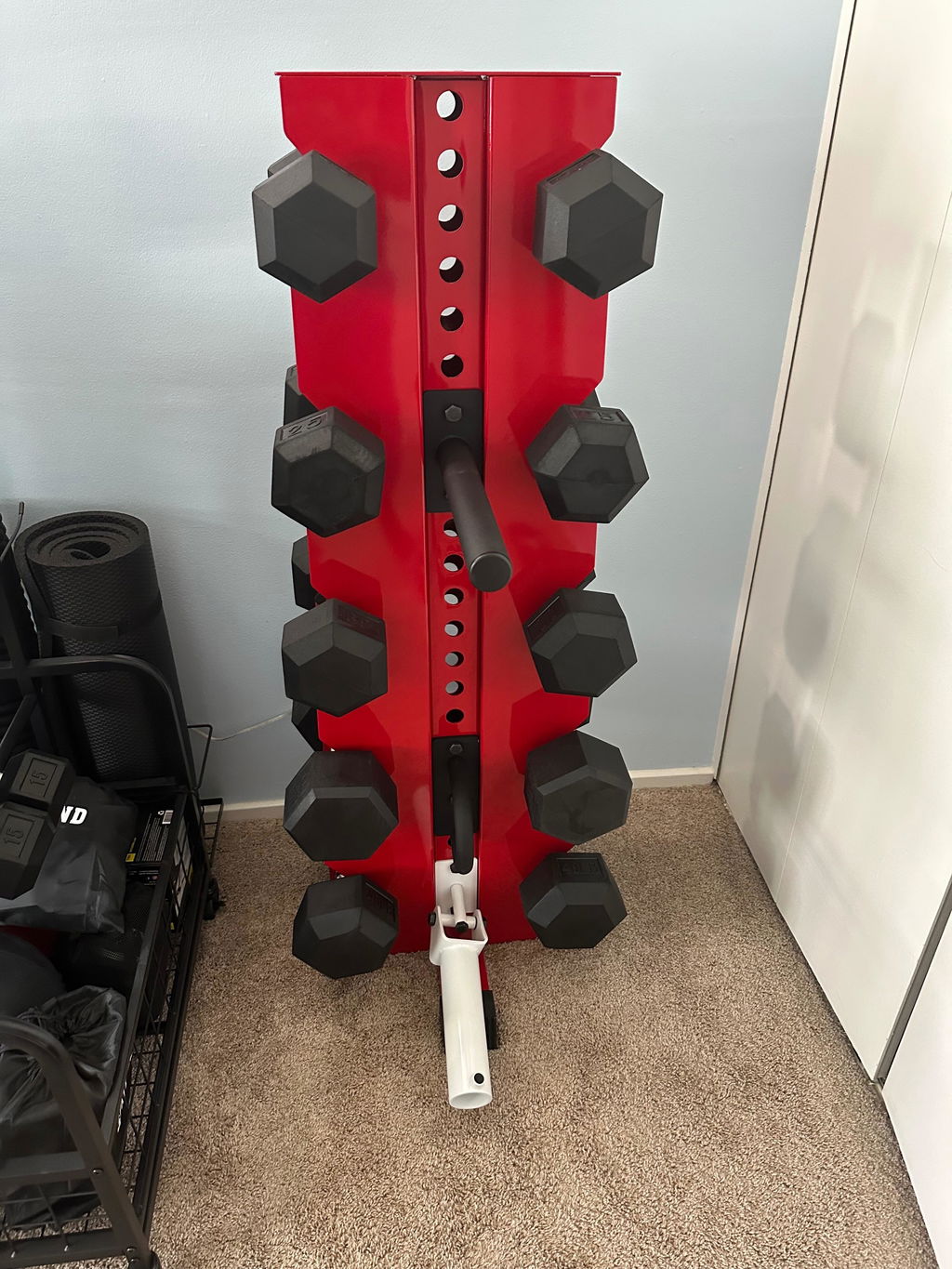

Hold Accessories: Our Alpha Elite rack upright allows you to store landmines, battle rope attachments, barbell holders, and plate holders - all with the exact same footprint.
Solid and Dependable: The 11 gauge steel frame guarantees outstanding stability, and rubber feet are included to prevent any sliding or floor damage, particularly on hardwood or tile surfaces.

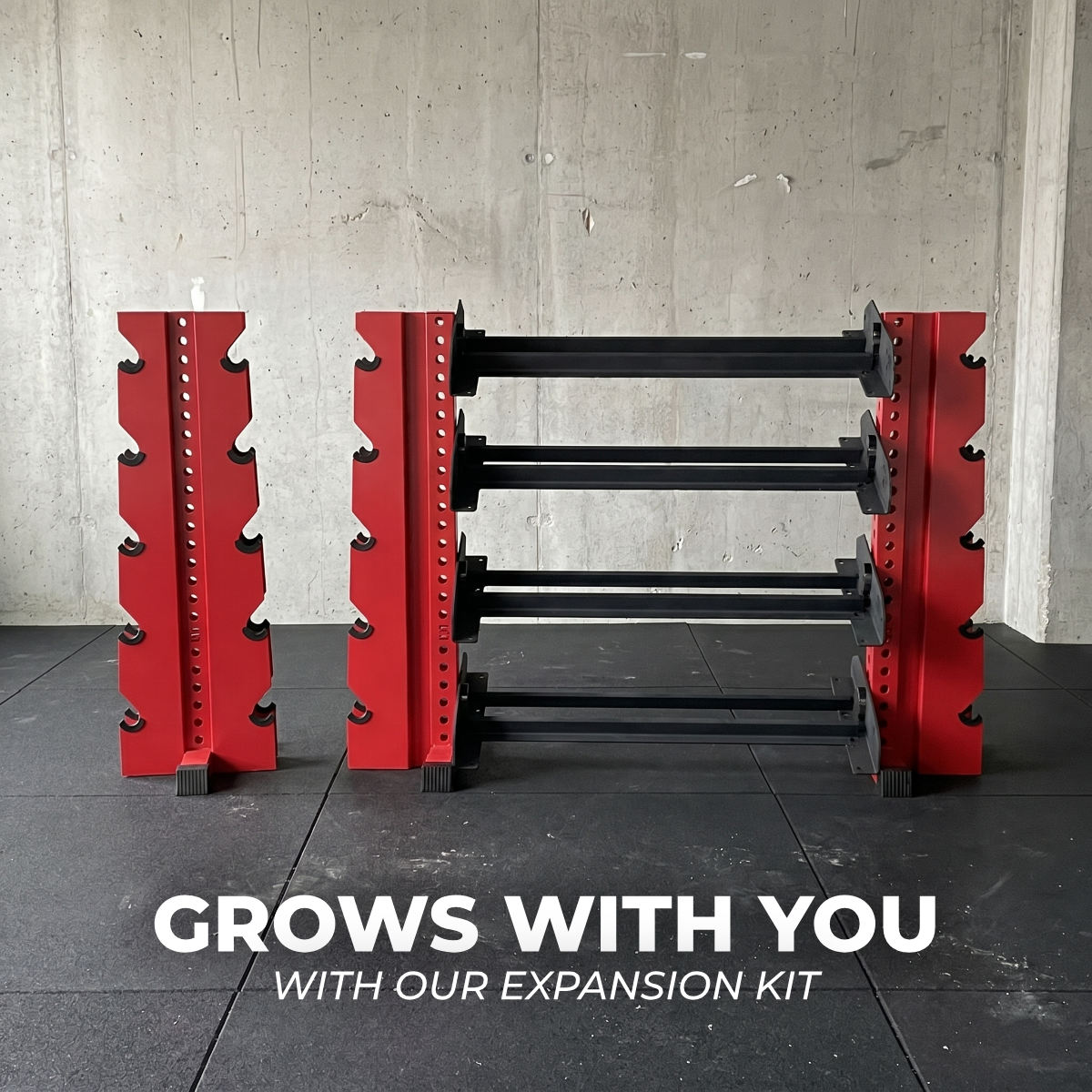

Expand Into a Horizontal Rack When Ready: With its modular functionality, our Alpha Elite rack also converts into a 3-tier full size horizontal rack with our Expansion Kit.

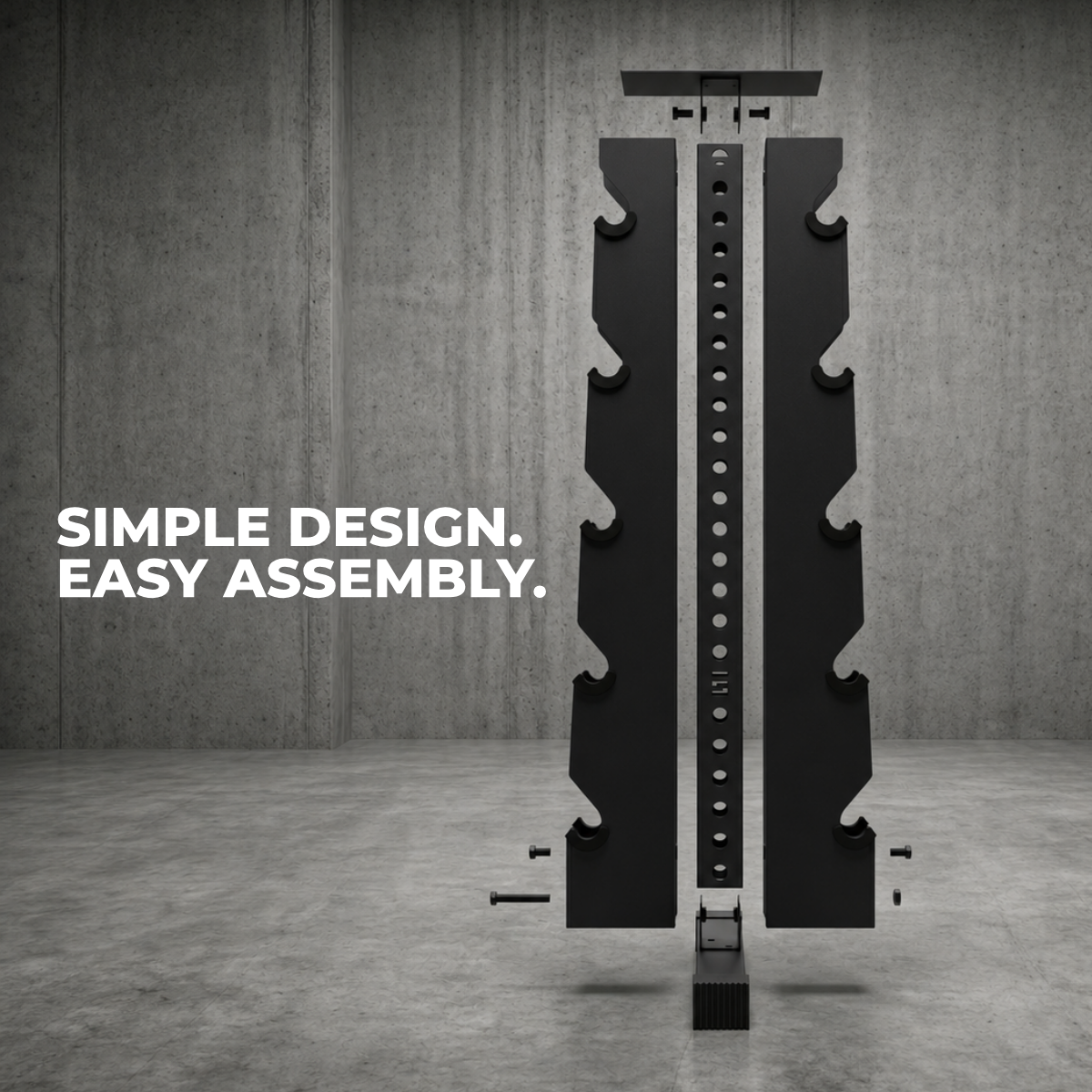

Easy to Assemble: The simplicity of our dumbbell rack is its charm; this rack can be set up in just a few minutes with all the tools you need included in your purchase.
Specifications
Model Number: DBRK5E

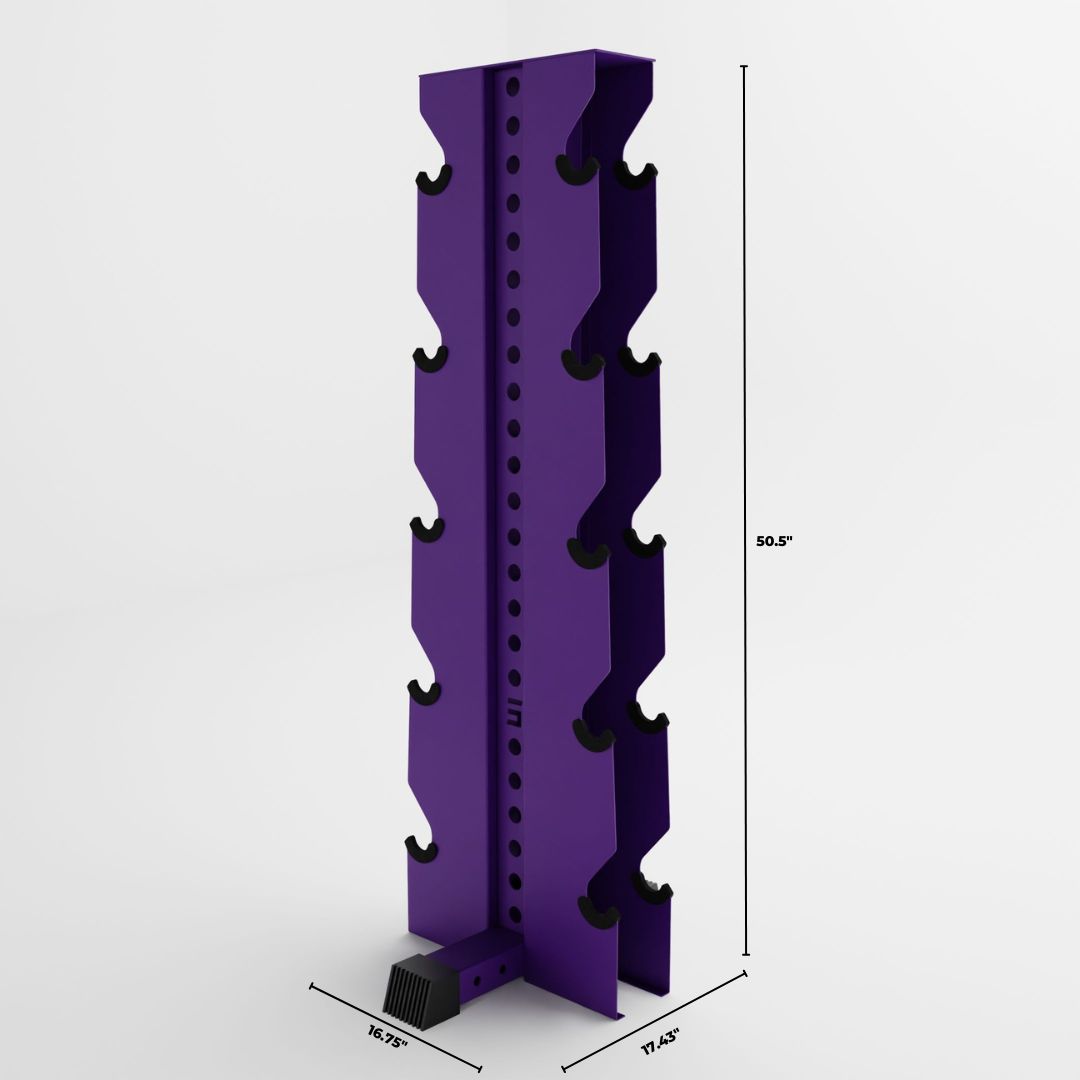

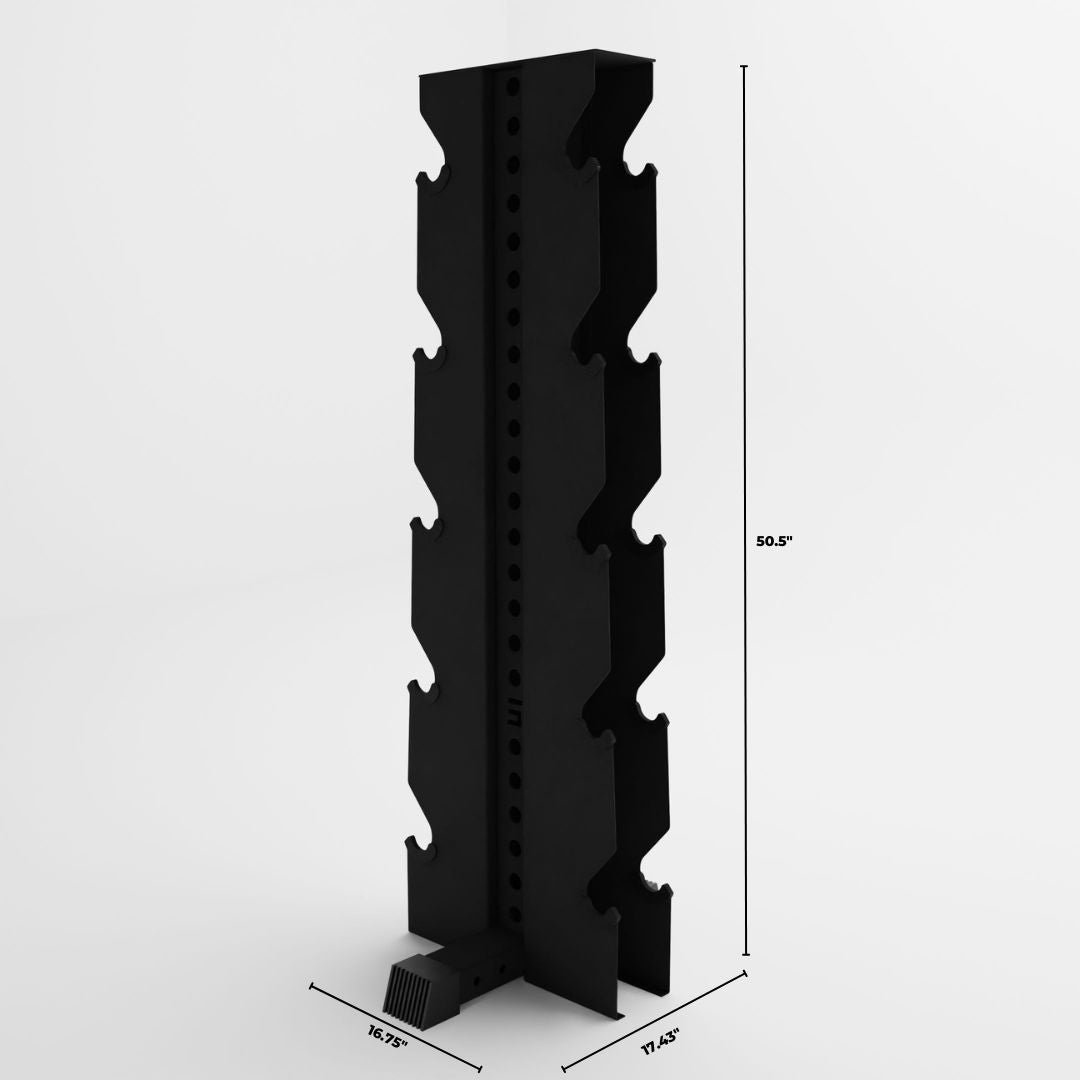

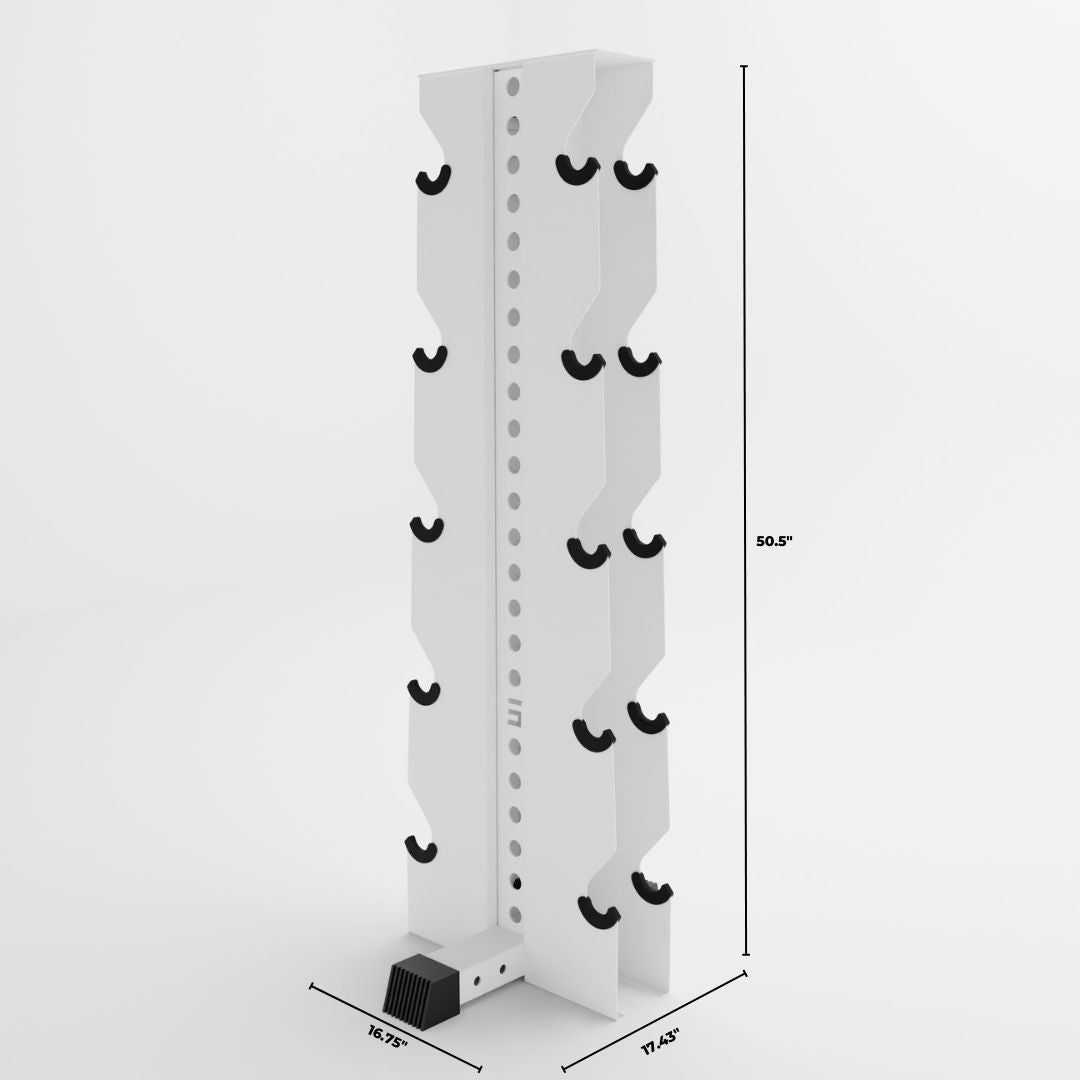

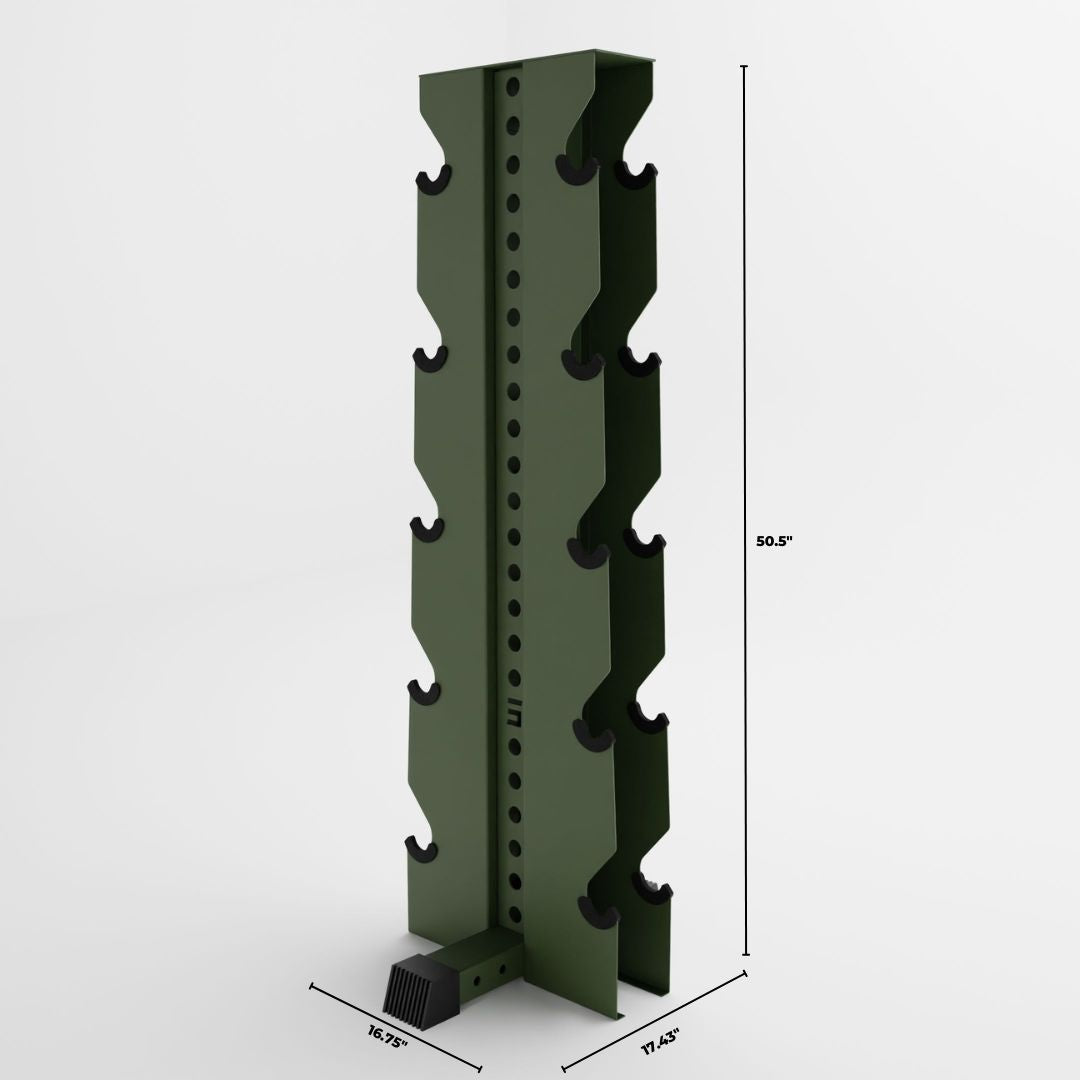

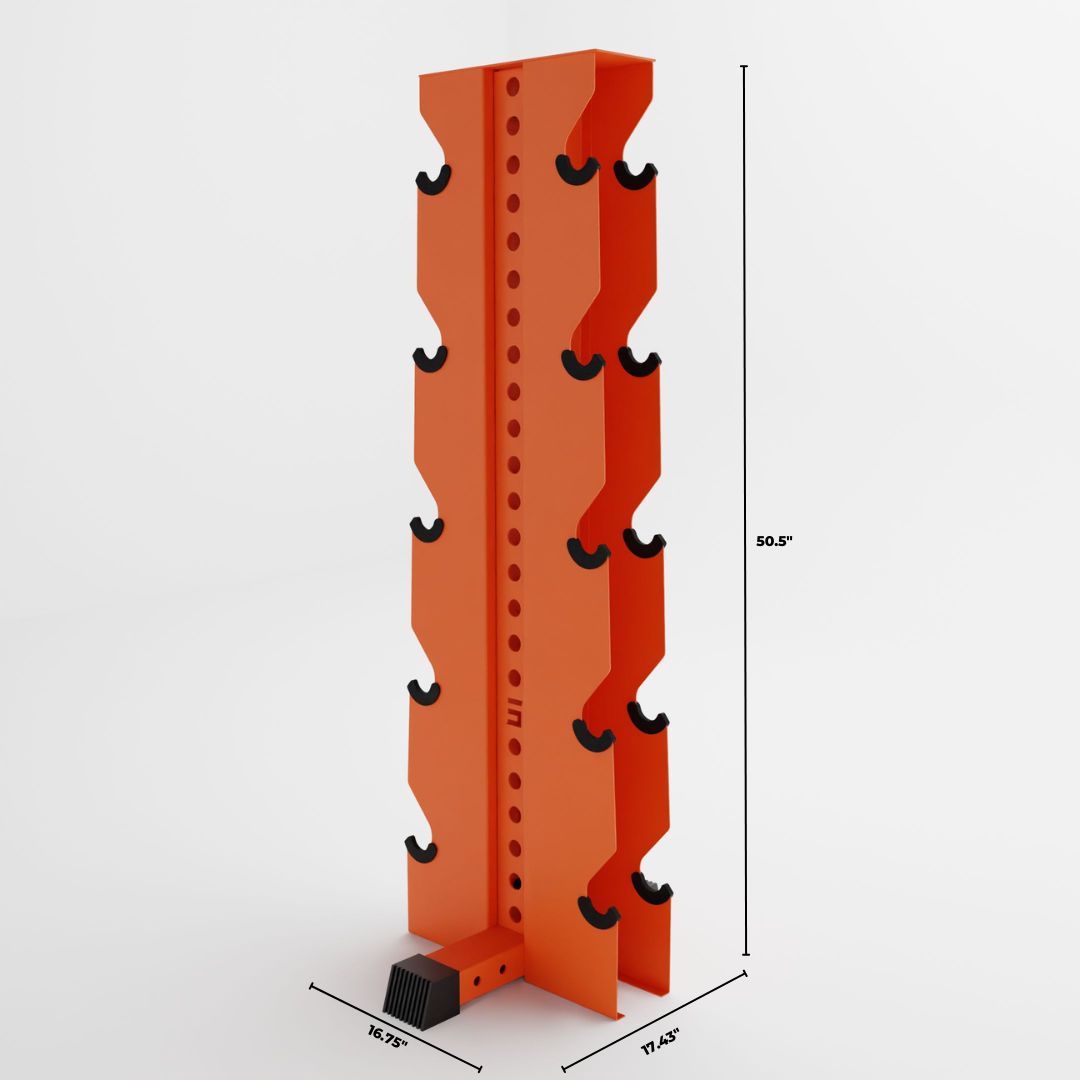

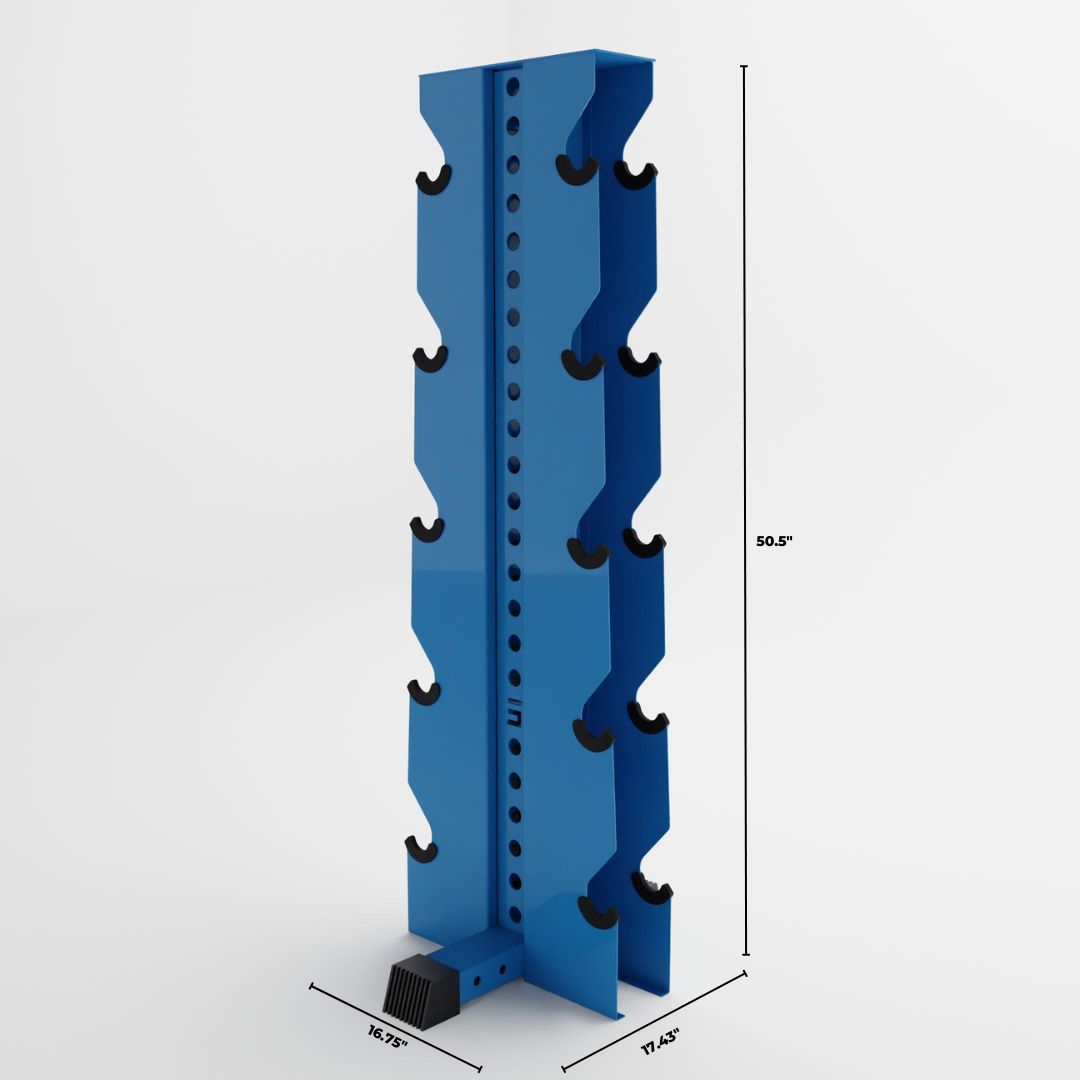

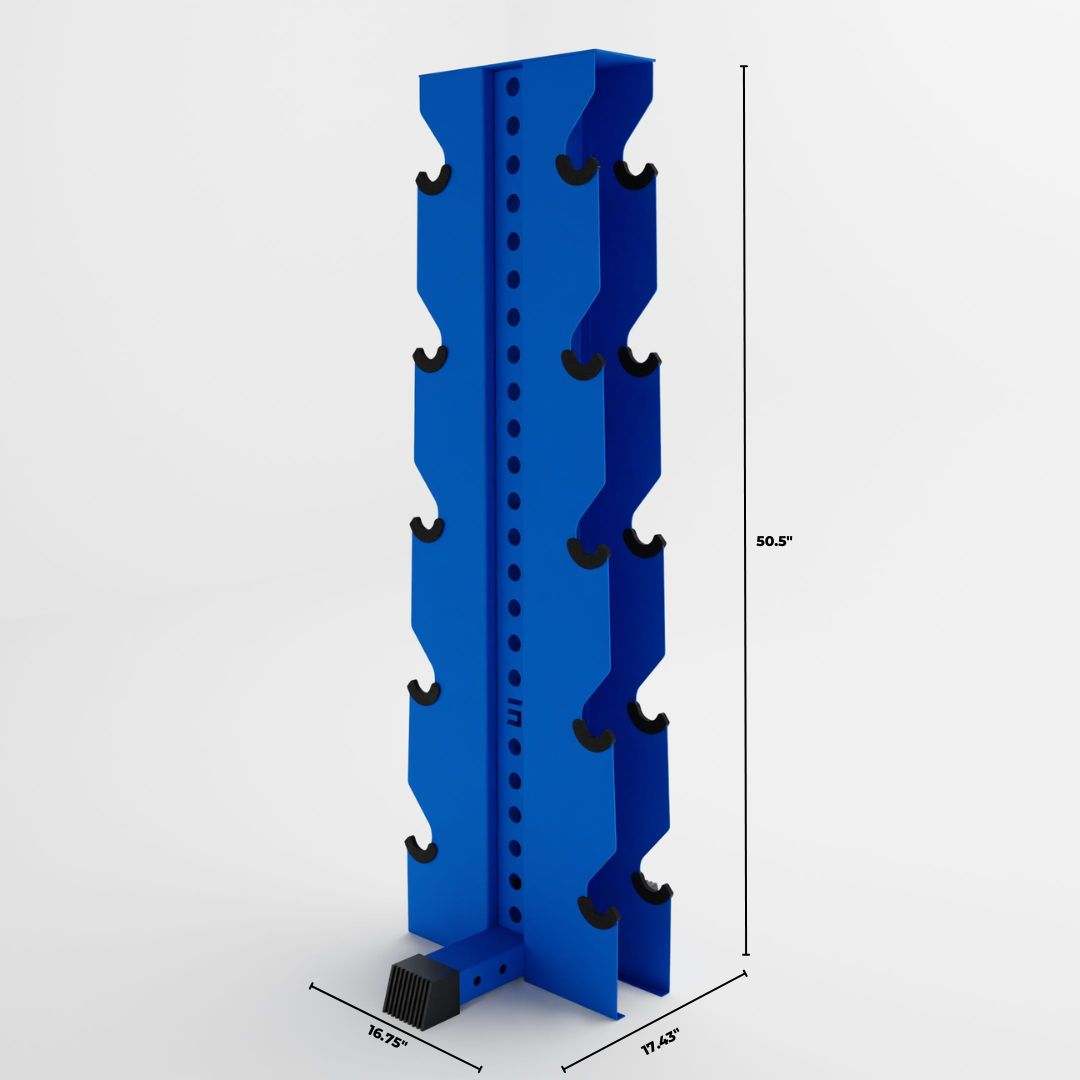

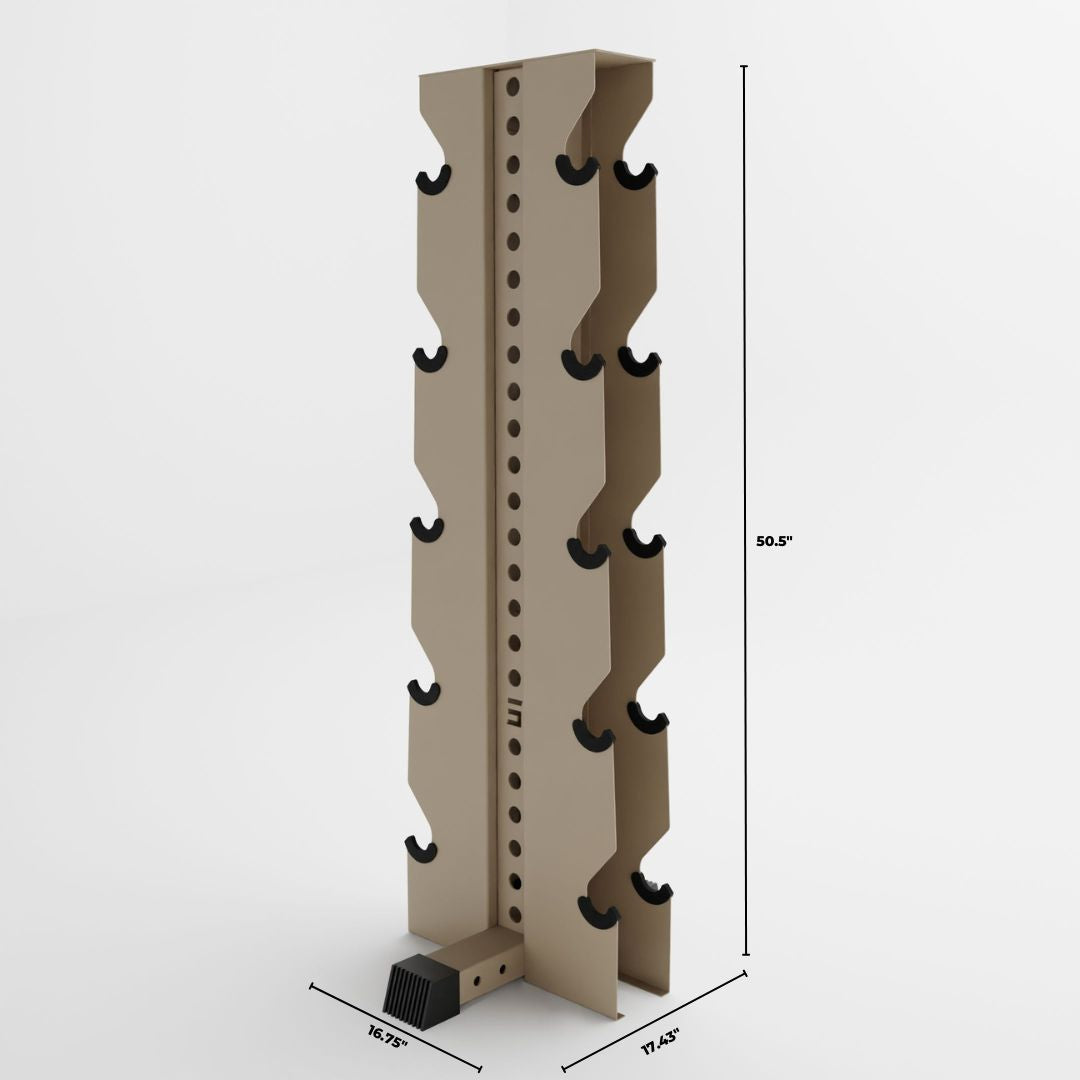

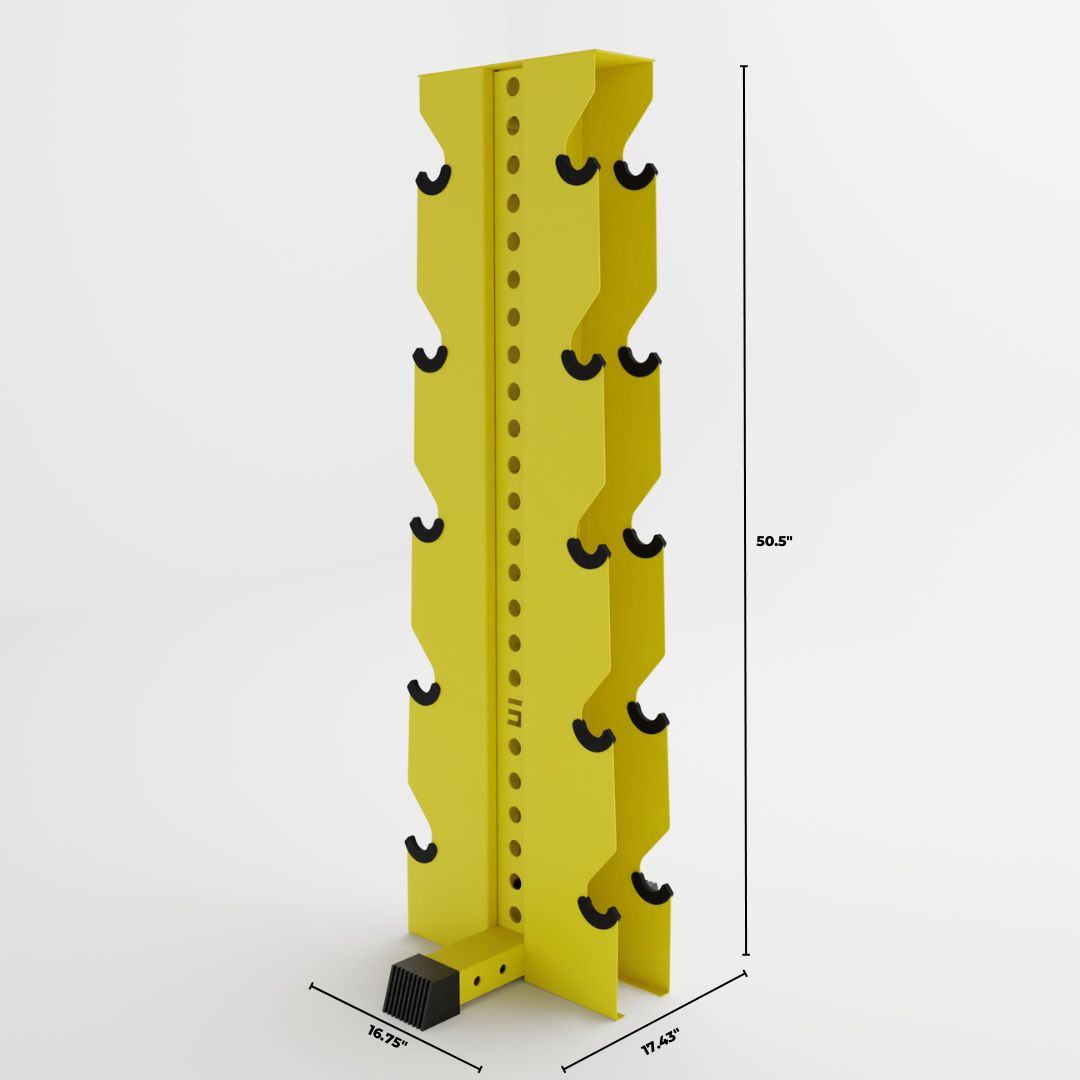

Dimension: 50.50" H x 13" W x 17" D

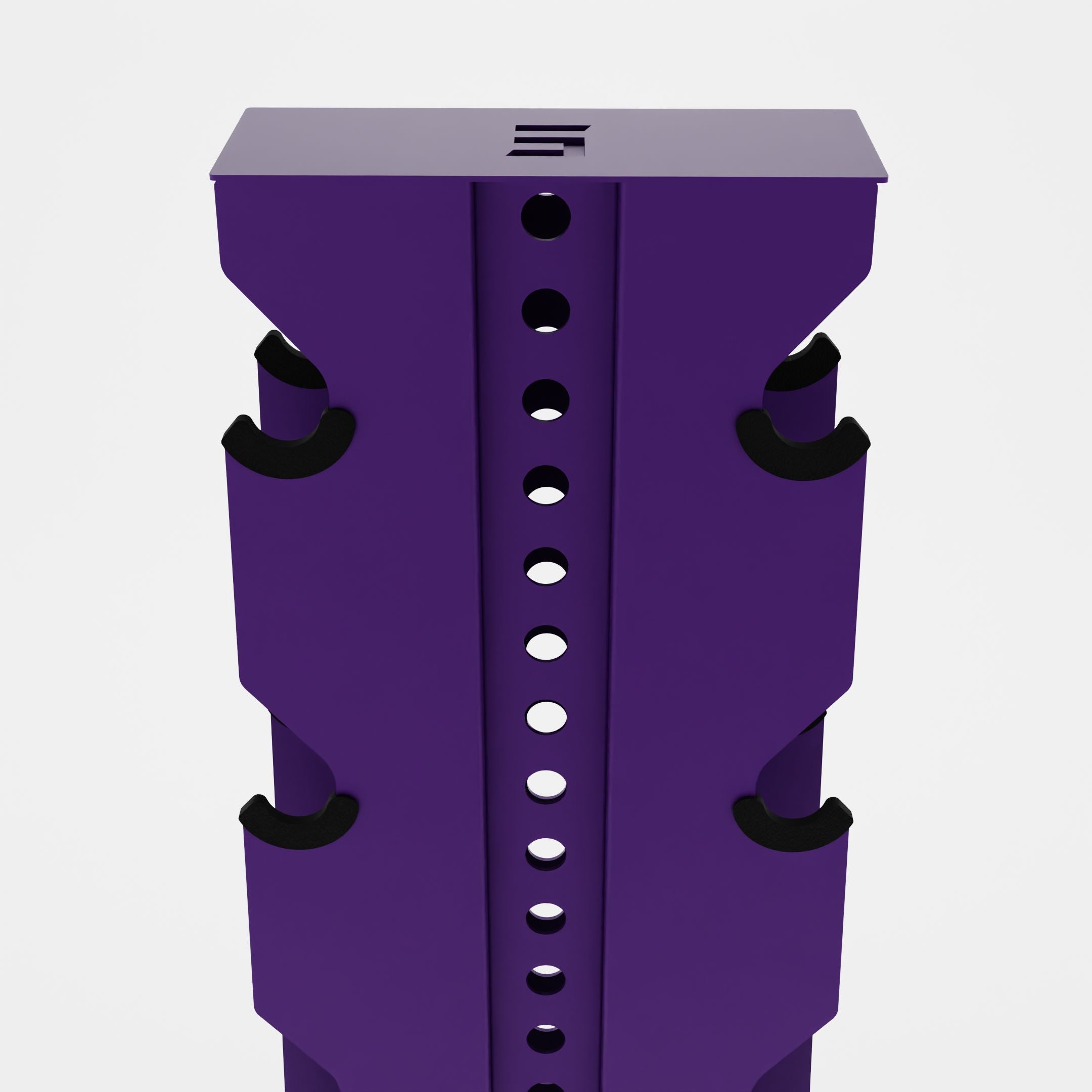

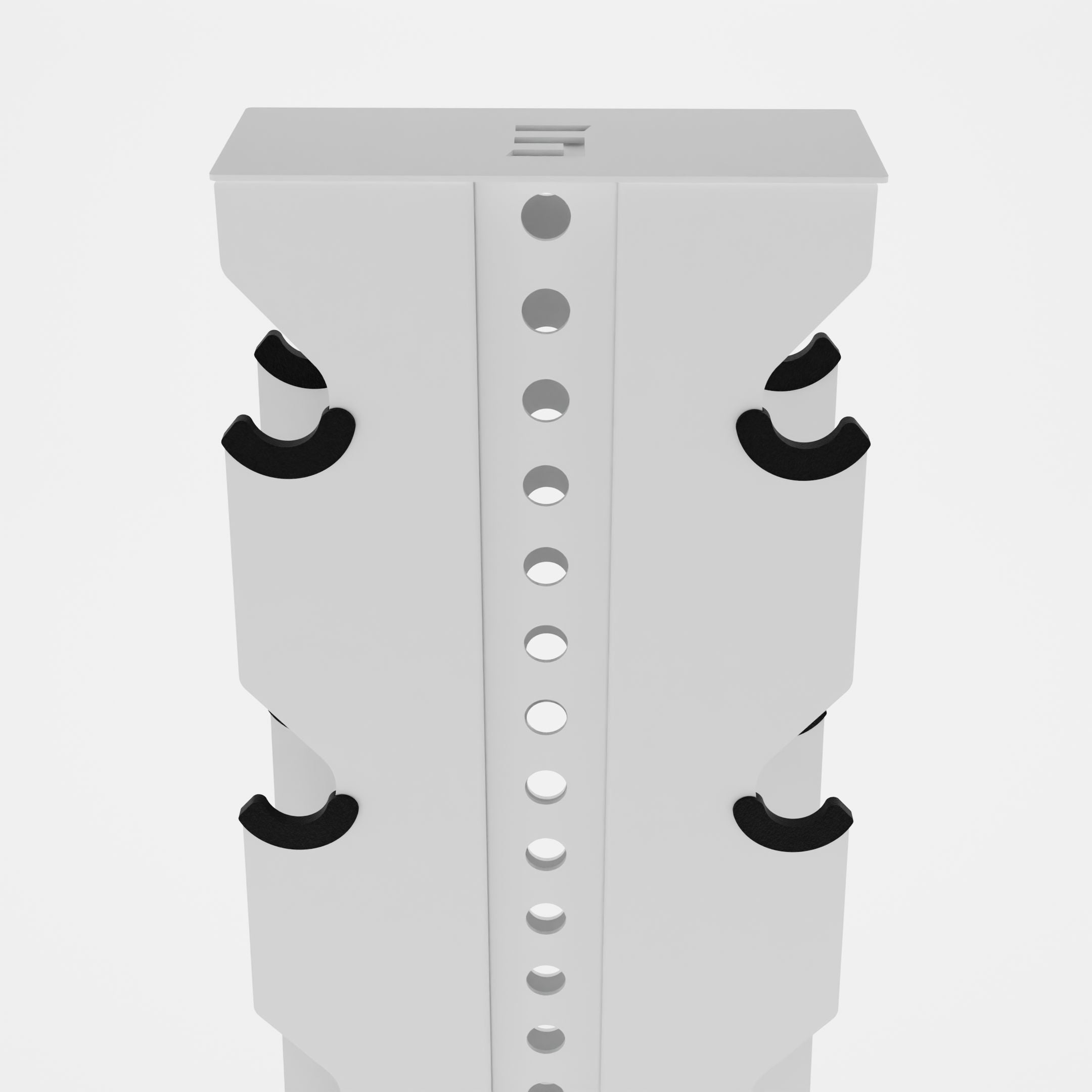

Upright: 3"x3" upright with 1" holes 2" apart

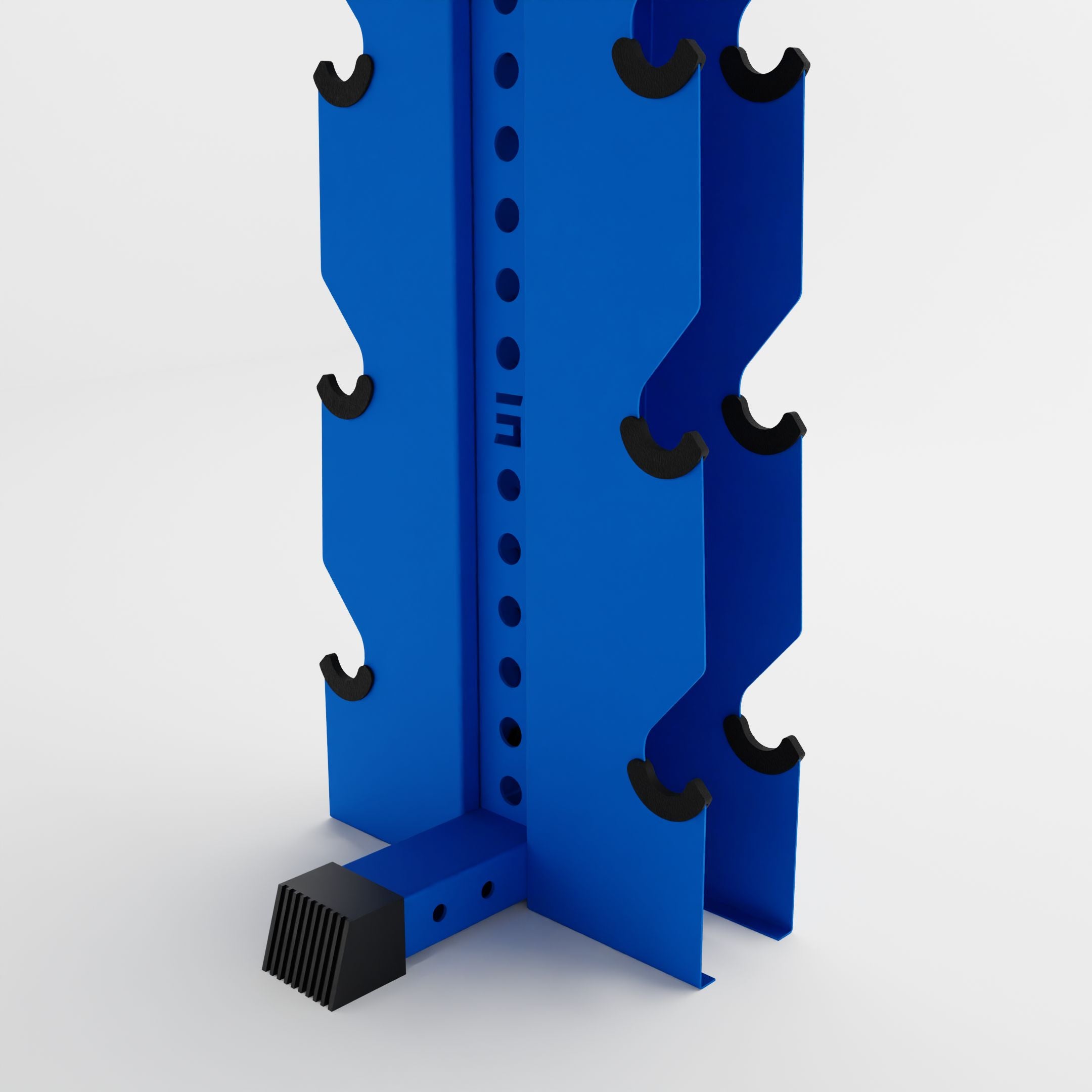

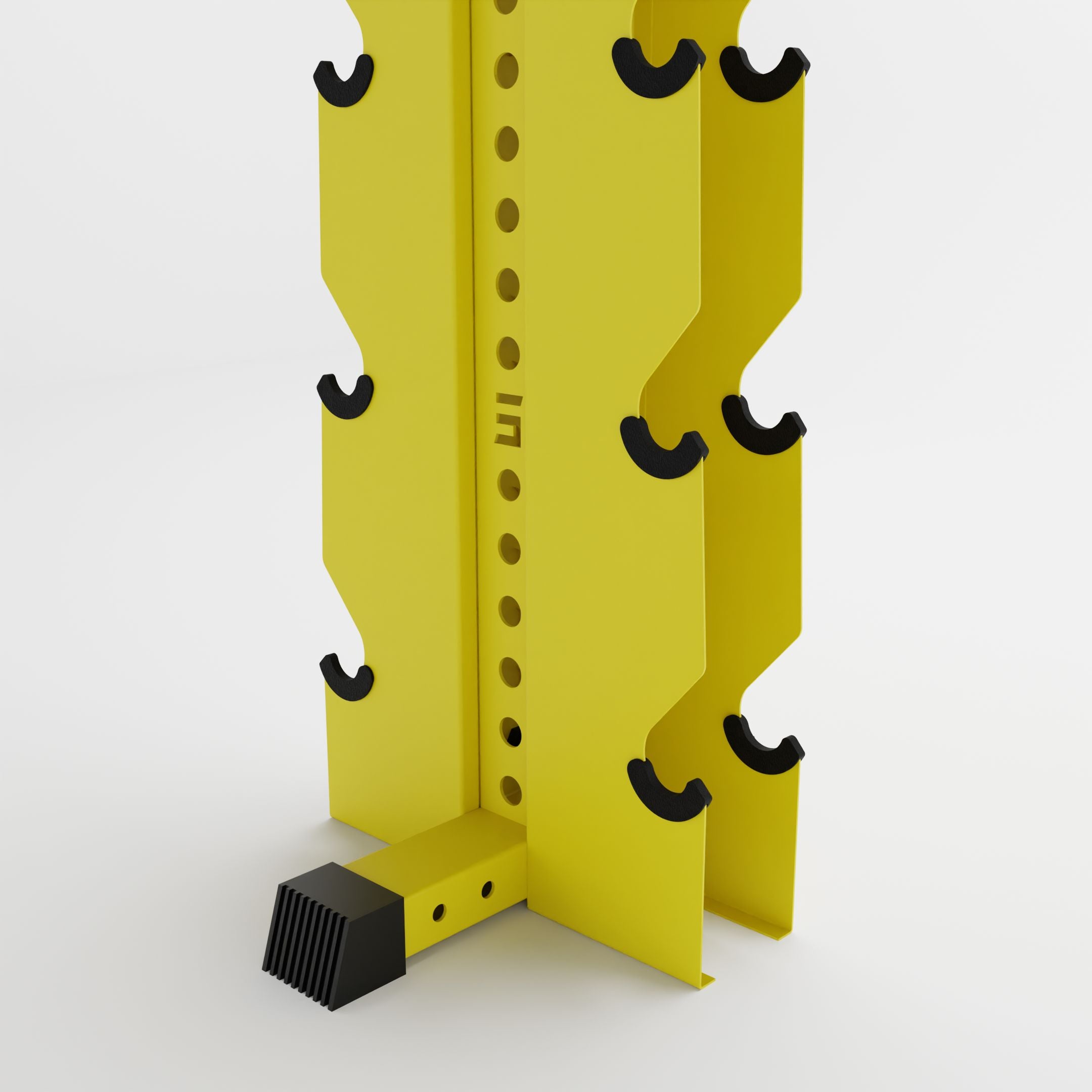

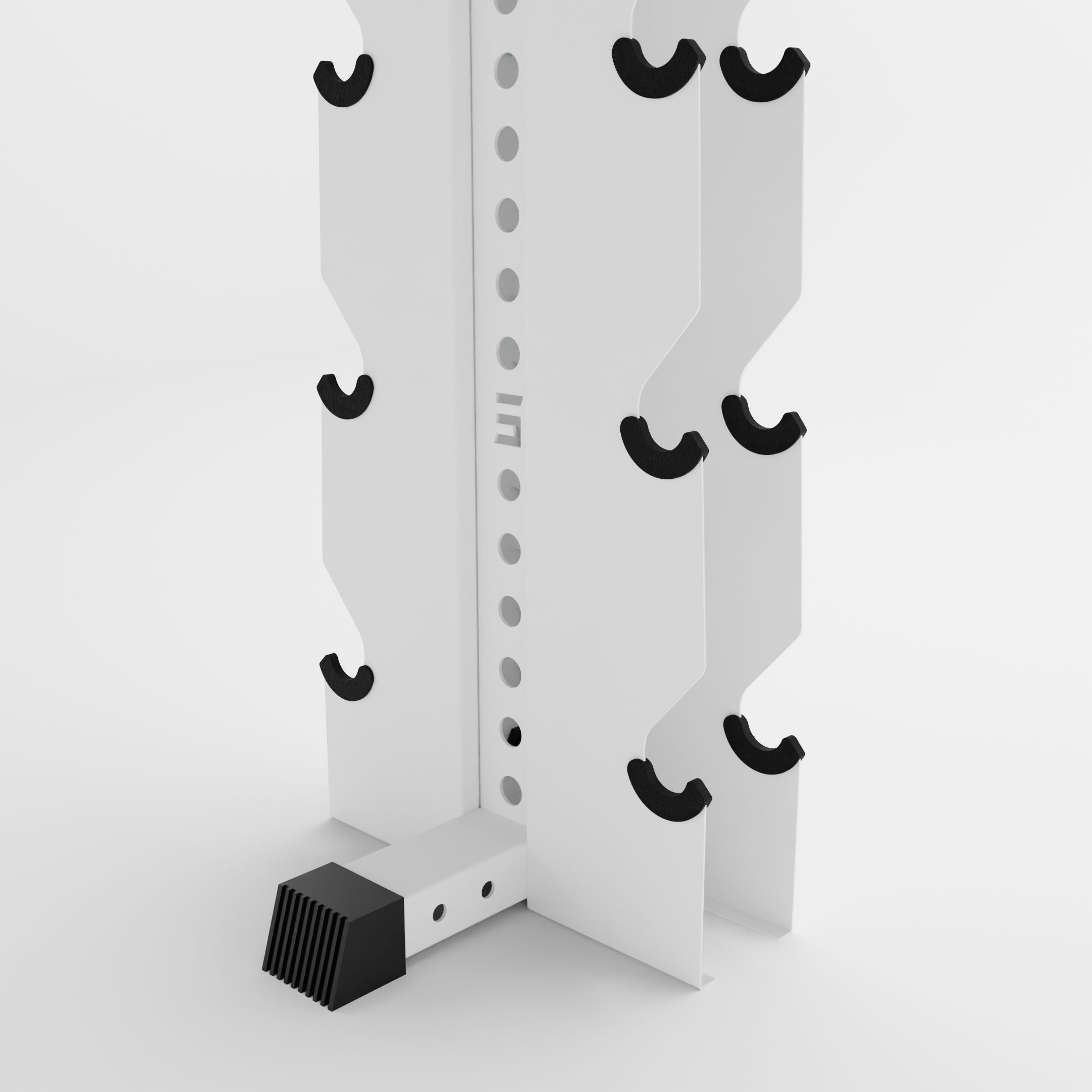

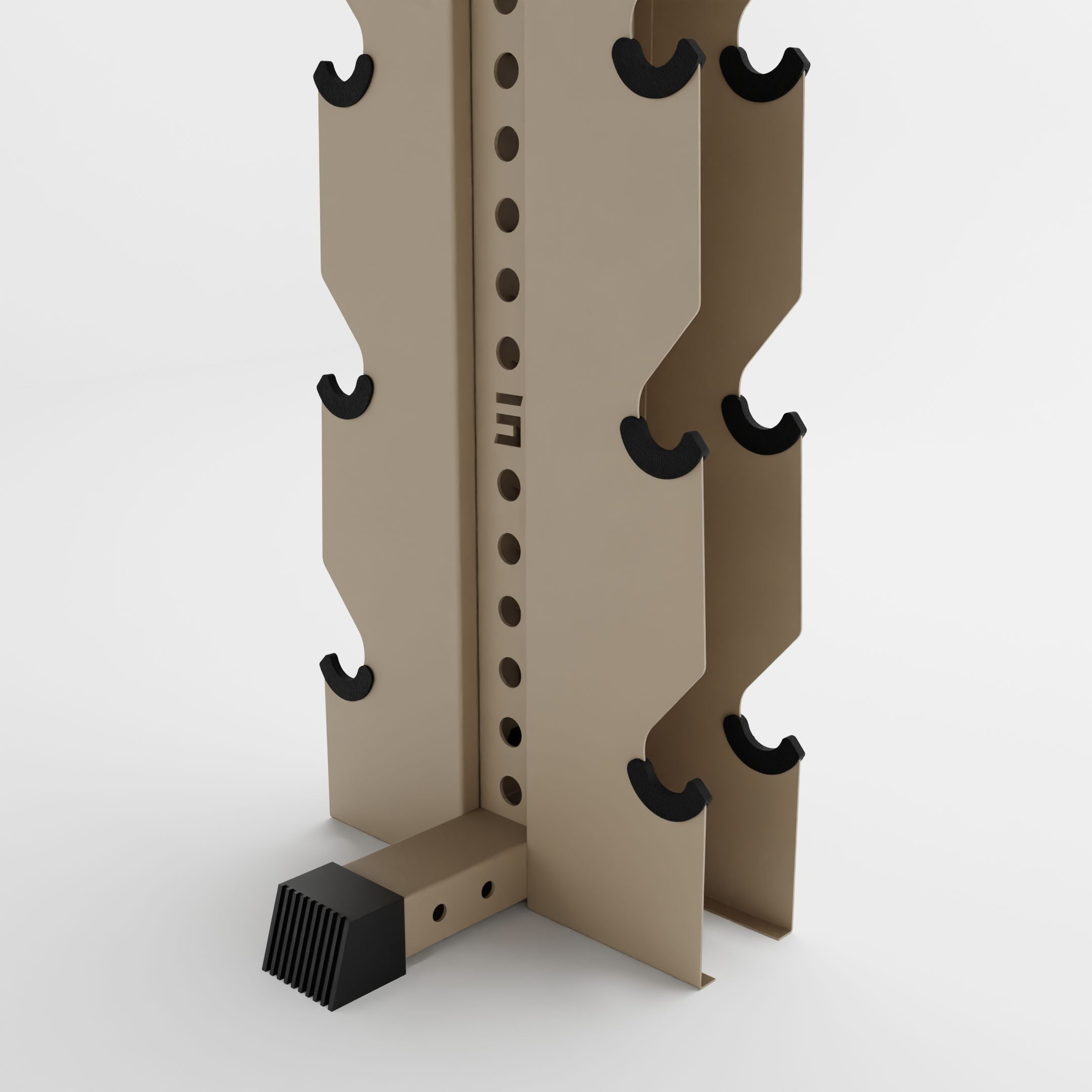

Base: 2"x3" tubing with 9/16" holes 2" apart
Material: 11 Gauge Steel
Hardware: ½" Hardware

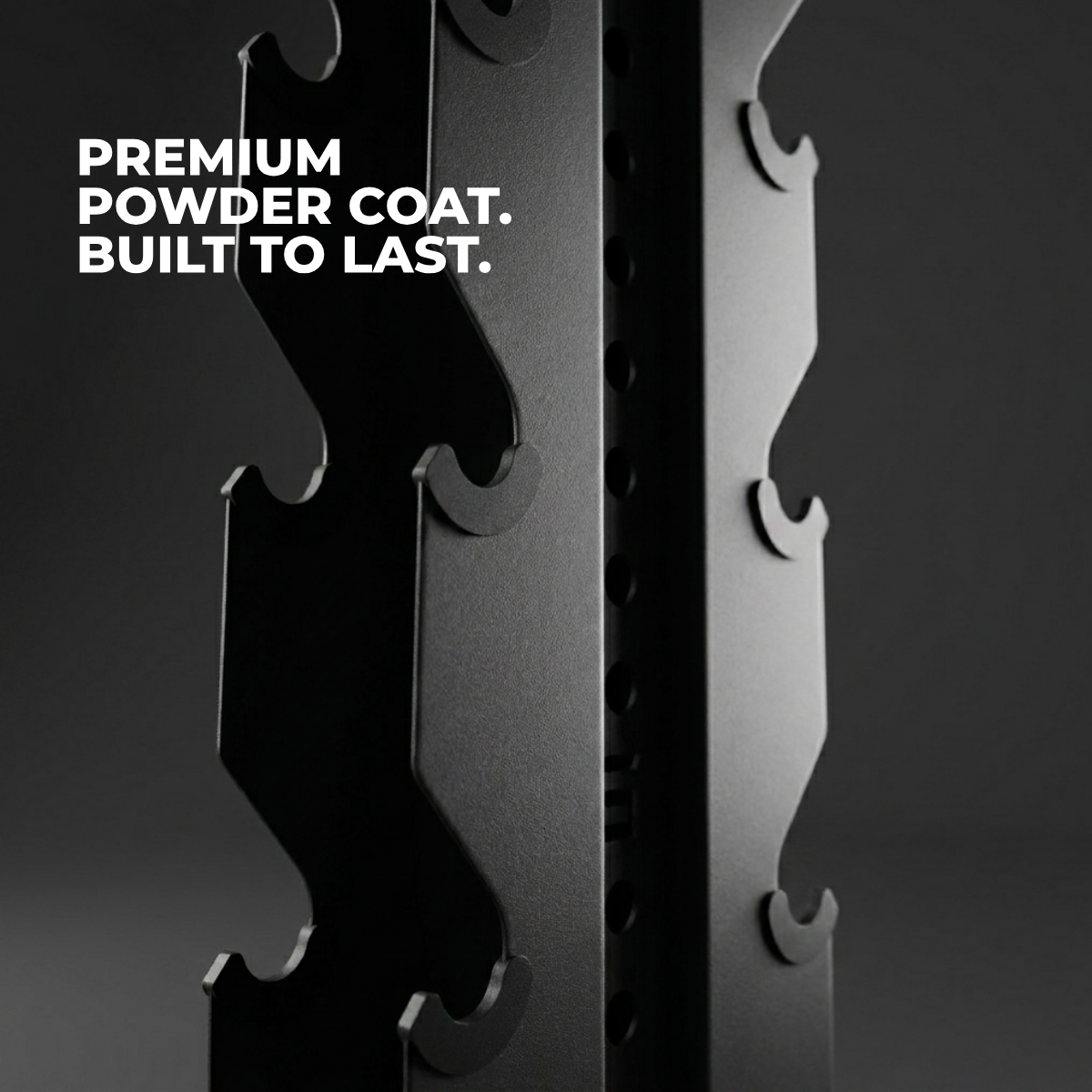

Finish type: Powder Coat
Assembled Net Weight: 60.4 lb.
Package dimensions: 51.25" x 6.00" x 15.50"
Packed Weight Gross Weight: 68" lb.
Warranty: Limited Lifetime
Inside gap dimension: 4.32"
(This is the spacing of the inside gap of the rack. Not the required dumbbell handle size.)
Dumbbell handle dimension needed: 5" or more
(Your dumbbell’s handle must be at least 5" long to sit properly on the rack.)
FAQs
Q: I have 5 sets of 100+ lbs. dumbbells. Will they all fit?
A: Absolutely! The Alpha Elite was designed for this scenario in mind, the distance between all tiers does not change, this means you can have all 100s or thrown any variation in between.
Q: I have 20, 30, & 40 lb. dumbbells. Will anything lighter than 50 lbs. fit?
A: Although the rack is designed to allow you space to hold large dumbbells (50+ lbs.), you can fit smaller weights as well.
Q: What's the handle space? Will my fingers be pinched?
A: The handle has 4.32" of space. This allows extra space compared to the standard vertical rack to avoid pinching fingers!
Q: How do I know if my dumbbell combination and type will fit this rack?
A: The most commonly used dumbbells for this rack are hex, urethane, and Peloton square dumbbells. However, to make sure your dumbbell combination will fit, please refer to the "Dumbbell Fitting Guide Dimensions" to confirm good fit for your dumbbell collection. You can also find this guide under the "Product Documents" section below.
Q: Can I expand this rack into a horizontal rack?
A: Yes, you can take this rack apart and expand it into a 3-Tier Horizontal Rack with our Expansion Kit.
Q: How many accessories can I fit on this rack?
A: You can fit several combinations of accessories on this rack depending on your needs. You can fit up to 4 accessories using both sides of the rack and the legs.
Product Documents
WILL MY DUMBBELLS FIT?🤔
Dumbbell sizes vary by brand—don't rely on the weight (lbs) alone. Follow these steps to verify your fitment:
1. Check Handle Length: Your dumbbell handles must be at least 5" long to fit on the rack.
2. Measure the Diameter: Measure the widest straight-line distance across the face of the dumbbell head to find the total diameter in inches.
3. Input by Pair: Starting from the Top (Pair 1) to the Bottom (Pair 5), enter your measurements below and click "Calculate Vertical Space".
4. Verify Vertical Space: Review the results to see your Available Vertical Space, ensuring you have enough space to rack your weights without hitting the pair above it. A result of 1" or more is optimal.
Always load from lightest to heaviest to maintain ample clearance for racking at each tier.
FITTING CHEAT SHEET
While the calculator above provides your specific results, this chart shows a standard balanced configuration using common dumbbell sizes. Use it as a quick benchmark to understand how head diameters affect your spacing, but make sure to measure your own dumbbells.
Use this as a starting point to plan your layout.
| Transition (Pairs) | Vertical Gap | Max Head Size (TOP) | Max Head Size (BOTTOM) | Vertical Space |
|---|---|---|---|---|
| Pair 1 to 2 | 10.88" | 3.0" – 8.25" (5–90 lb) | 4.0" – 8.25" (10–90 lb) | 2.63" |
| Pair 2 to 3 | 10.84" | 4.0" – 8.25" (10–90 lb) | 4.5" – 8.69" (15–100 lb) | 2.37" |
| Pair 3 to 4 | 10.91" | 4.5" – 8.69" (15–100 lb) | 5.0" – 8.75" (20–110 lb) | 2.19" |
| Pair 4 to 5 | 10.88" | 5.0" – 8.75" (20–110 lb) | 5.5" – 9.0" (30–120 lb+) | 2.00" |

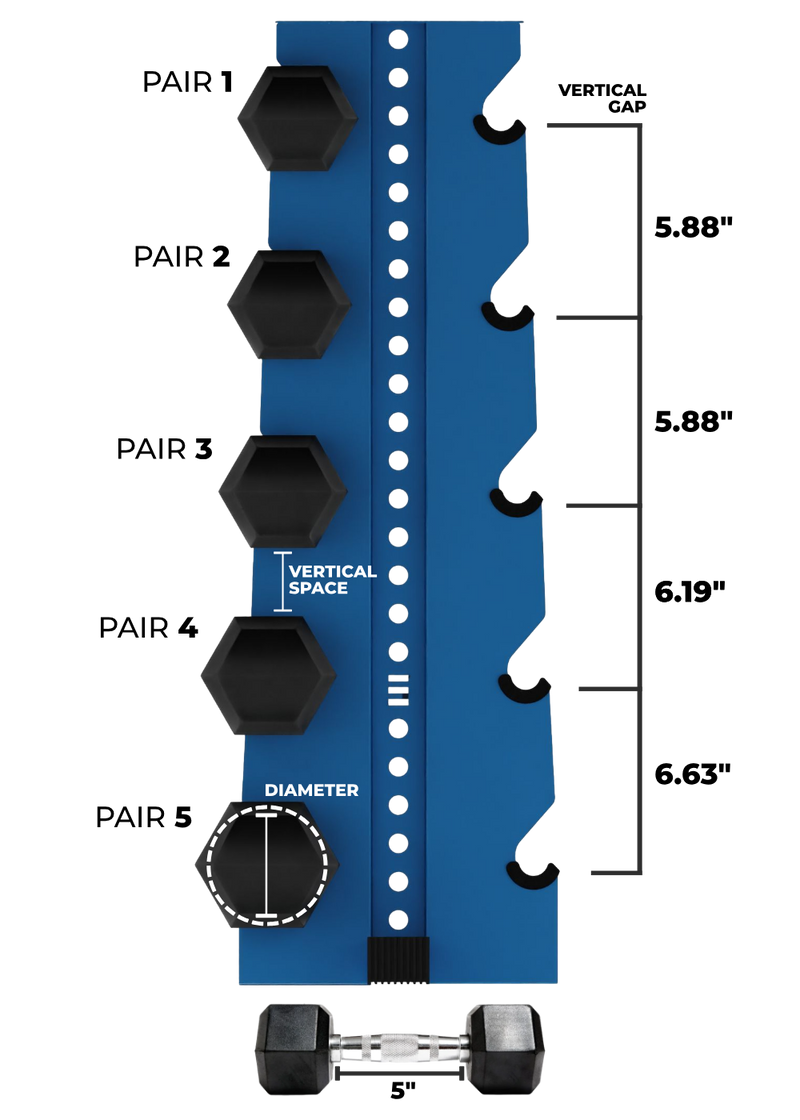

our dumbbell configuration Formula
The calculator above determines your exact available vertical space between each head of the weights for each tier using this formula:
Vertical Gap - ((Head Size Top + Head Size Bottom)/2) = Your Air Space
How to Break This Down (Step-by-Step):
Step A: Add the diameter of your Top dumbbell head and bottom dumbbell head together.
Step B: Divide that total by 2. (This gives you the "average" space the two weights take up).
Step C: Subtract that number from the corresponding Vertical Gap shown listed on the right side of the diagram above
The Result: This is your Available Vertical Space (anything below 1.0 will not be optimal)
the best way to store your heavy dumbbells while saving space ✅
what if i have a full 5-100lb set and want to go vertical?

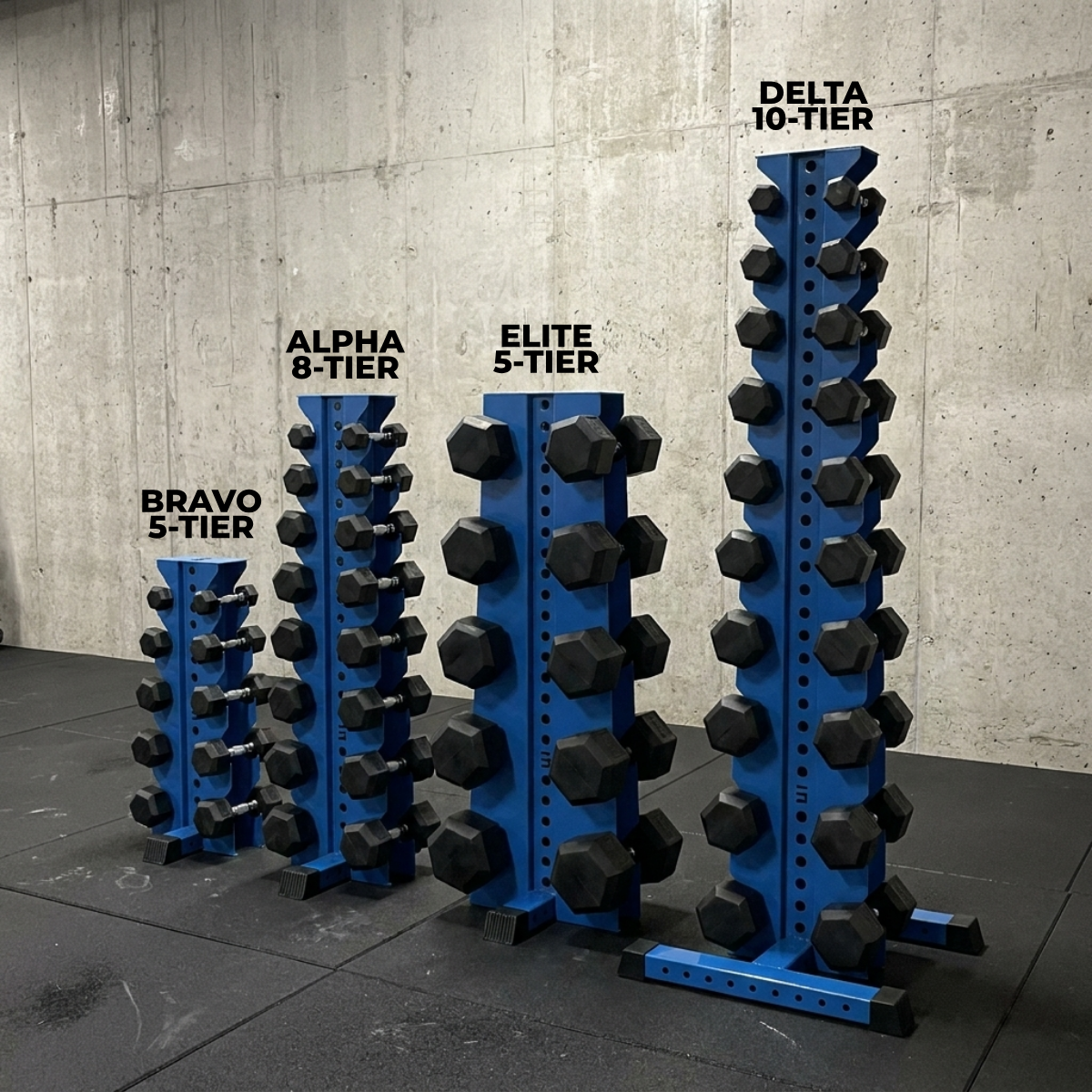

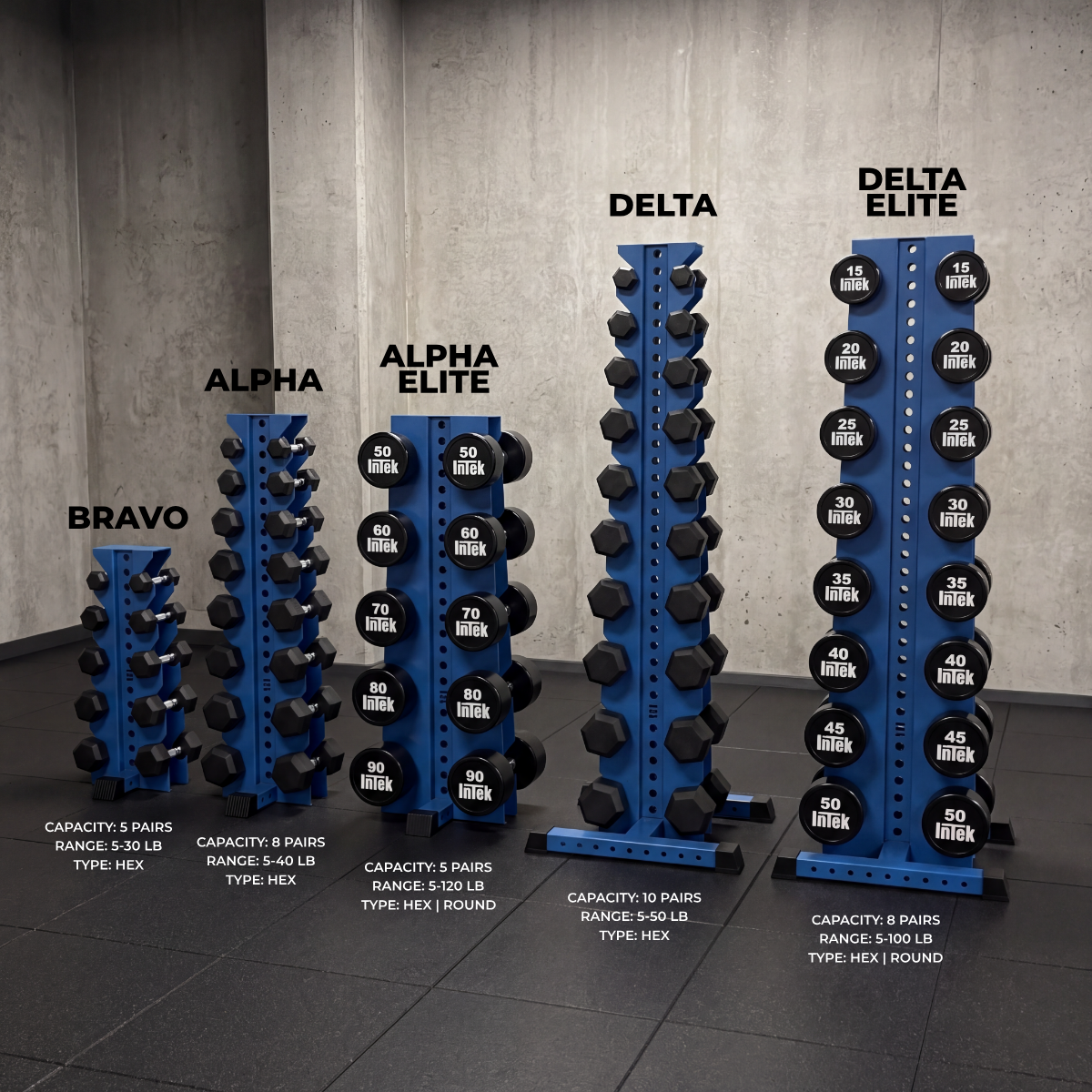

Our Delta will hold your full set of 5-50, while one Alpha Elite can hold your 55-75 and the second Elite can hold your 80-100. Many people prefer this option as provides flexibility when tight on space.
How much space does the alpha elite rack take?
The Alpha Elite sits at 50 1/2″ with a 2.02 ft² footprint and was purpose-built to ensure stability. This is the best way to store your dumbbells when looking to maximize your space.
what dumbbell configuration is best for the Alpha Elite rack?
Our Alpha Elite rack holds 5 pairs of dumbbells and was designed to store your heavy sets and your dumbbells with bigger heads. Check out our Fitting Guide to ensure your dumbbells fit!
Your dumbbell handle needs to be at least 5 inches for it to fit on the rack.
what accessories can I attach on the rack?
Our Alpha Elite rack upright and base allows you to store landmines, battle rope anchors, barbell holders, and plate holders - all with the exact same footprint.
Besides the plate holder, each accessory comes in two variations depending on whether you want to attach it to the upright or the base.
will i pinch my fingers?

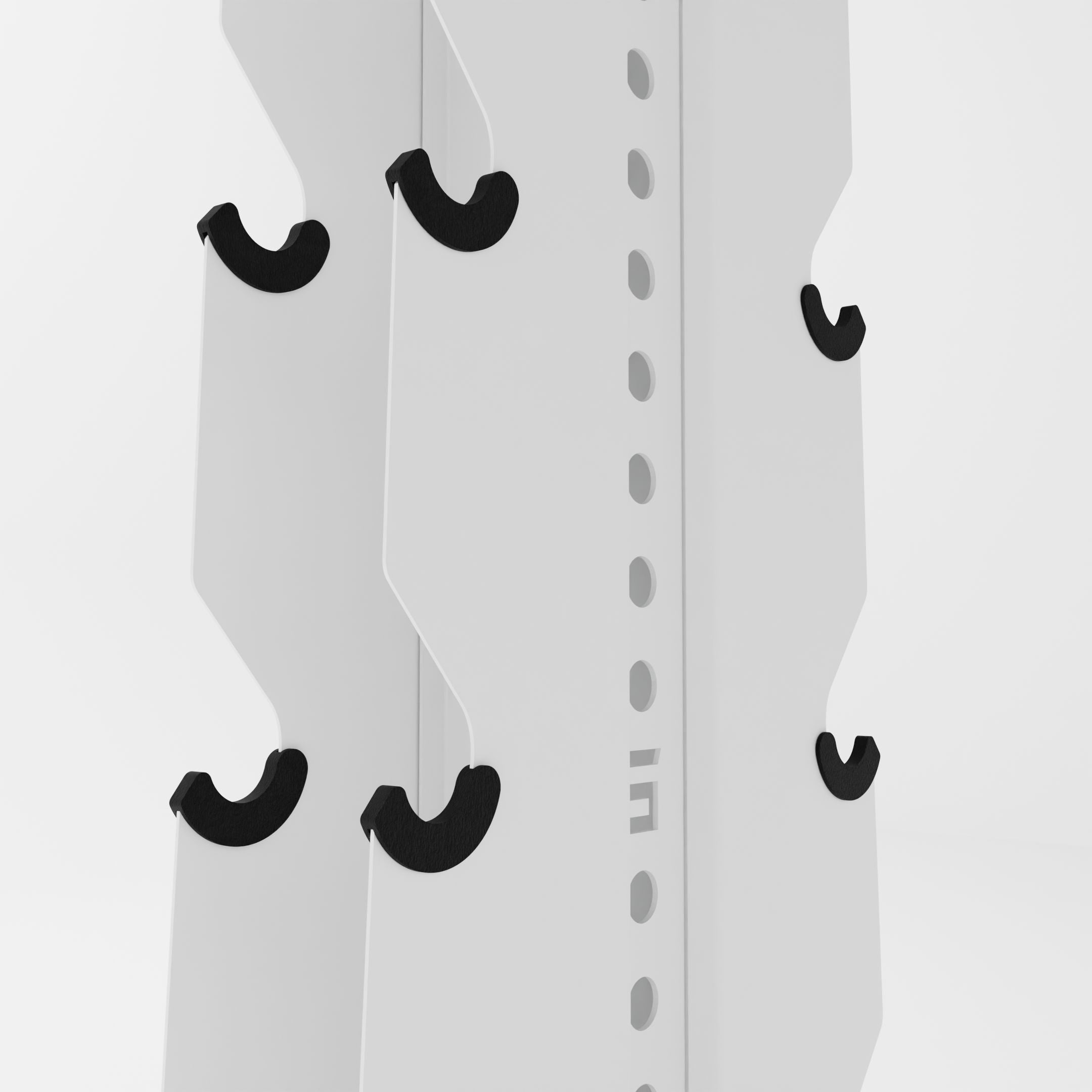

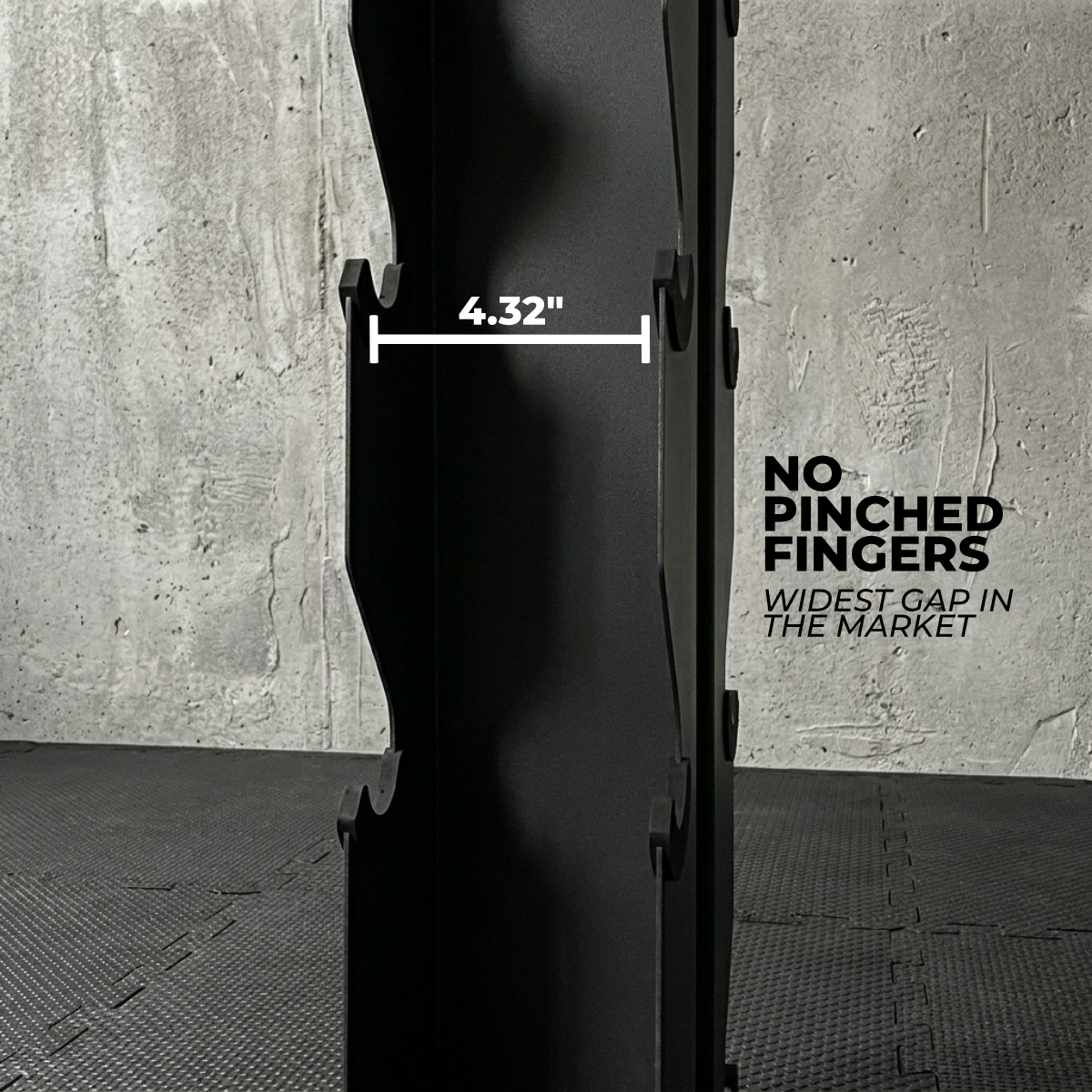

When designing our vertical dumbbell racks, pinched fingers was NOT an option for us. That's why we created a 4.32" gap within the dumbbell spacing. We provide the widest gap for vertical racks in the market.

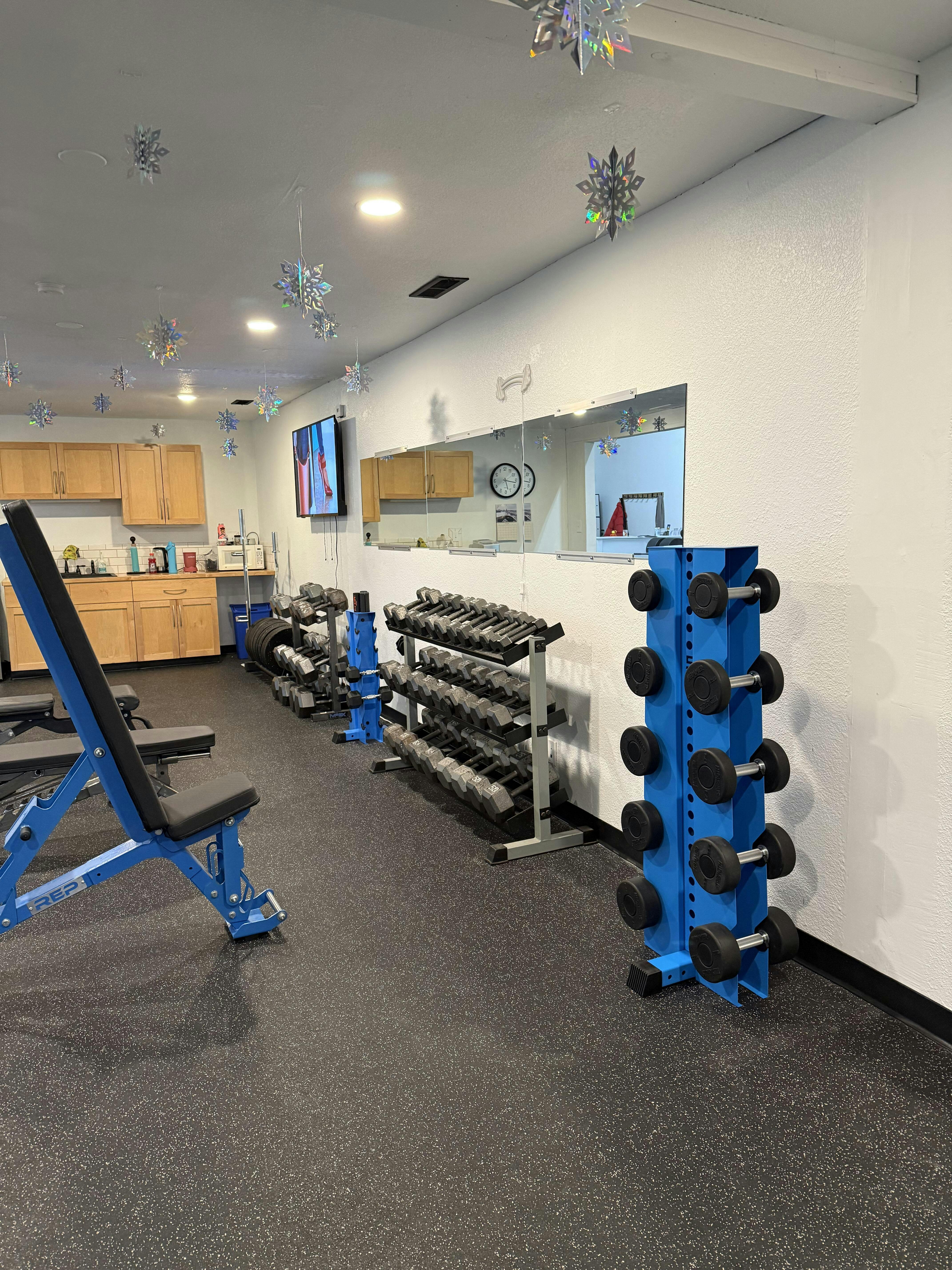

I have a commercial gym. whats the best application for your racks?

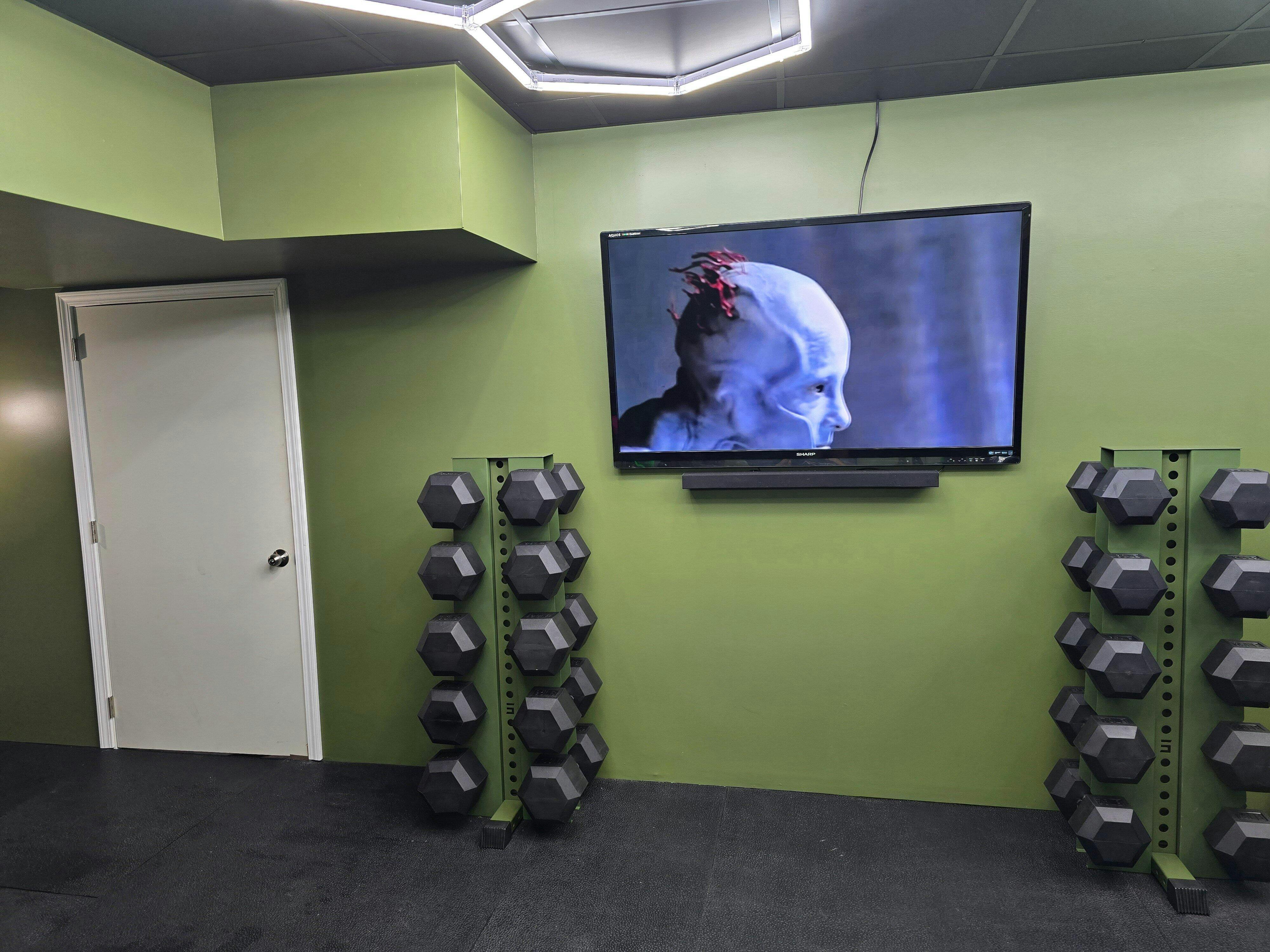

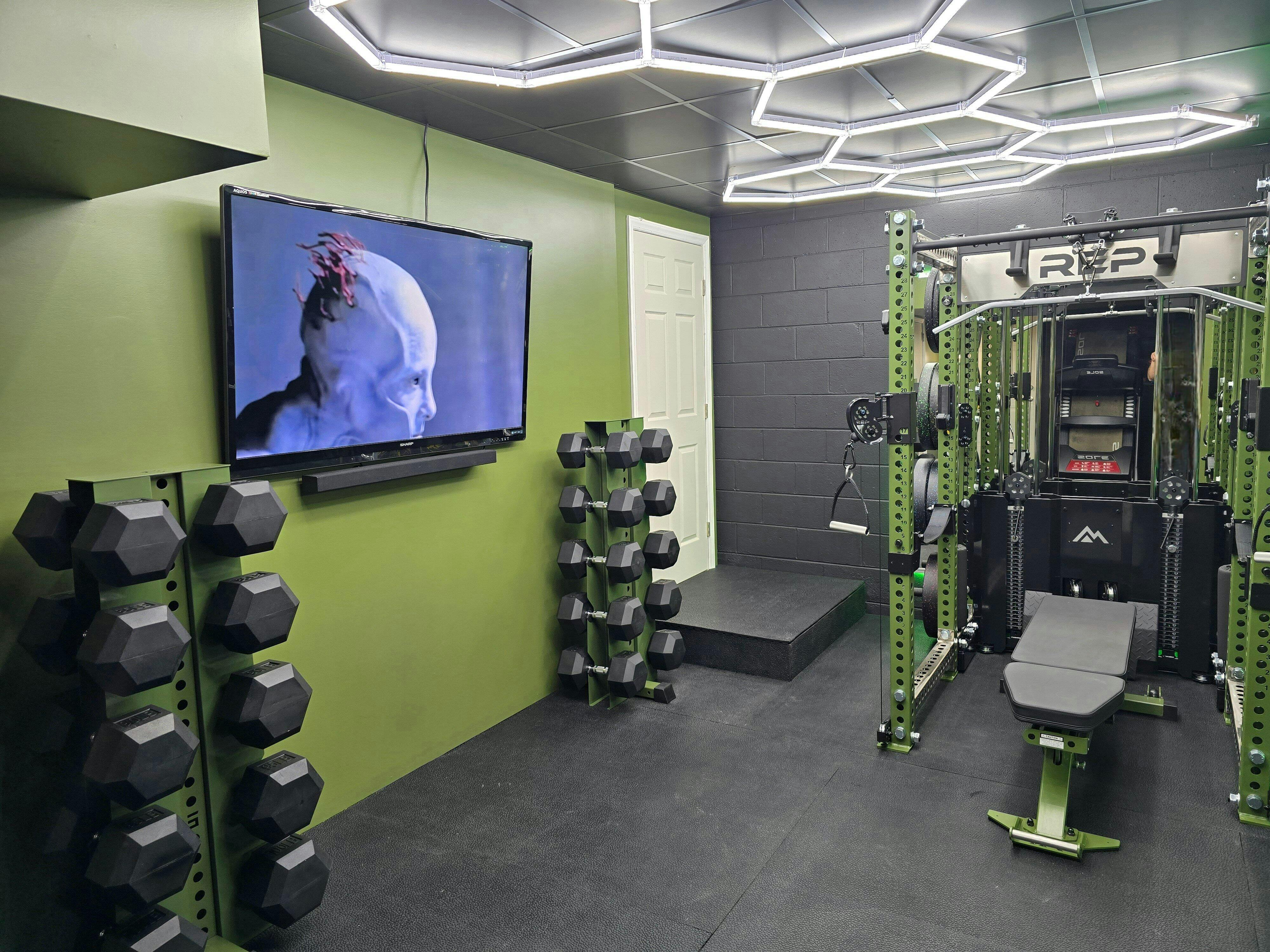

Our racks make for efficient stations to implement to any fitness class, allowing each client to have access to their own dumbbells, plates, and workout stations.
is this difficult to assemble?
Absolutely not! As home gym owners, we know the struggle of assembling equipment with too many steps. The rack only requires 5 bolts and can really take just 5-10 minutes to put together. It really doesn’t get any easier than that!
