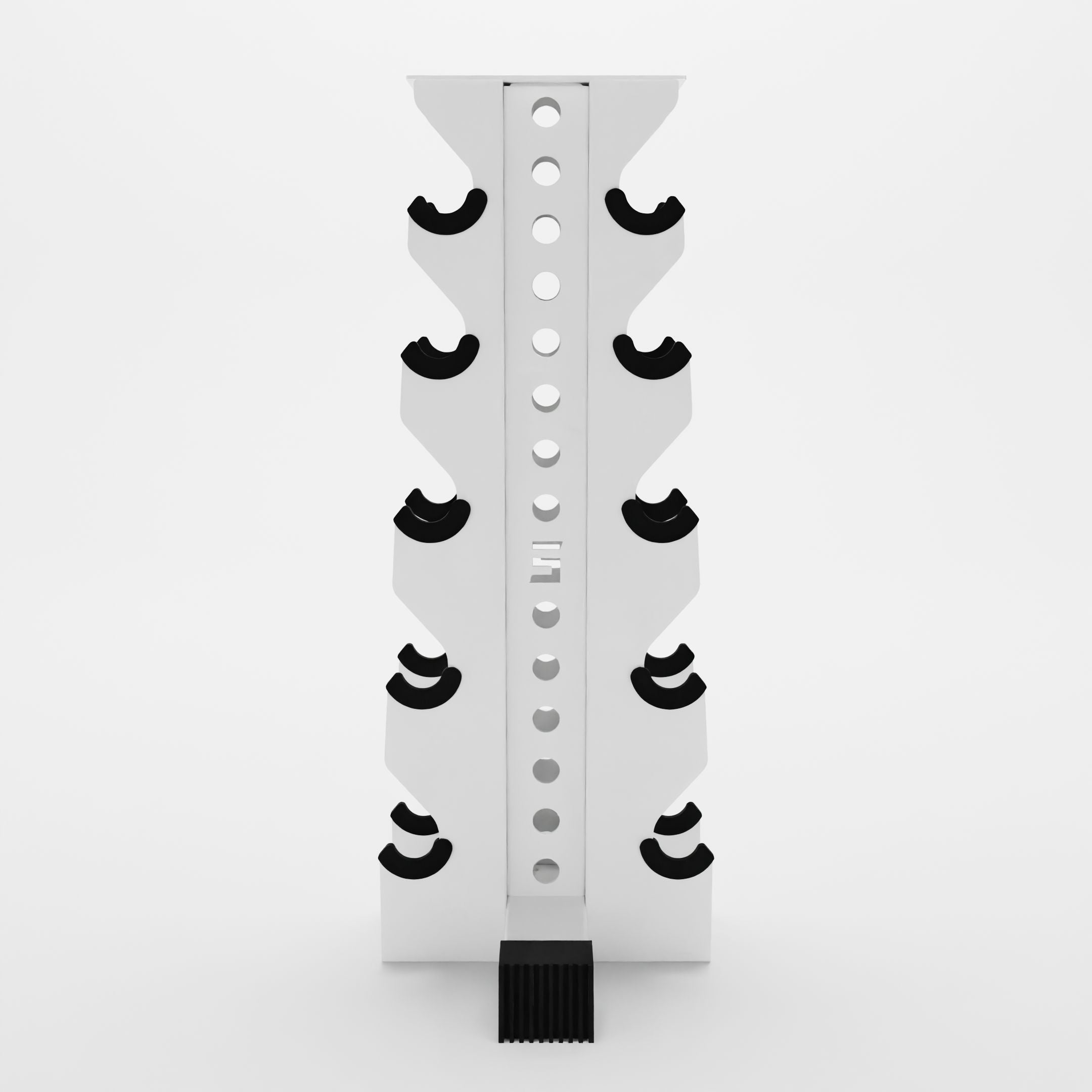

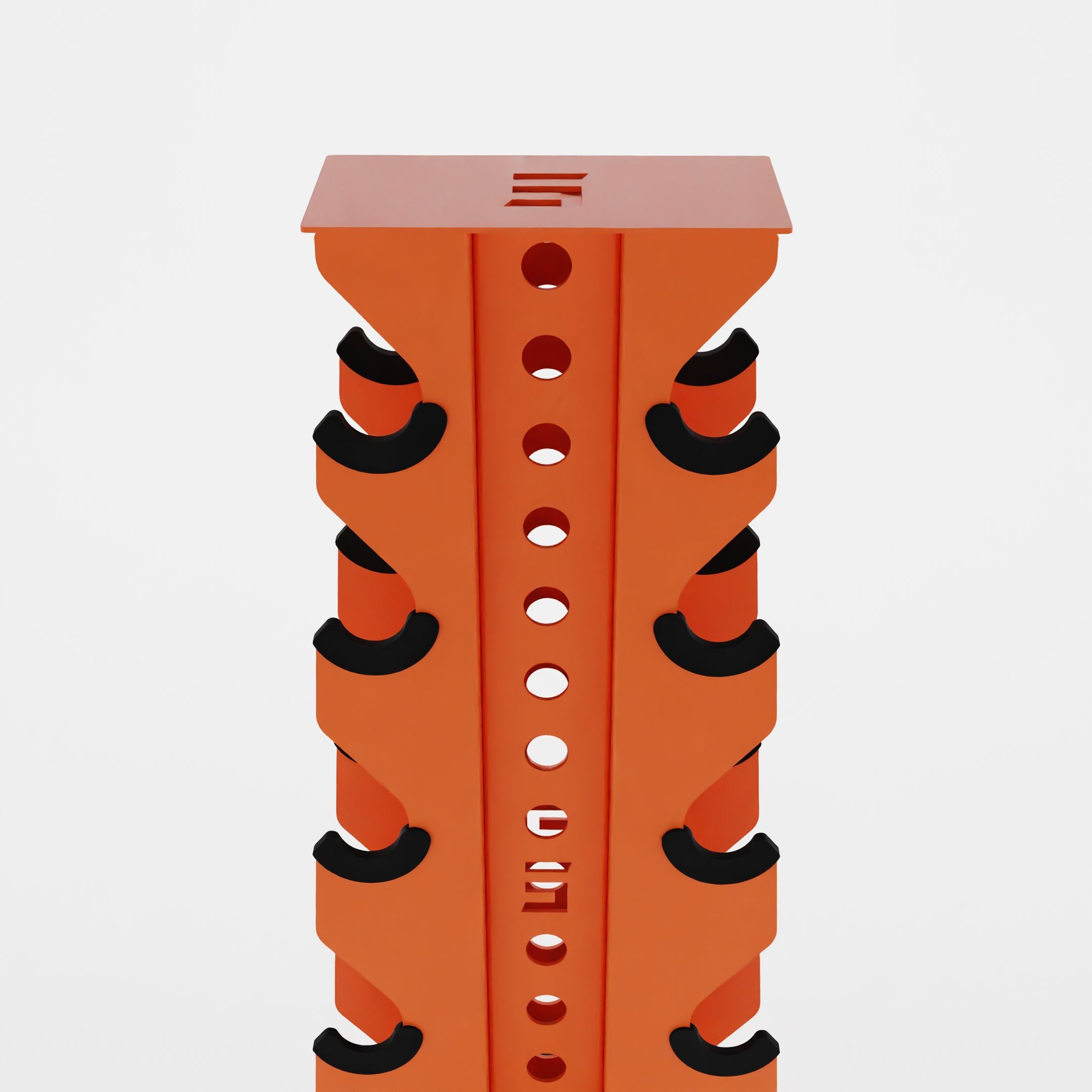

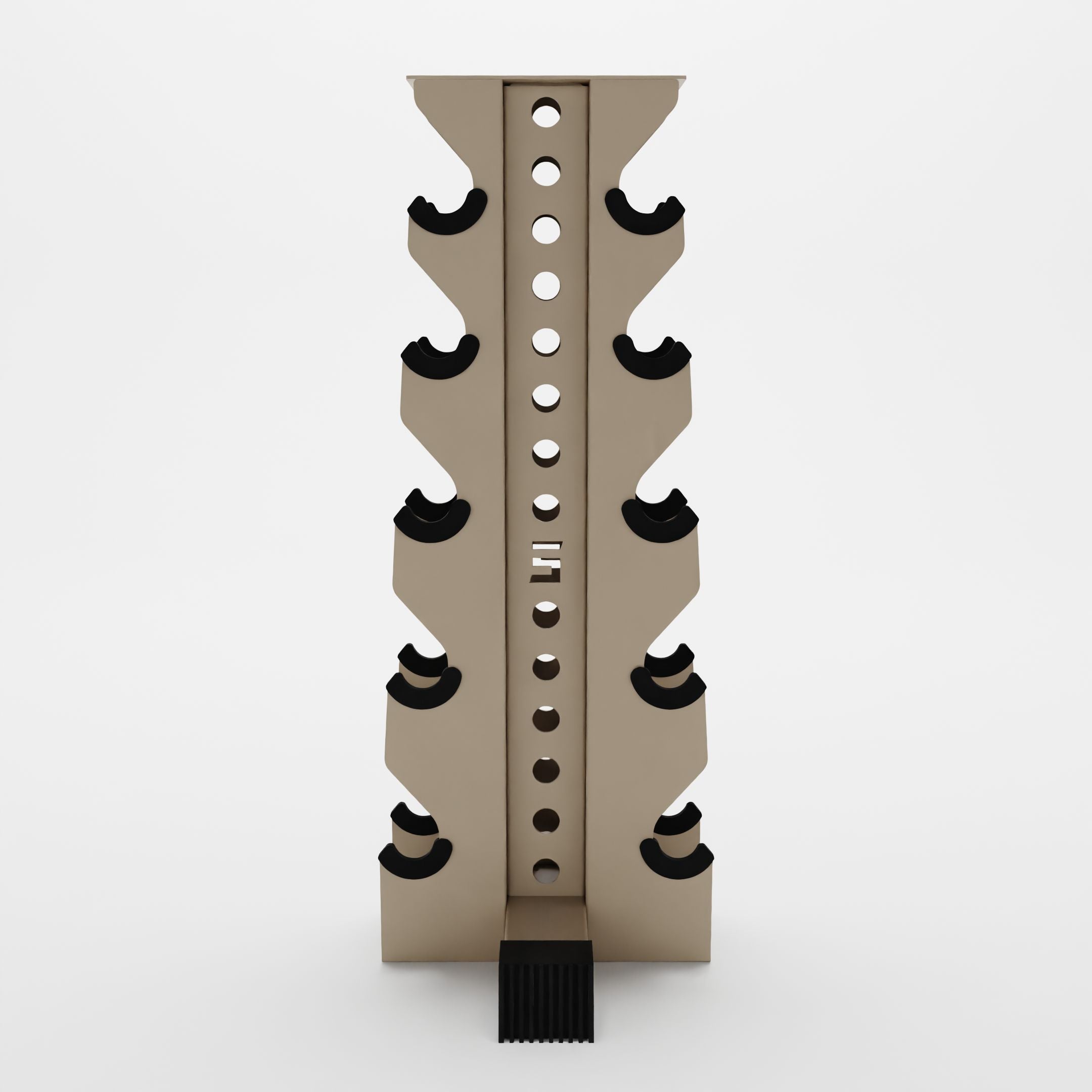

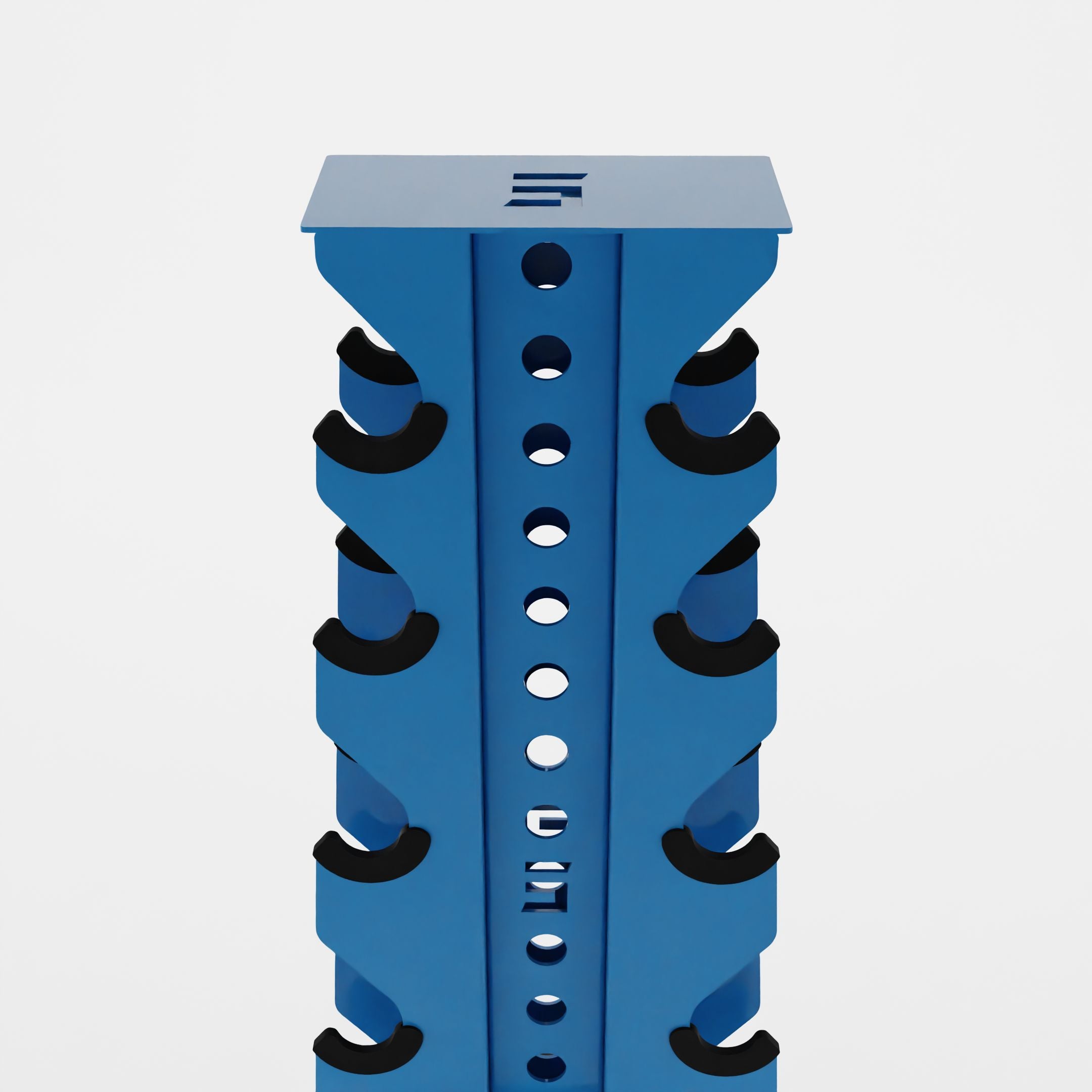

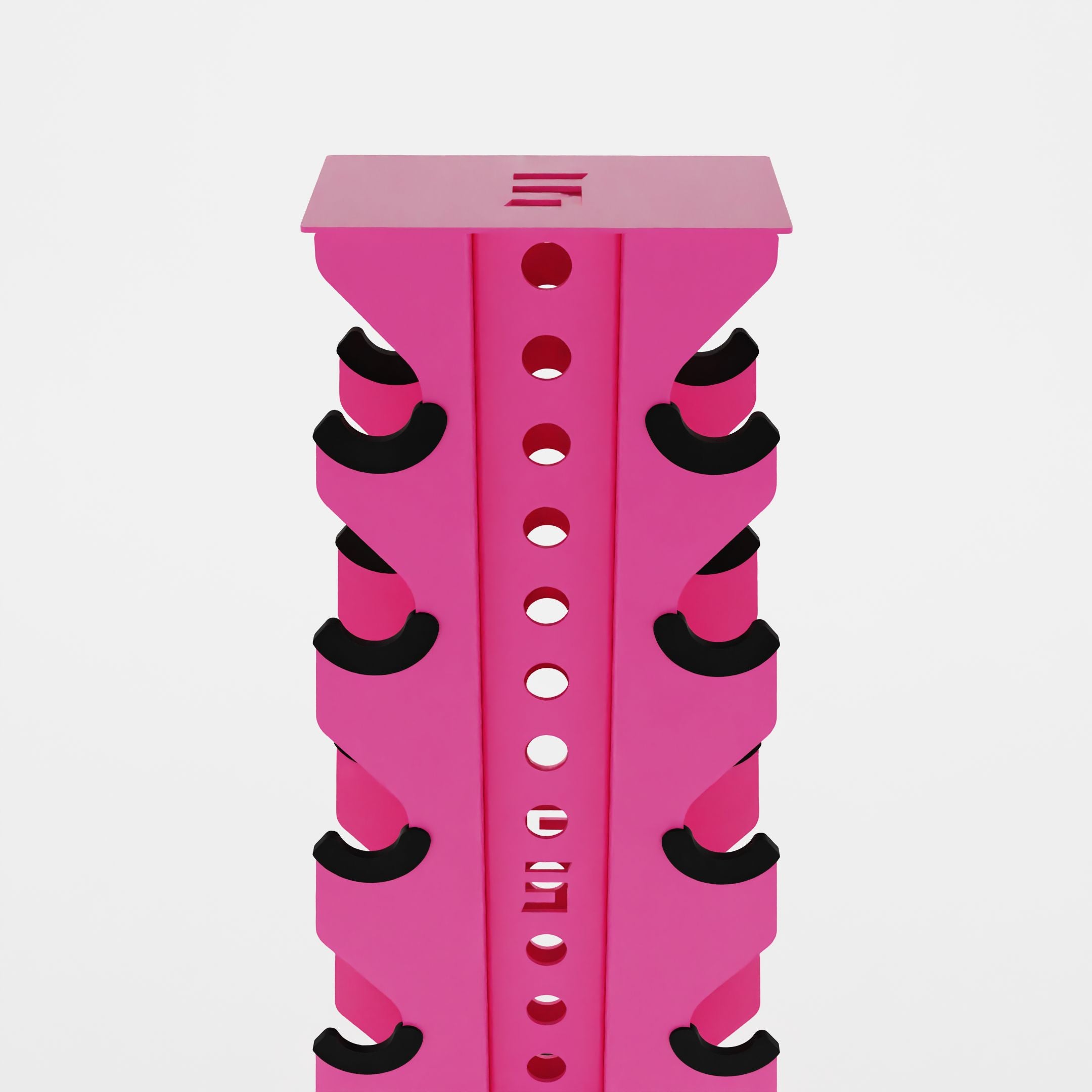

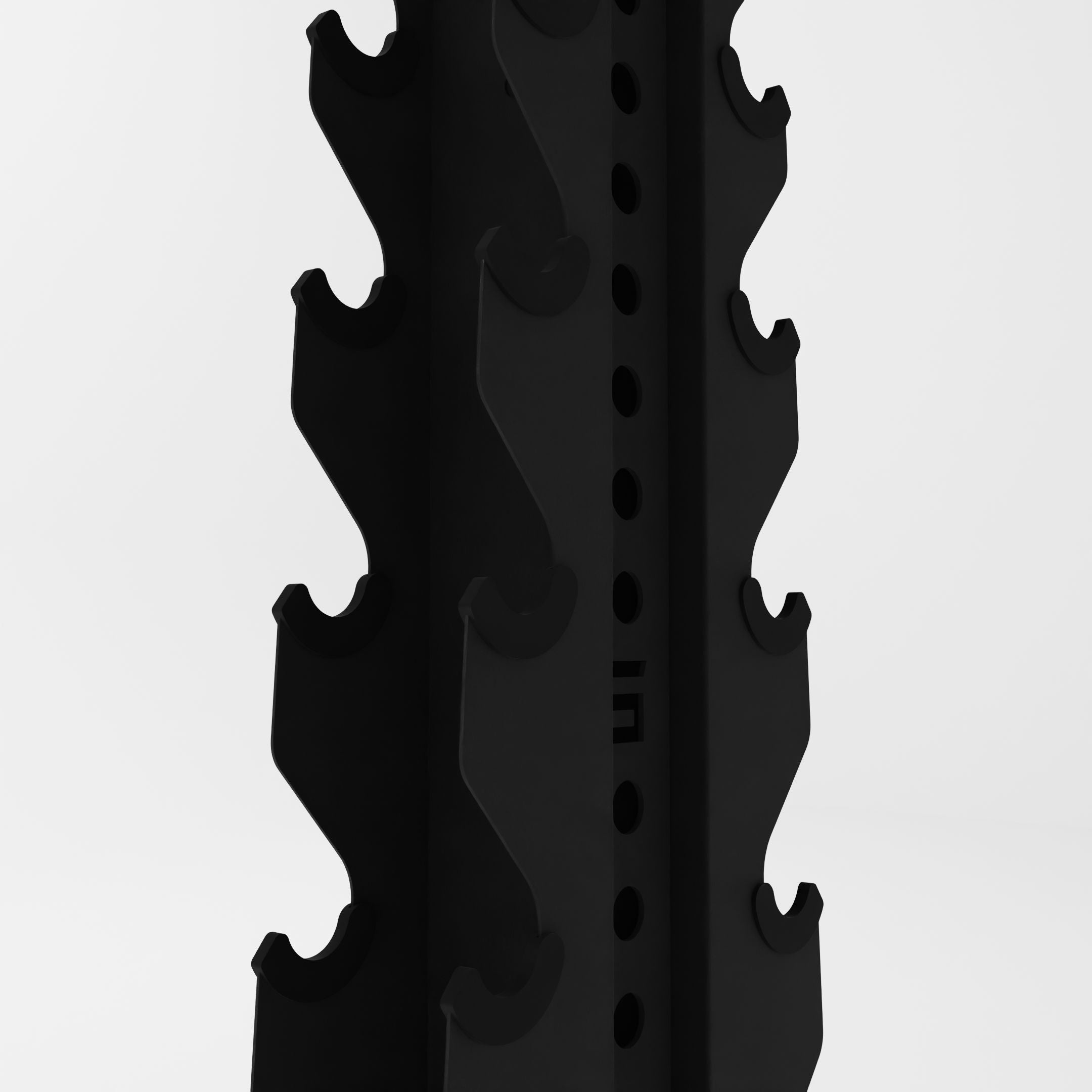

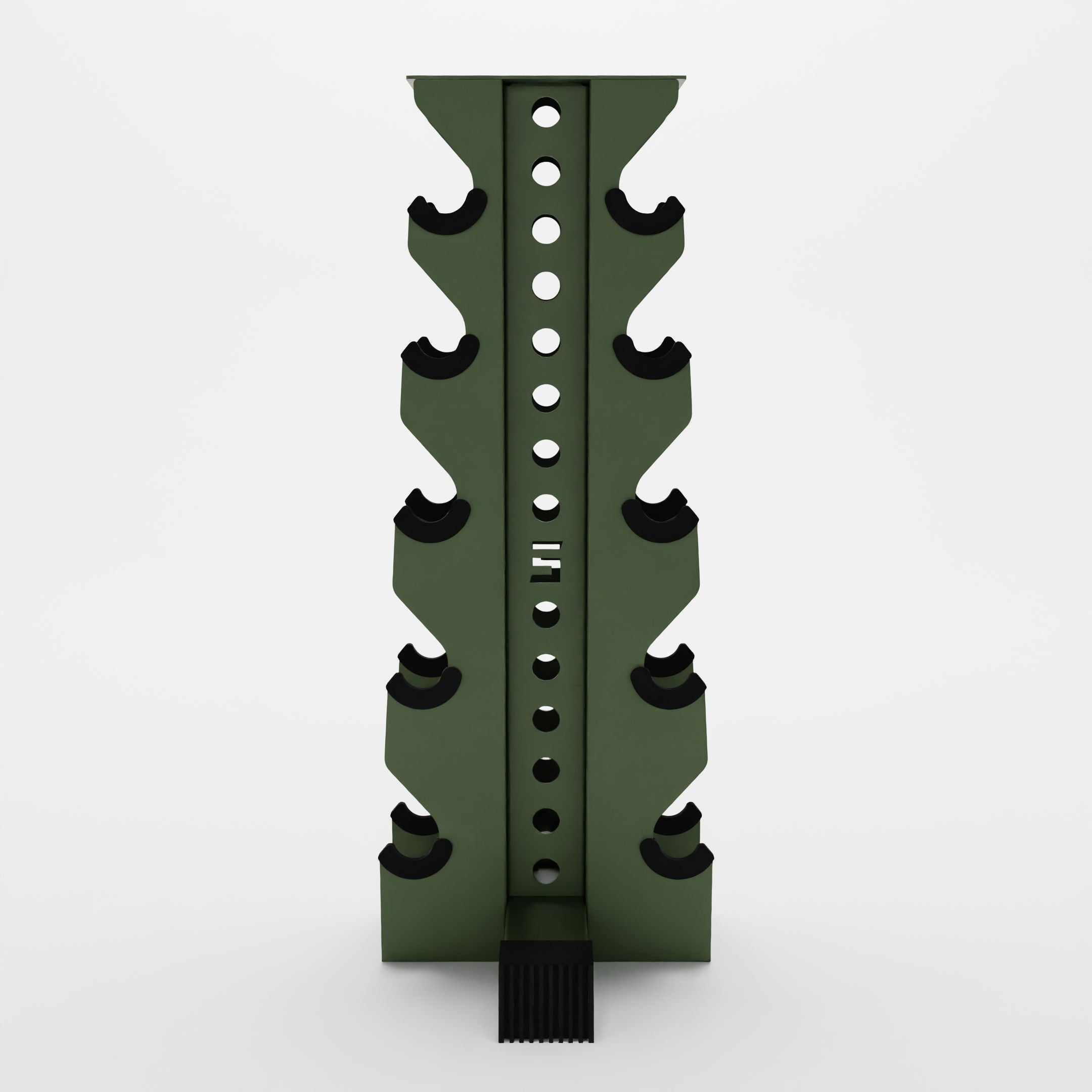

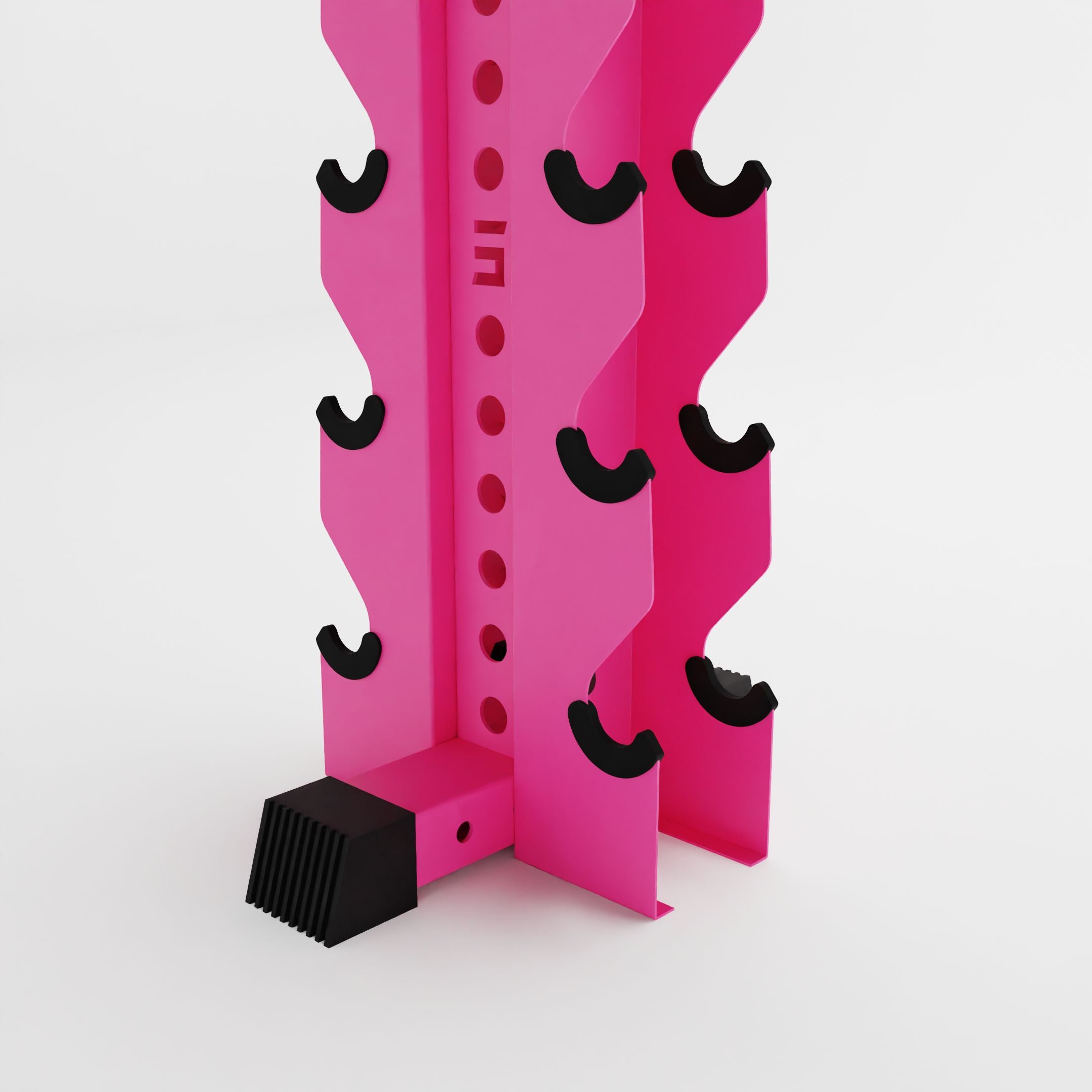

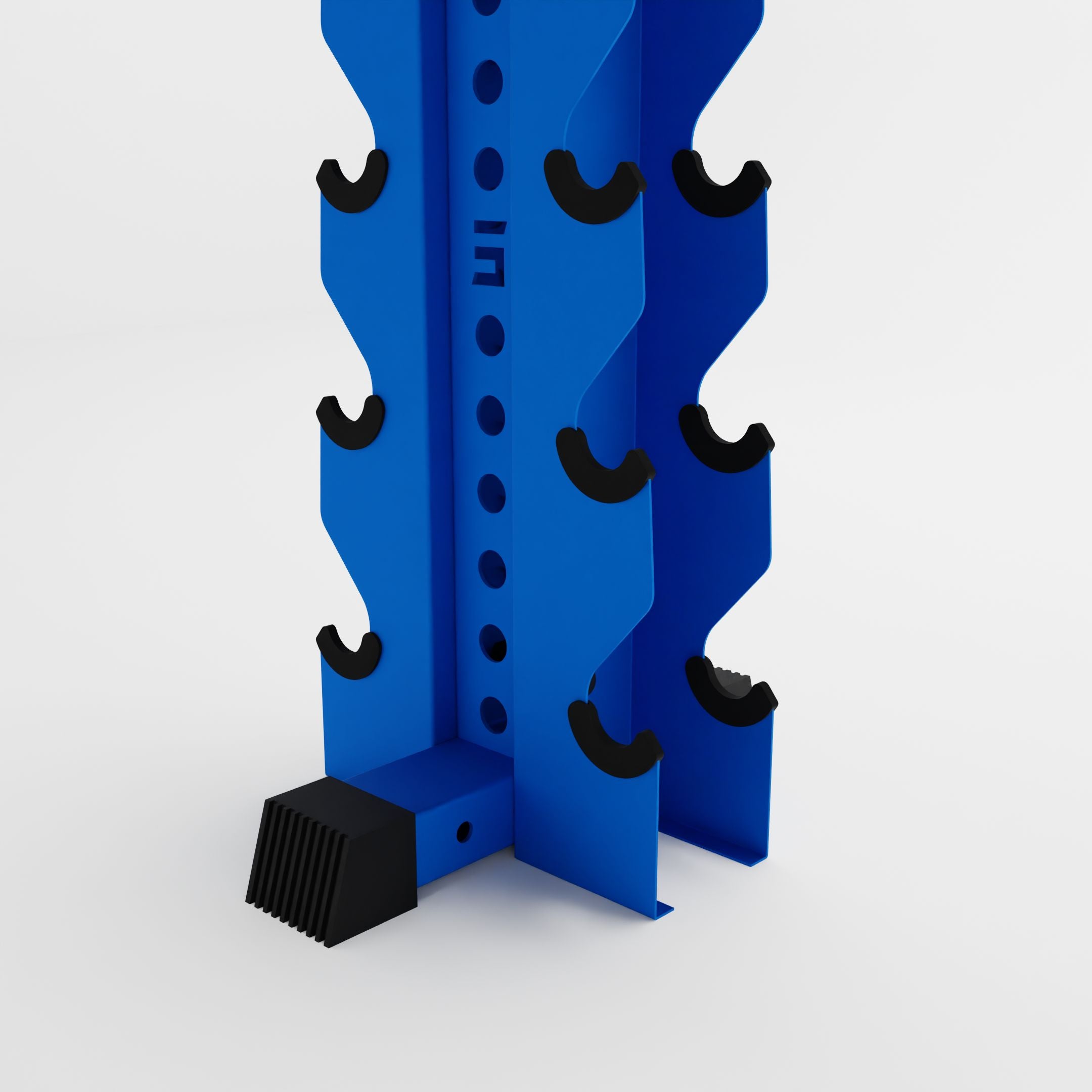

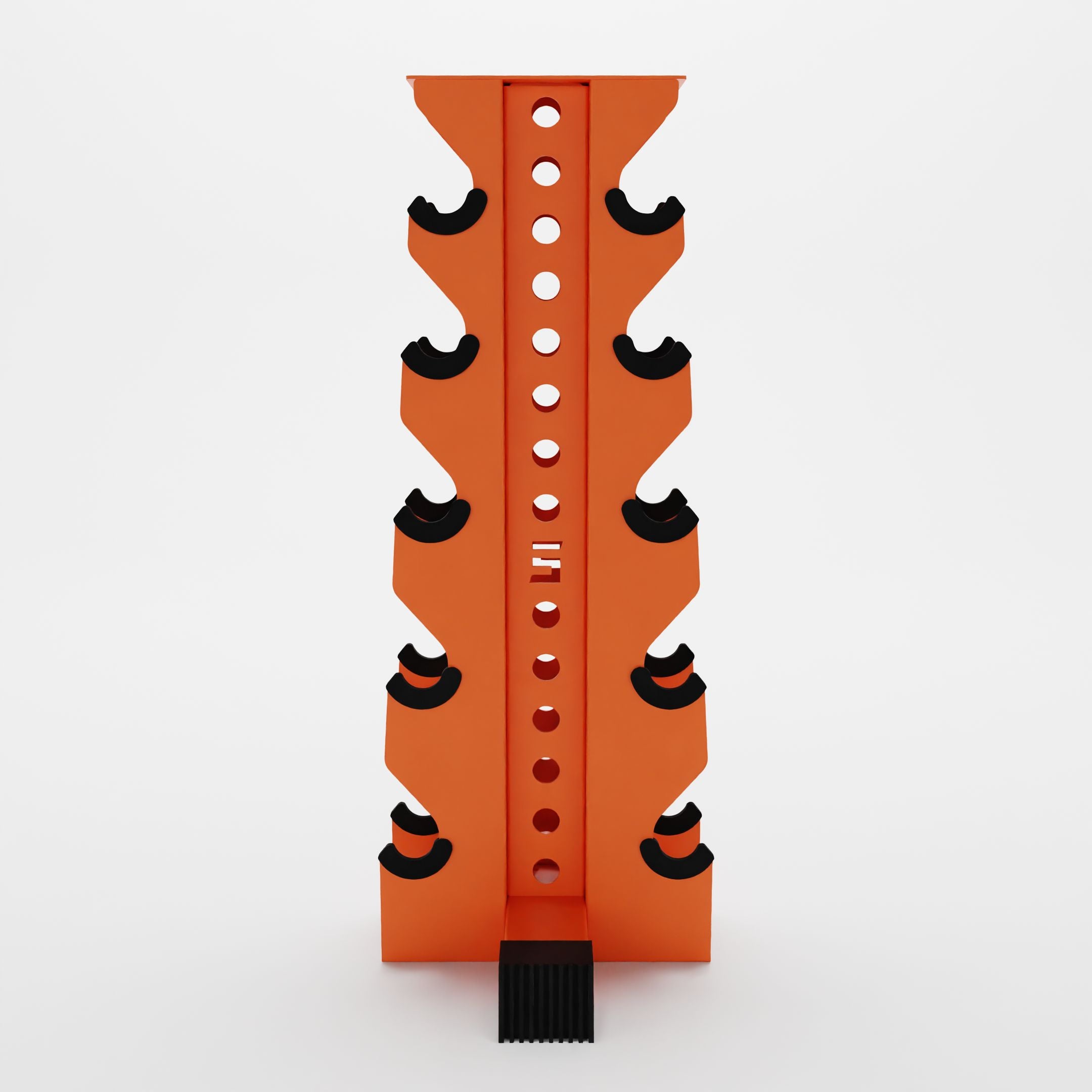

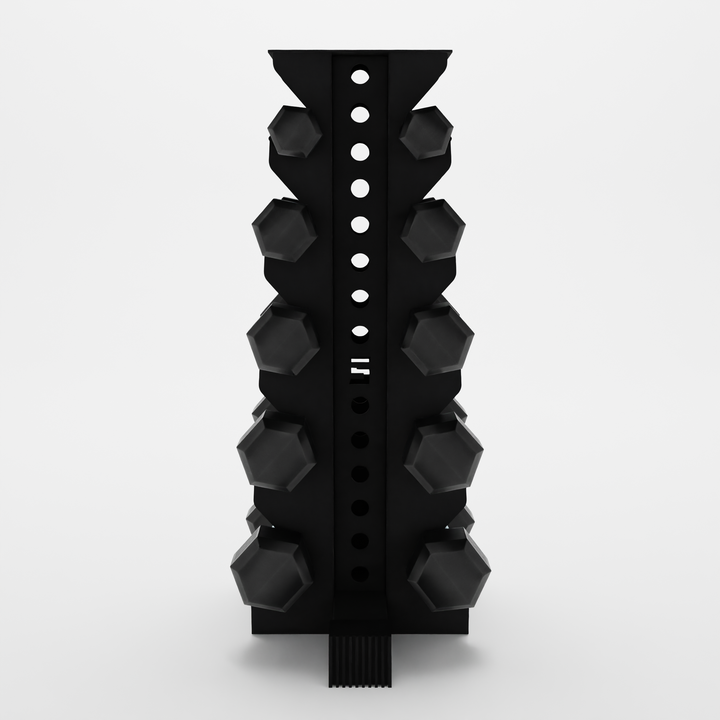

Bravo | 5-Tier Vertical Dumbbell Storage Rack
Overview

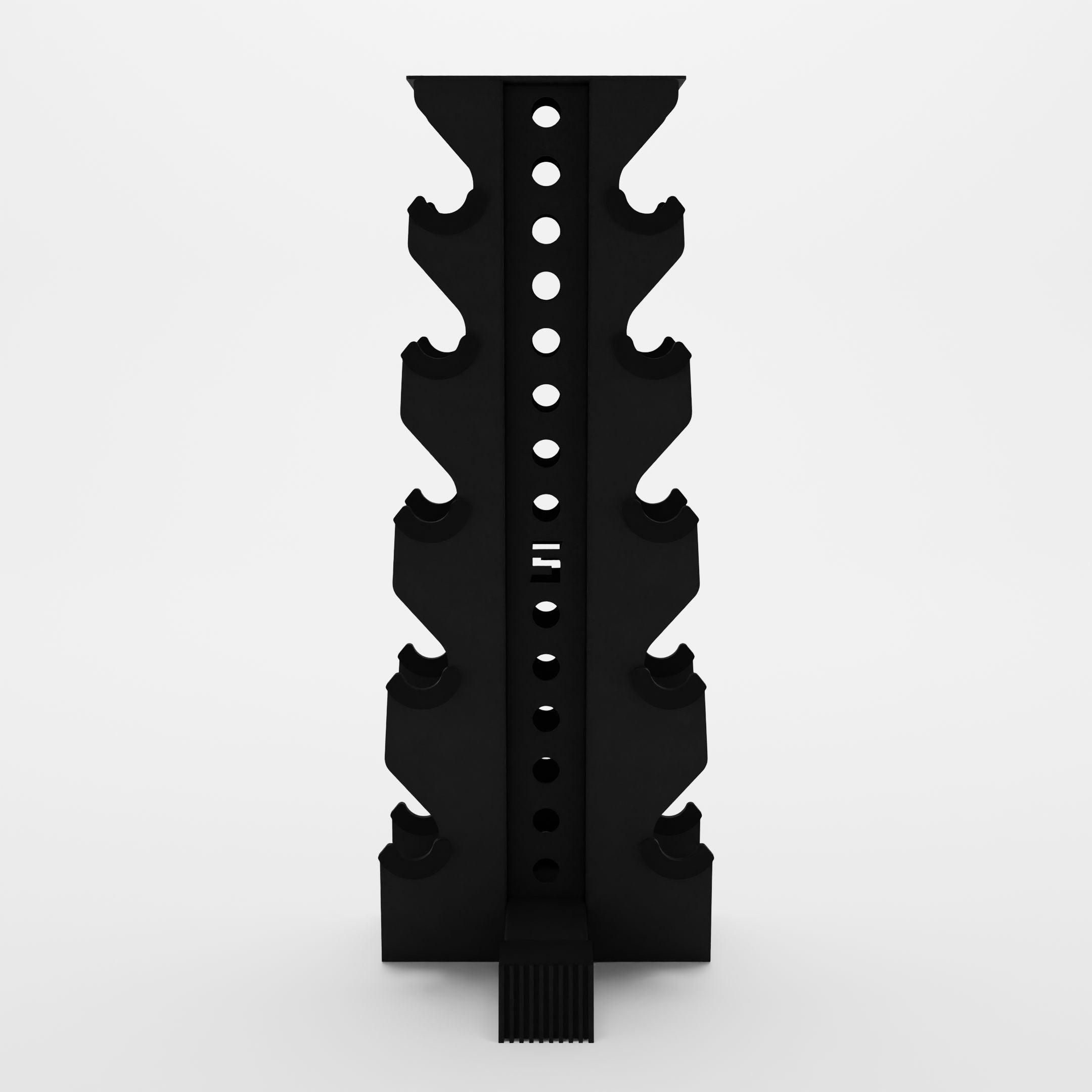

Our Bravo dumbbell rack is purpose-built to accommodate 5 pairs of hex dumbbells from 5–25 lb while maximizing your floor space through its vertical design. While the rack can accommodate heavier pairs, it is precision-optimized for the 5–25 lb range to ensure a seamless "clink-free" racking experience with maximum spacing between every tier.
Use our Dumbbell Configuration Calculator to verify if your dumbbells pairs will fit in each tier.

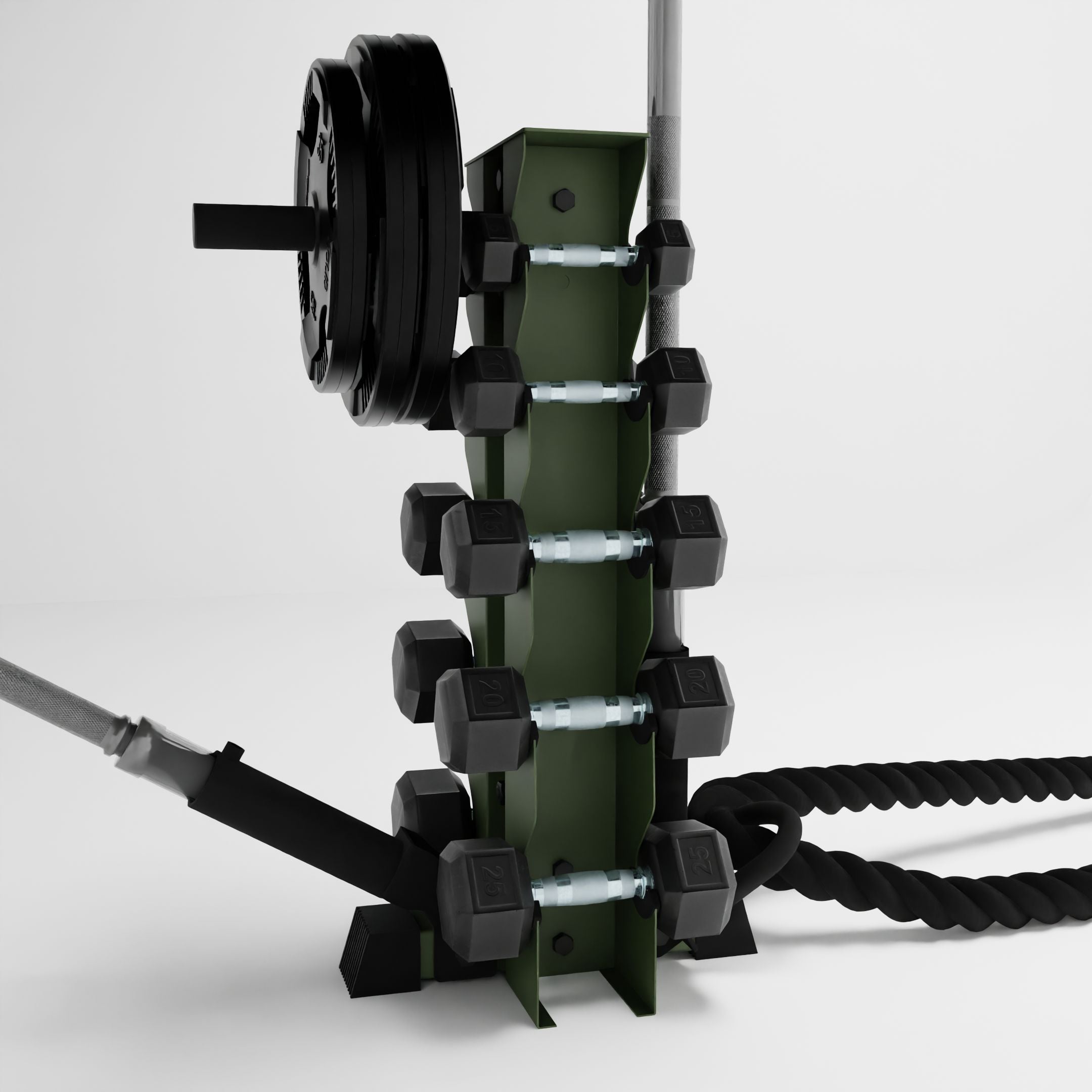

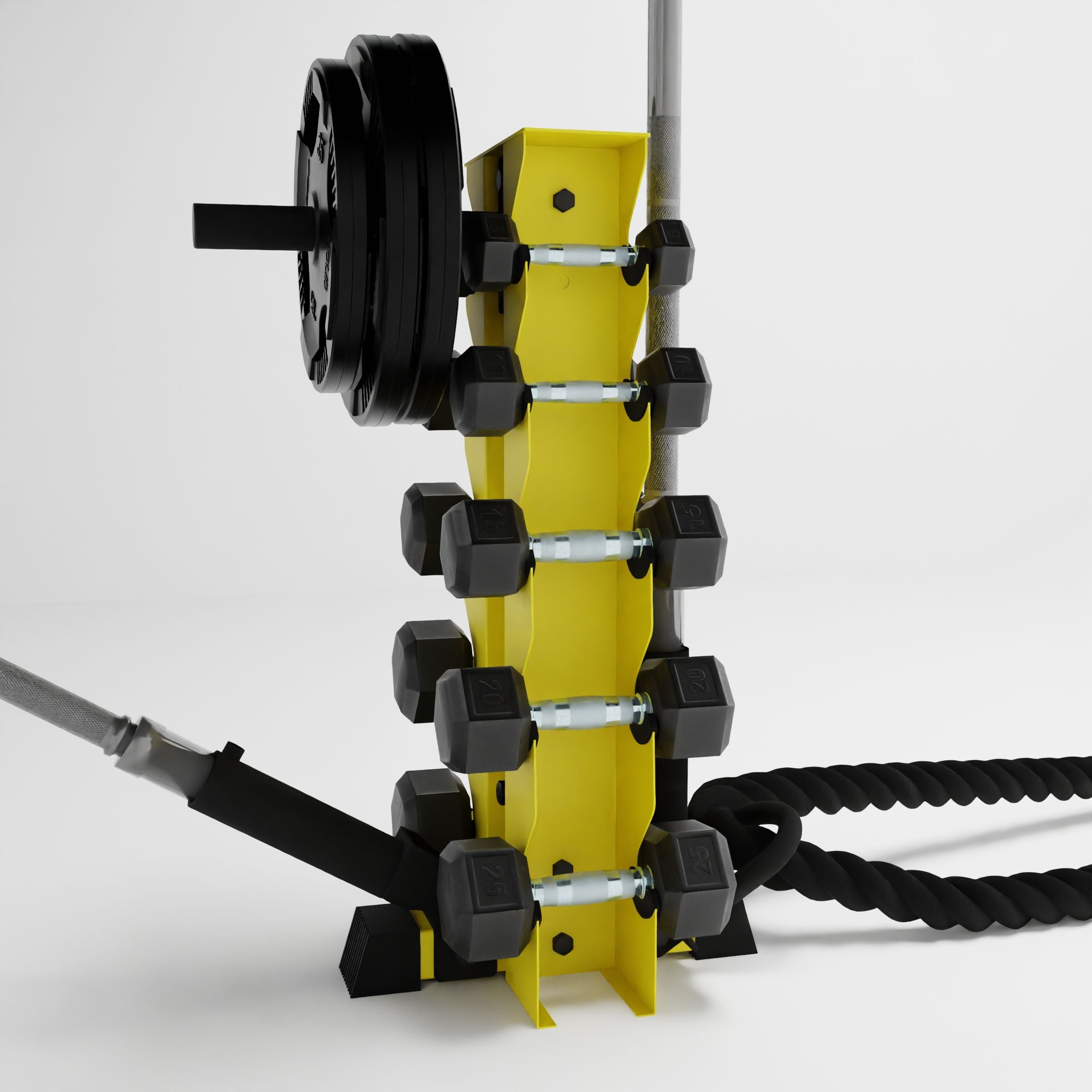

Crafted from it's sturdy 3x3" steel upright, the Bravo rack can also hold landmines, battle rope attachments, barbell holders, and plate holders.
*Popular colors are priced less to reflect higher production volume and lower manufacturing cost.
*Dumbbells not included
Will My Dumbbells Fit?
To ensure a safe, "clink-free" racking experience with enough space between tiers, please follow these fitment guidelines:
Use our Dumbbell Configuration Calculator
Don't guess—calculate. Use our Dumbbell Configuration Calculator to verify. By inputting your dumbbell diameters, you’ll see the precise available vertical space between your weights based on our gap specs.
Loading Logic (Light-to-Heavy)
Dumbbell heads grow larger as they get heavier. To maintain proper clearance, always load from Lightest (Top) to Heaviest (Bottom).
Important: Dumbbell diameters may vary by brand and style. A 25 lb dumbbell from "Brand A" may be larger than one from "Brand B." Generic hex dumbbells were used for our approximations. Do not rely on the weight alone—focus on the "Max Head Size" (Diameter) measurements provided below.
| Transition | Vertical Gap | Max Head Size (TOP) | Max Head Size (BOTTOM) | VERTICAL Space |
|---|---|---|---|---|
| Pair 1 to 2 | 5.00" | 3.00" (5-10 lb) | 4.50" (10-15 lb) | 1.25" |
| Pair 2 to 3 | 5.88" | 4.50" (10-15 lb) | 5.00" (20 lb) | 1.13" |
| Pair 3 to 4 | 6.19" | 5.00" (20 lb) | 5.30" (20-25 lb) | 1.04" |
| Pair 4 to 5 | 6.63" | 5.25" (20-25 lb) | 6.00" (30-35 lb) | 1.00" |
Chart Terminology & Fitment Definitions
Transition: Identifies the specific pair of tiers being measured (e.g., Tier 4 to 5 is the space between the fourth tier and the bottom tier).
Vertical Gap: The gap between two tiers.
Max Head Size (Top): The largest allowable diameter (width of the heavy "head") for the dumbbell on the upper tier of the pair. Example: In Tier 1 to 2, the top is Tier 1.
Max Head Size (Bottom): The largest allowable diameter for the dumbbell on the lower tier of the pair. Example: In Tier 1 to 2, the bottom is Tier 2.
Vertical Space: The available space between each head of the weights. Note: The value shown is the clearance remaining if the maximum head size is chosen for both the Top and Bottom positions in that transition. If your weights are smaller than the "Max" listed, your air space will be even larger.
The "Heavy Weight" Trade-Off
You can store a 45 lb dumbbell (6.9" head) on the bottom tier, for example, but this requires the weights stored directly above it to be much lighter and smaller (e.g., 5 lb, 10 lb, or 15 lb). Storing a 30 lb+ weight directly above a 45 lb weight will reduce your tier spacing to below 0.5".
Features & Benefits

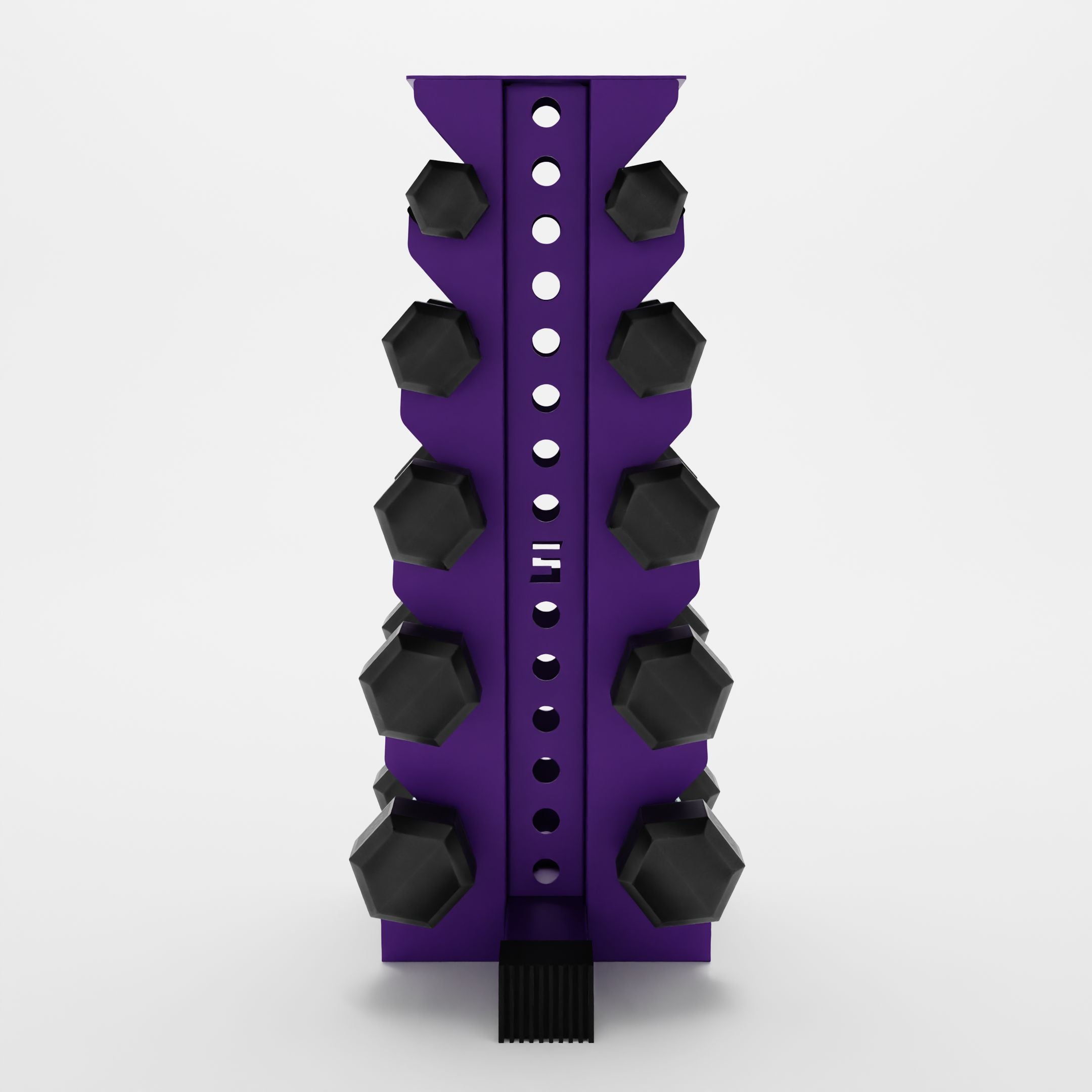

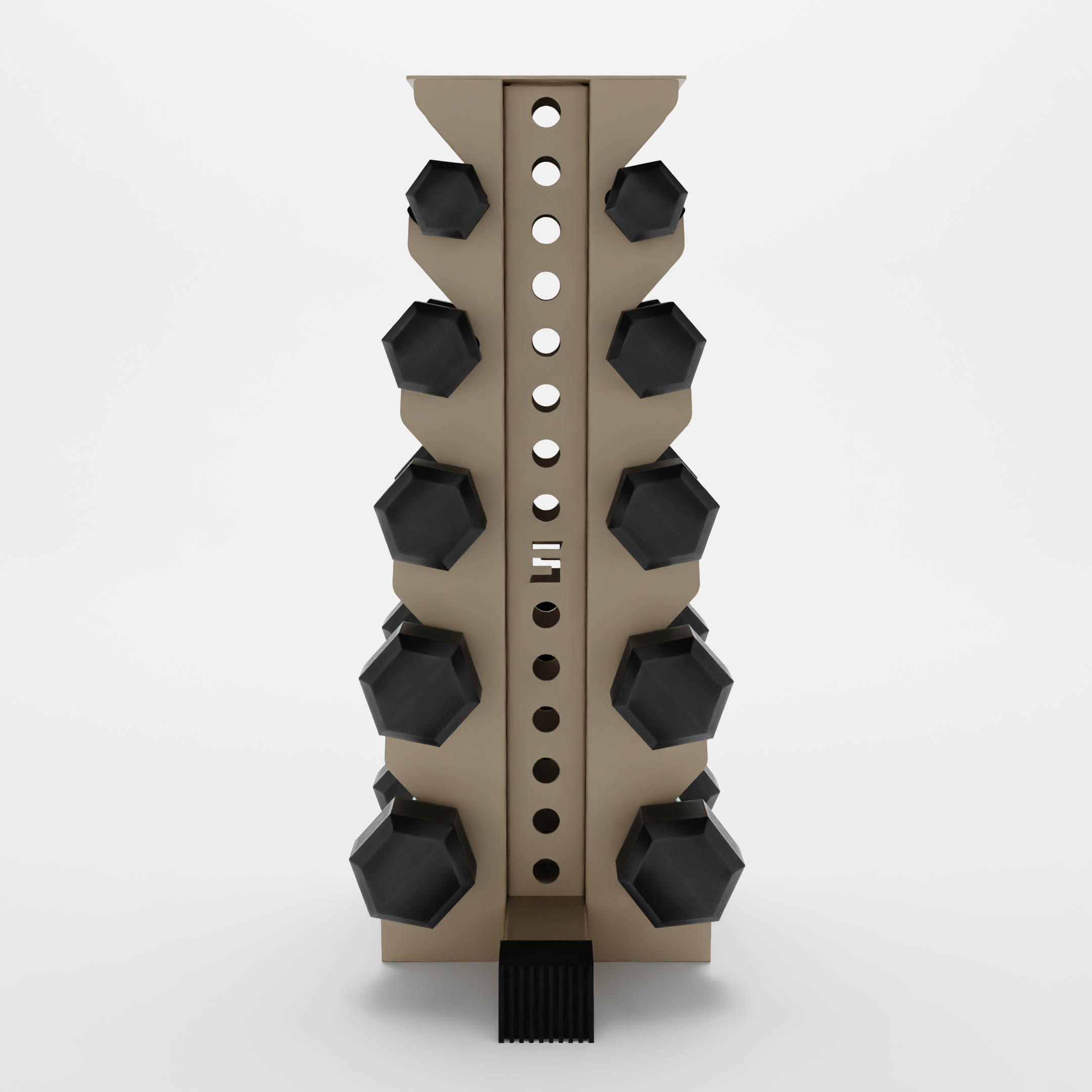

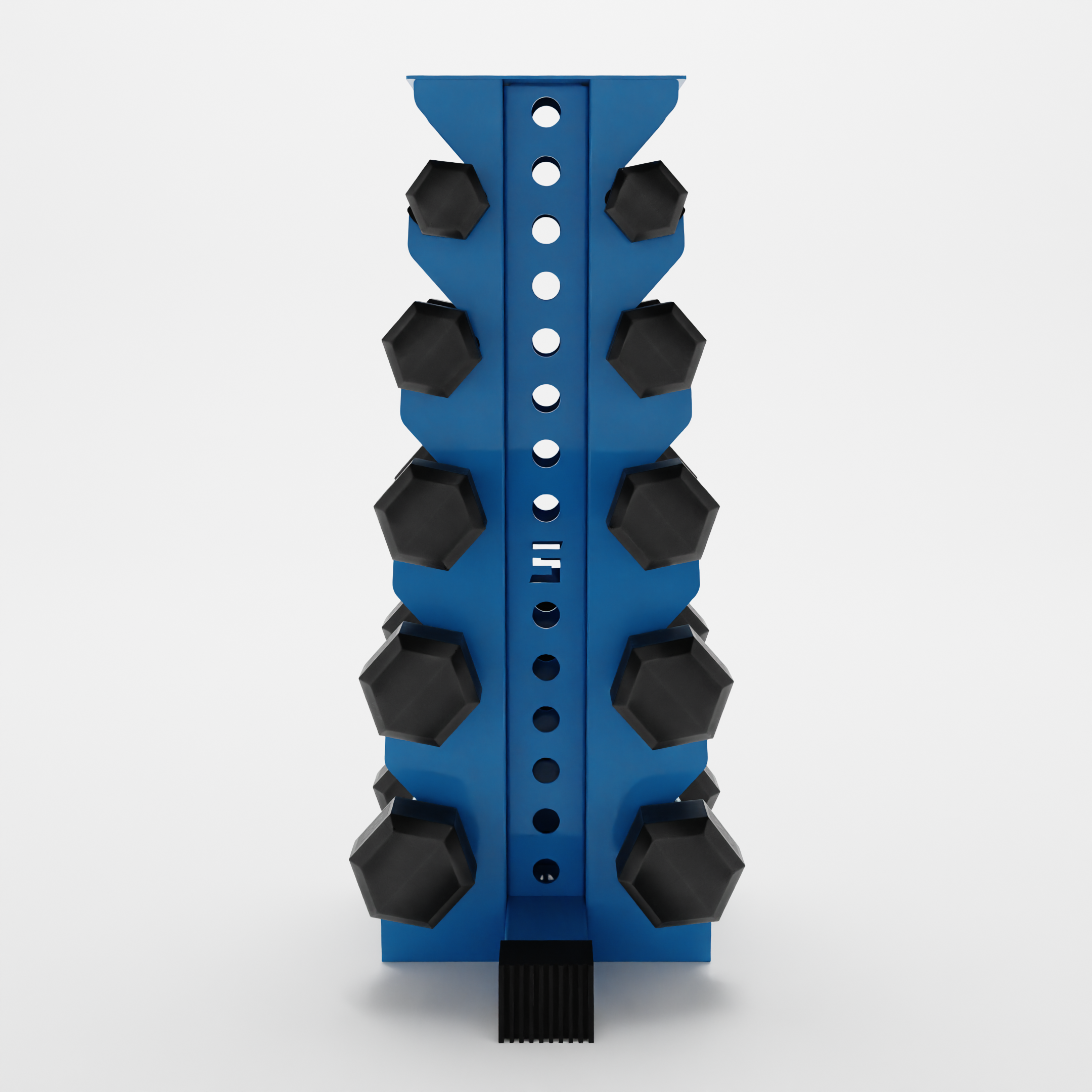

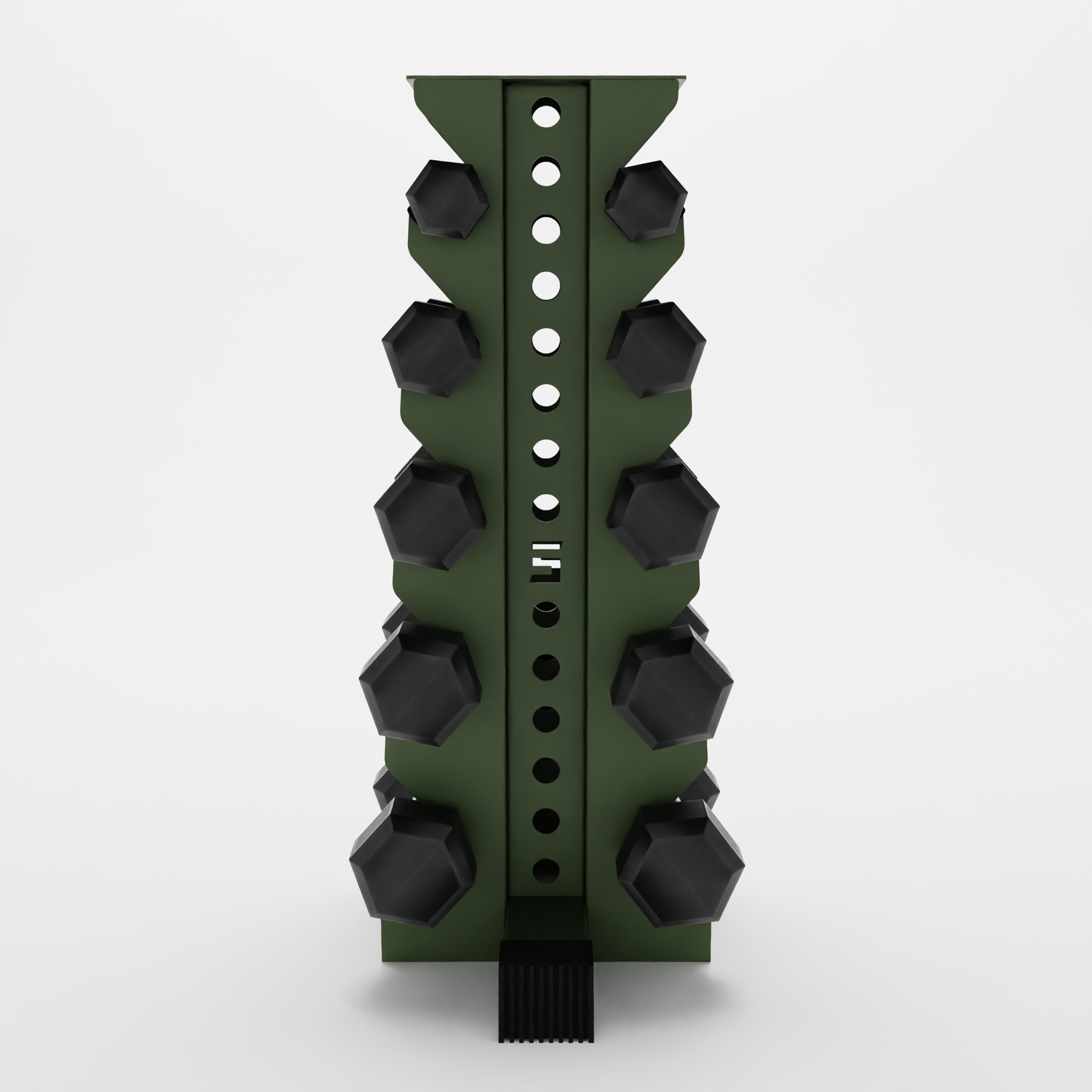

5-Tier Support: Our Bravo rack holds 5 pairs of hex dumbbells and is purpose-built for a set from 5–25 lb.

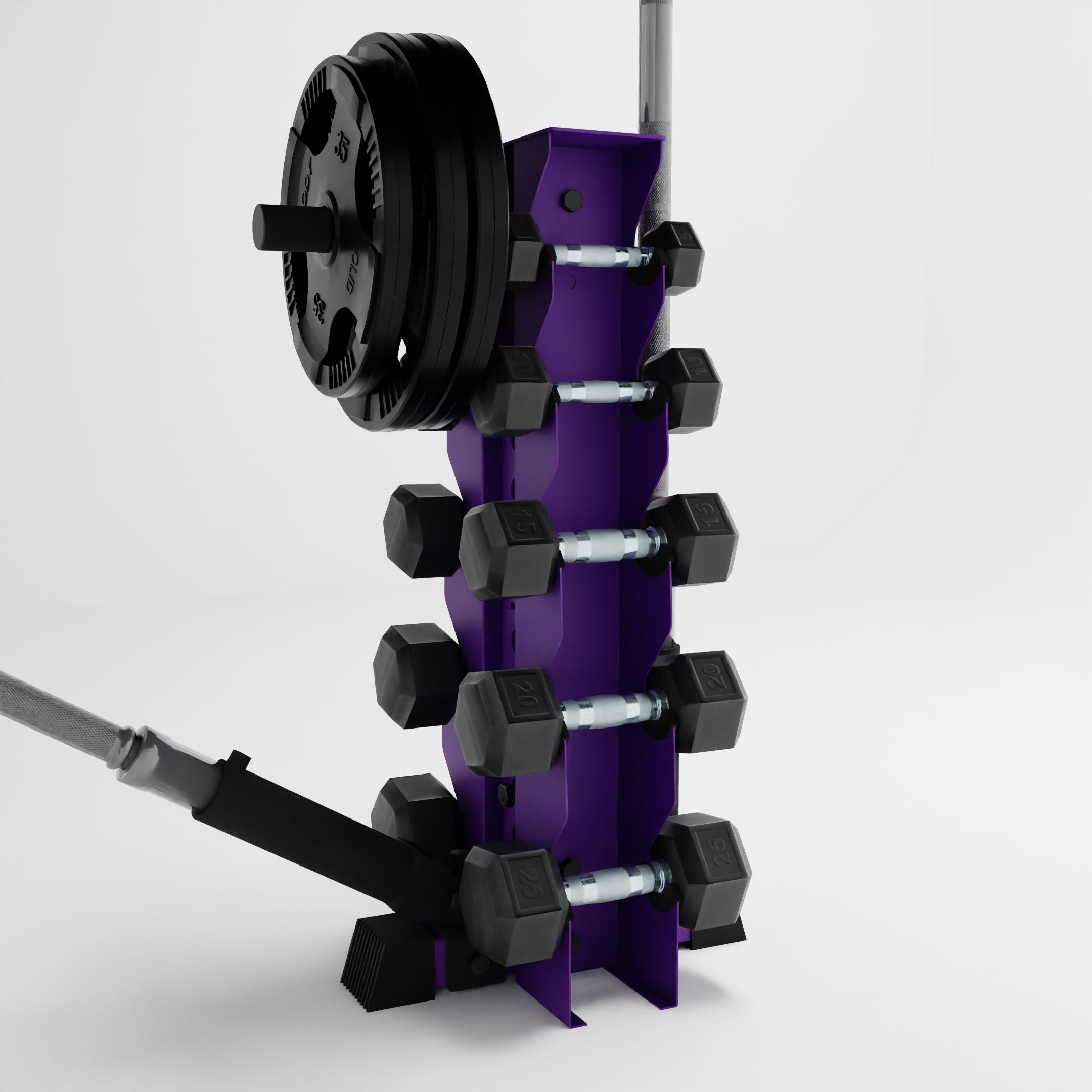

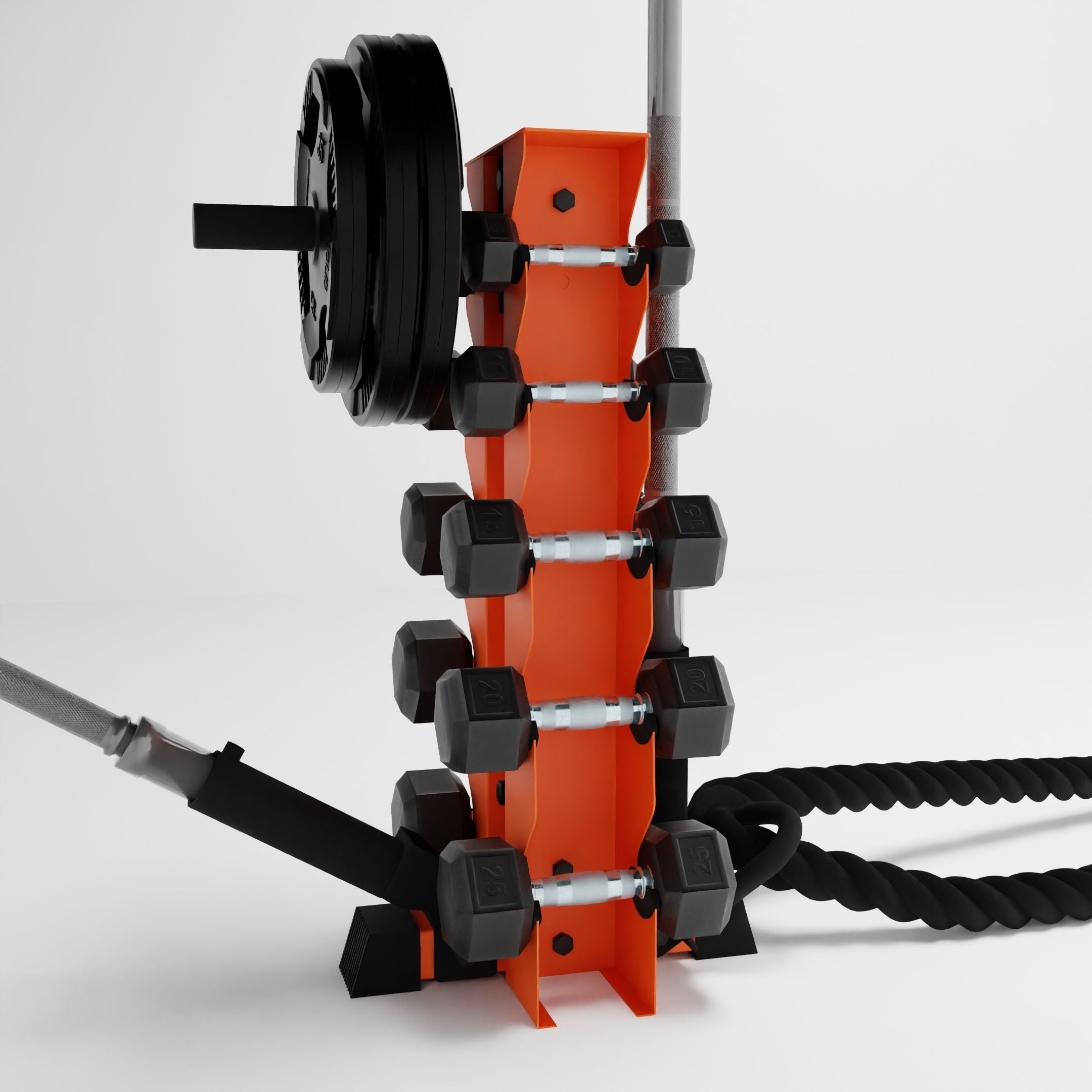

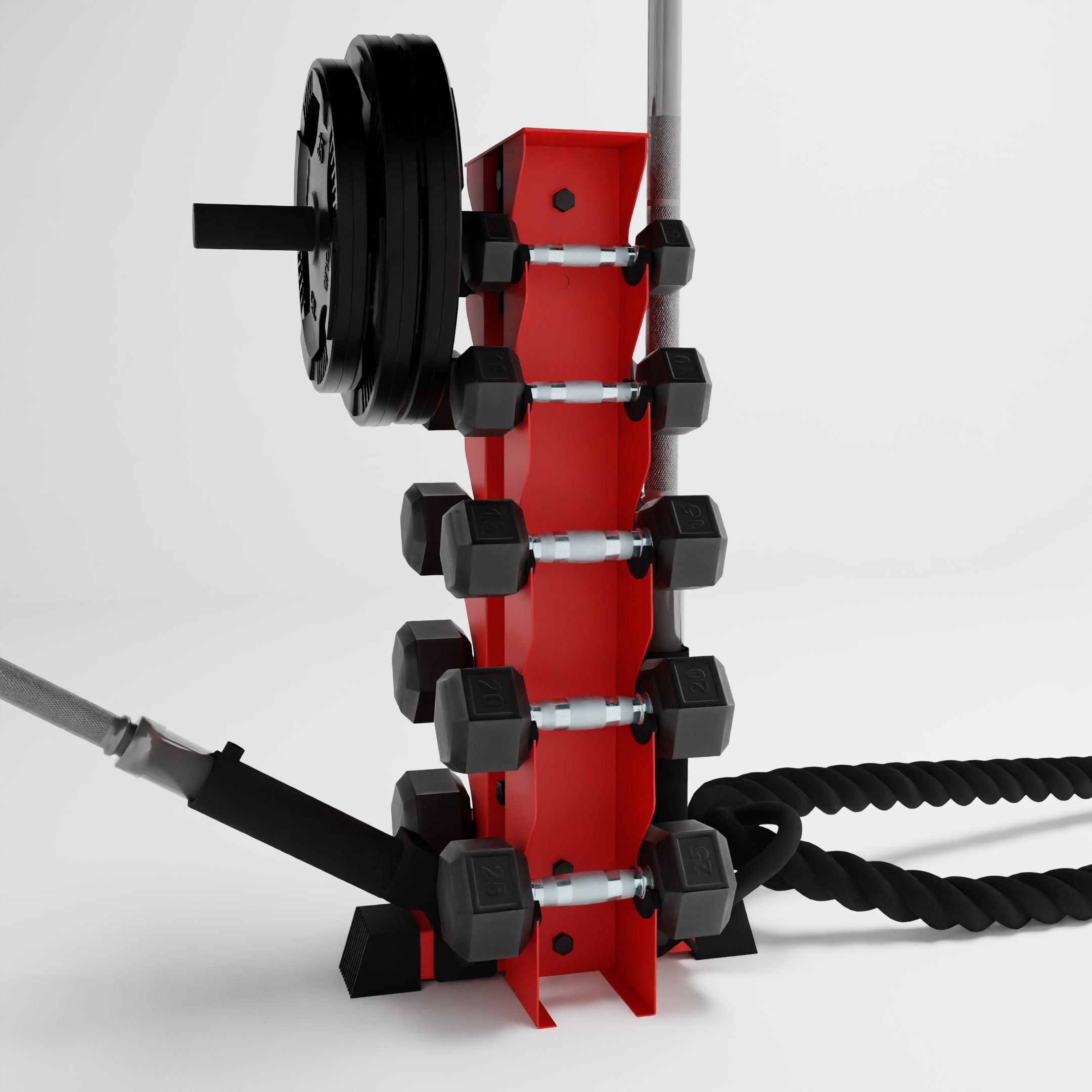

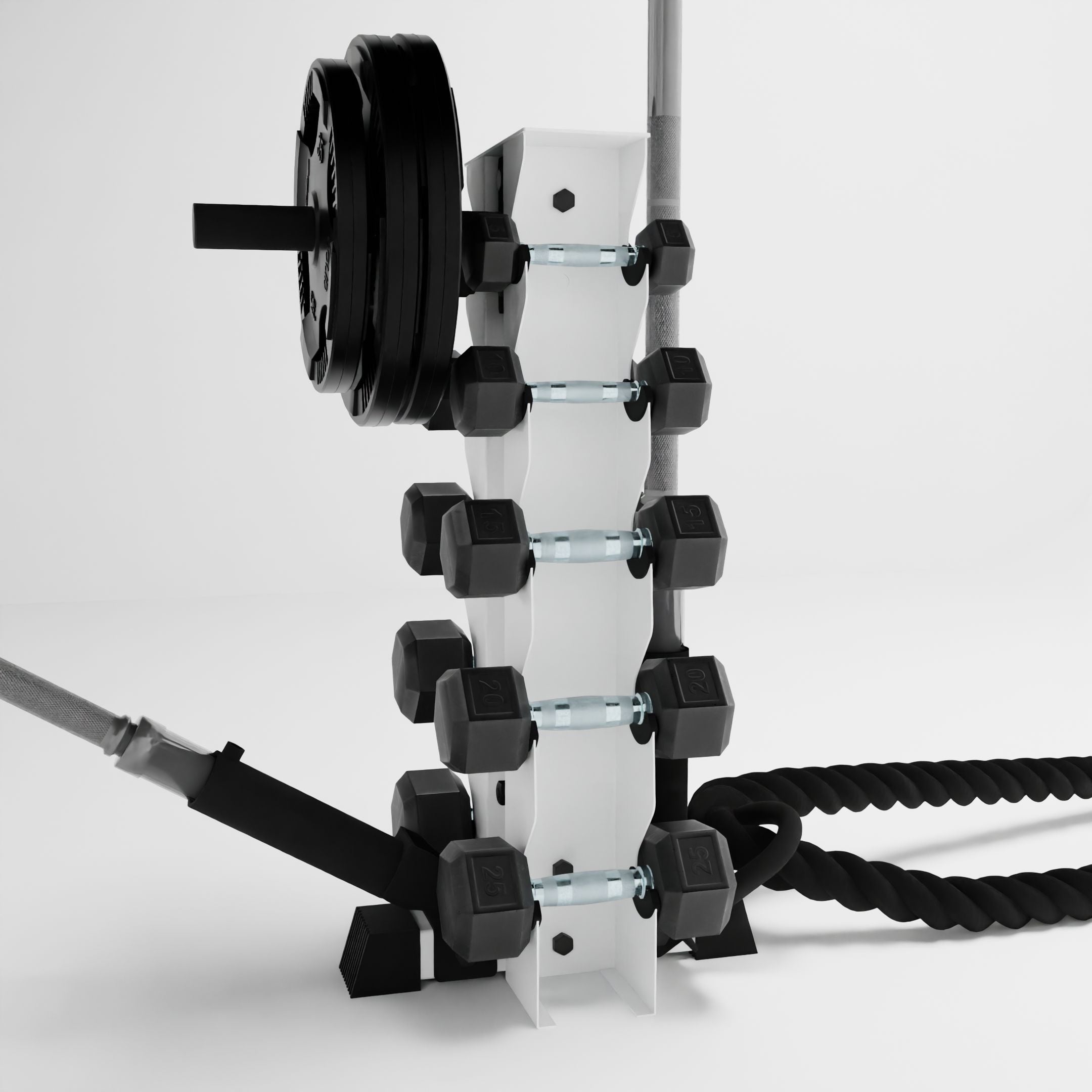

Hold Accessories: Our Bravo rack upright allows you to store landmines, battle rope attachments, barbell holders, and plate holders - all with the exact same footprint.

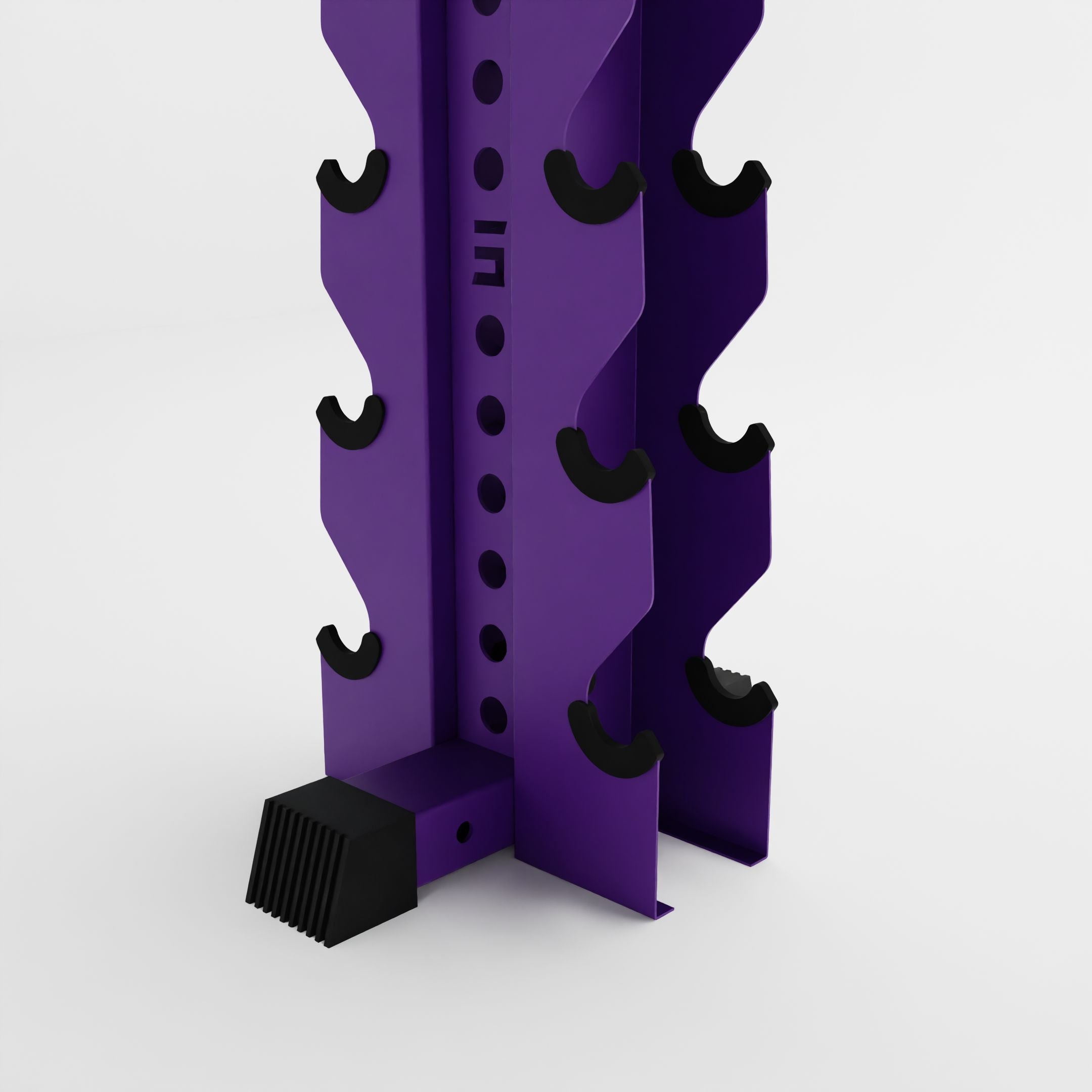

Solid and Dependable: The 11 gauge steel frame guarantees outstanding stability, and rubber feet are included to prevent any sliding or floor damage, particularly on hardwood or tile surfaces.
Expand Into a Horizontal Rack When Ready: With its modular functionality, our Bravo rack also converts into a 2-tier full size horizontal rack with our Expansion Kit.
Easy to Assemble: The simplicity of our dumbbell rack is its charm; this rack can be set up in just a few minutes with all the tools you need included in your purchase.
Specifications
Model Number: DBRK5

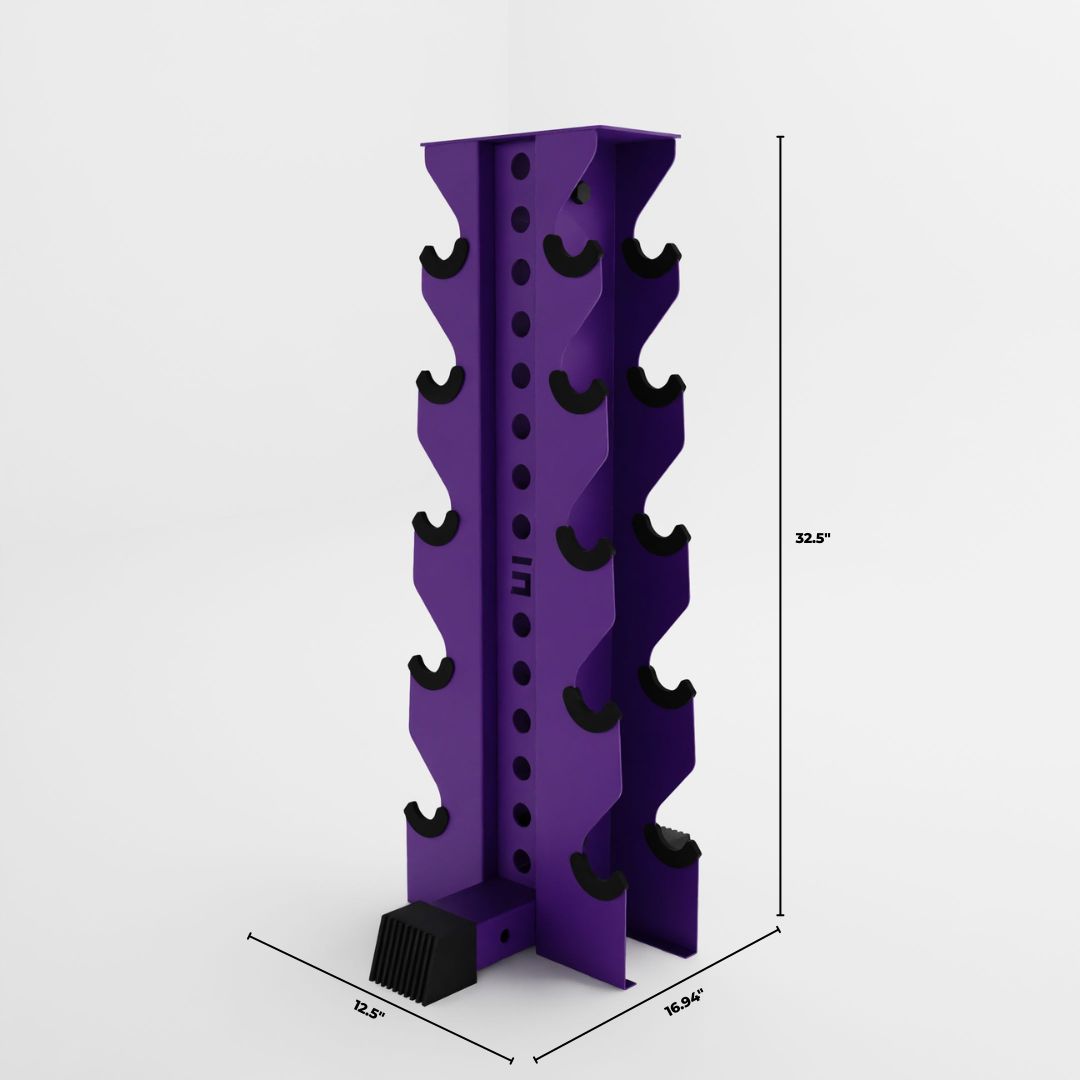

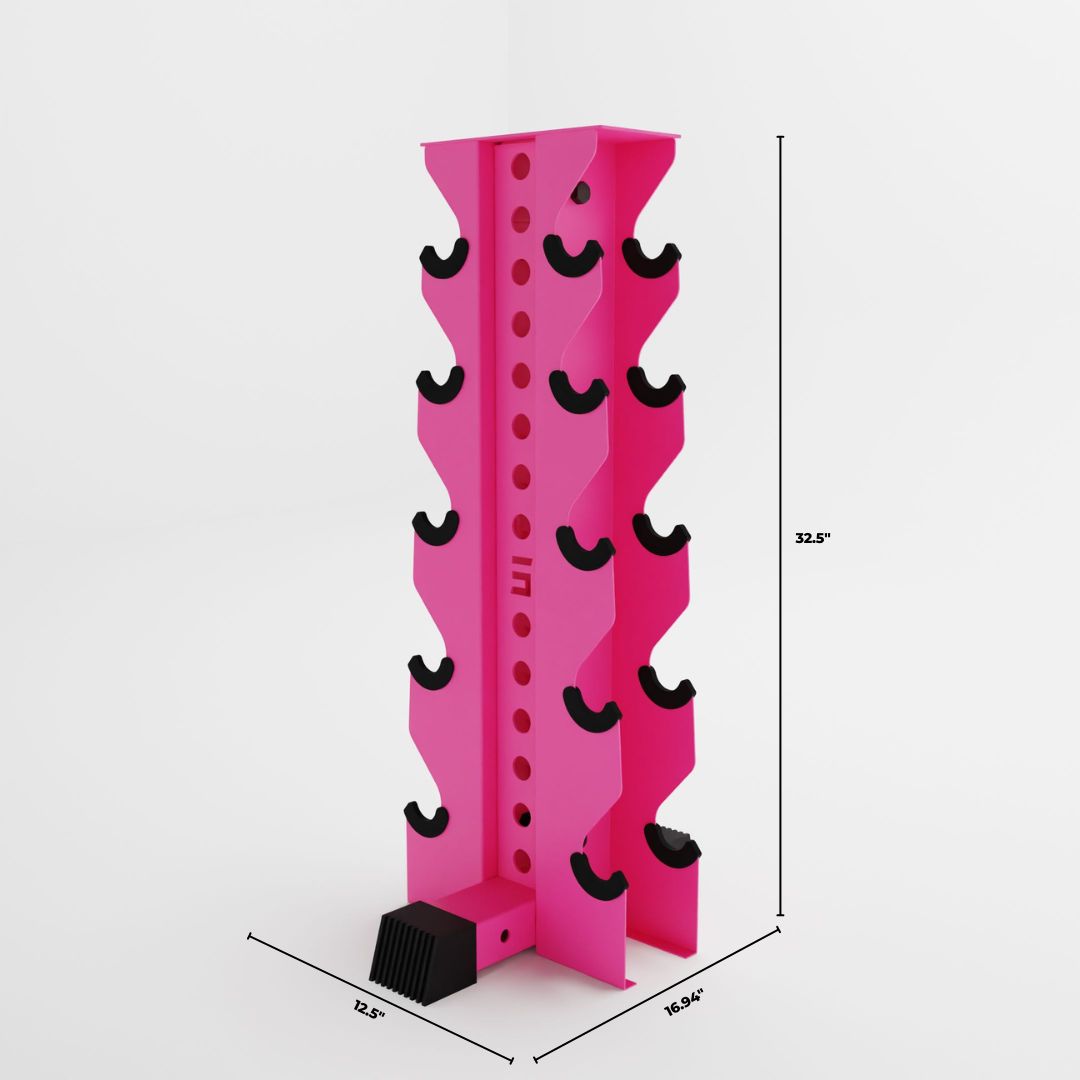

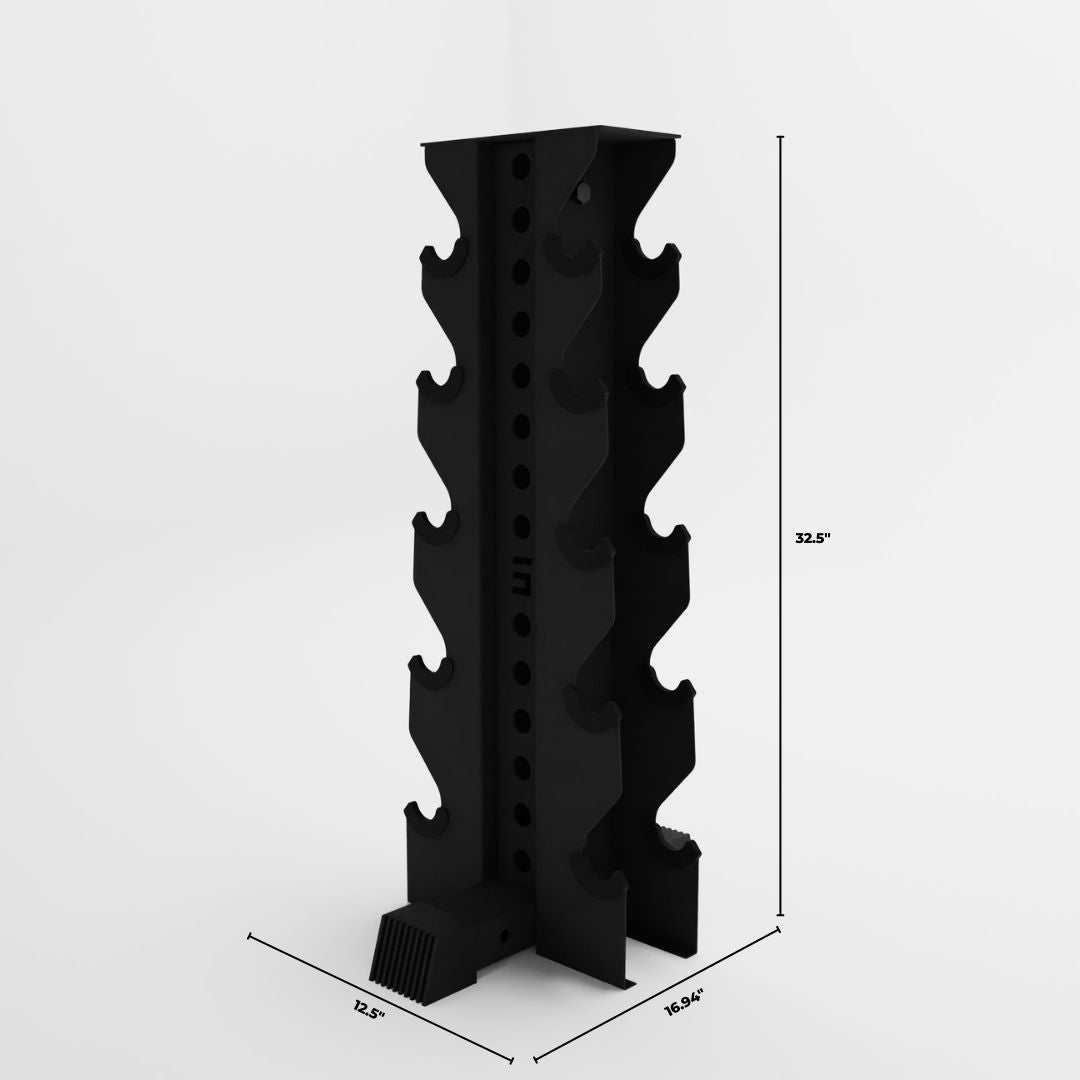

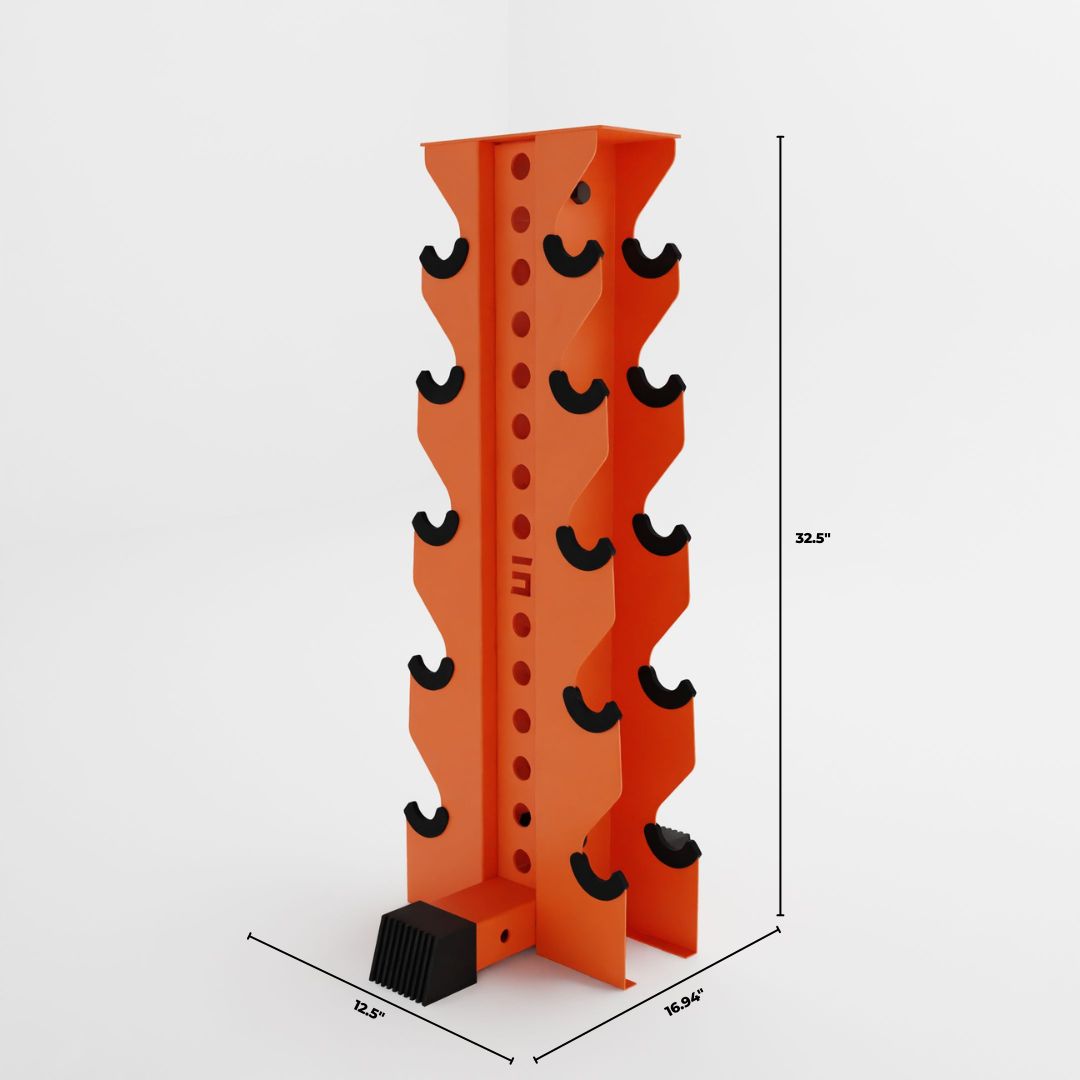

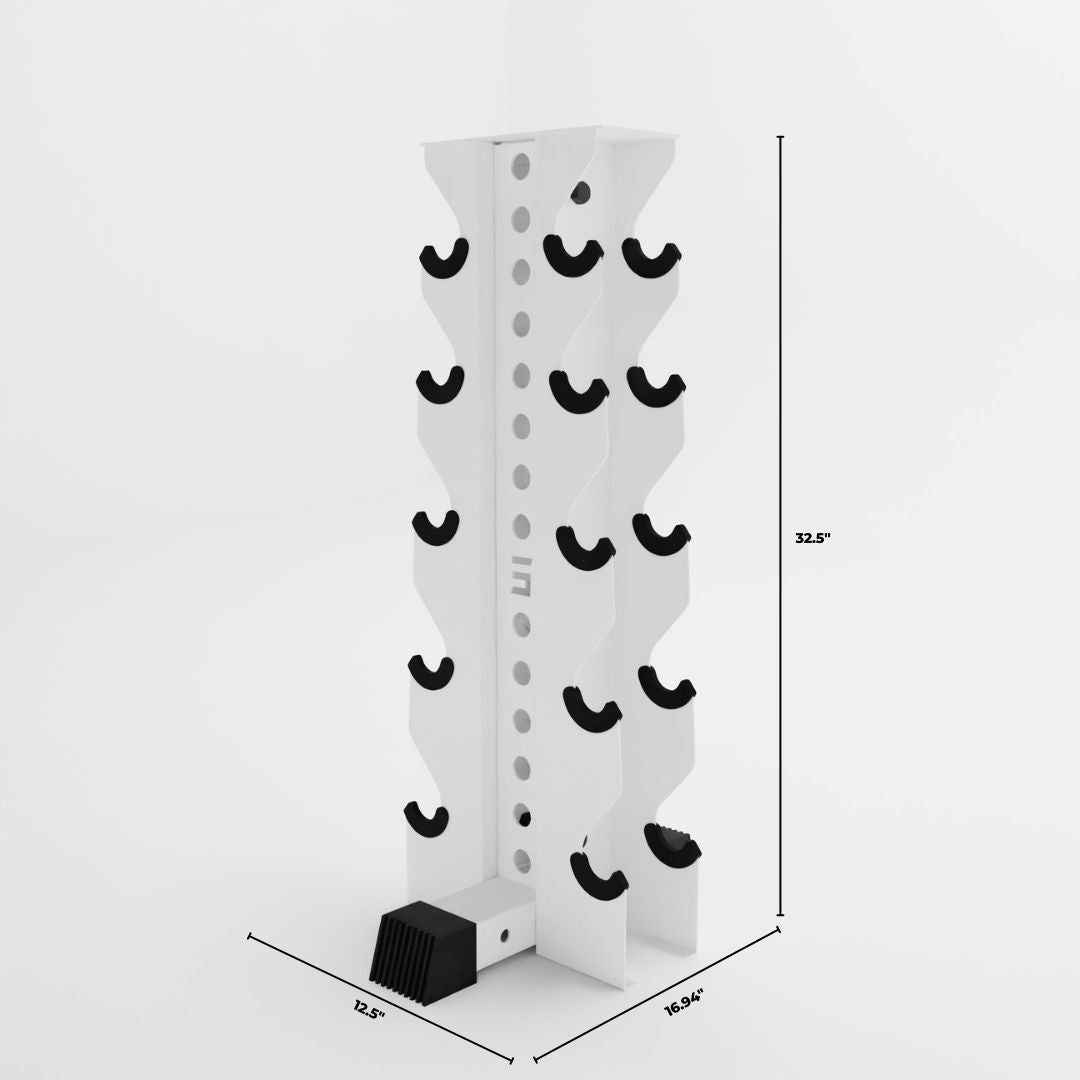

Dimension: 32.50" H x 12.50" W x 16.94" D

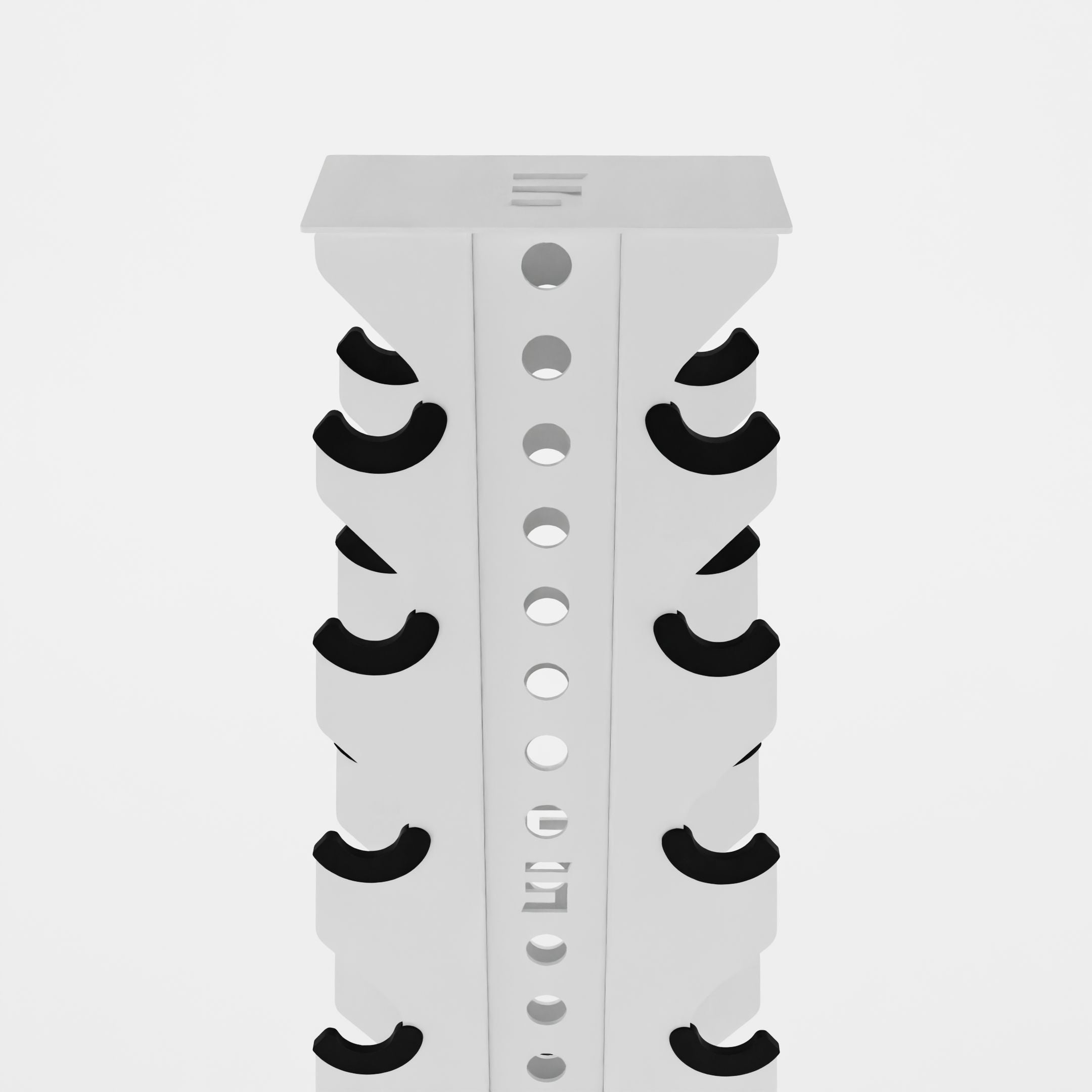

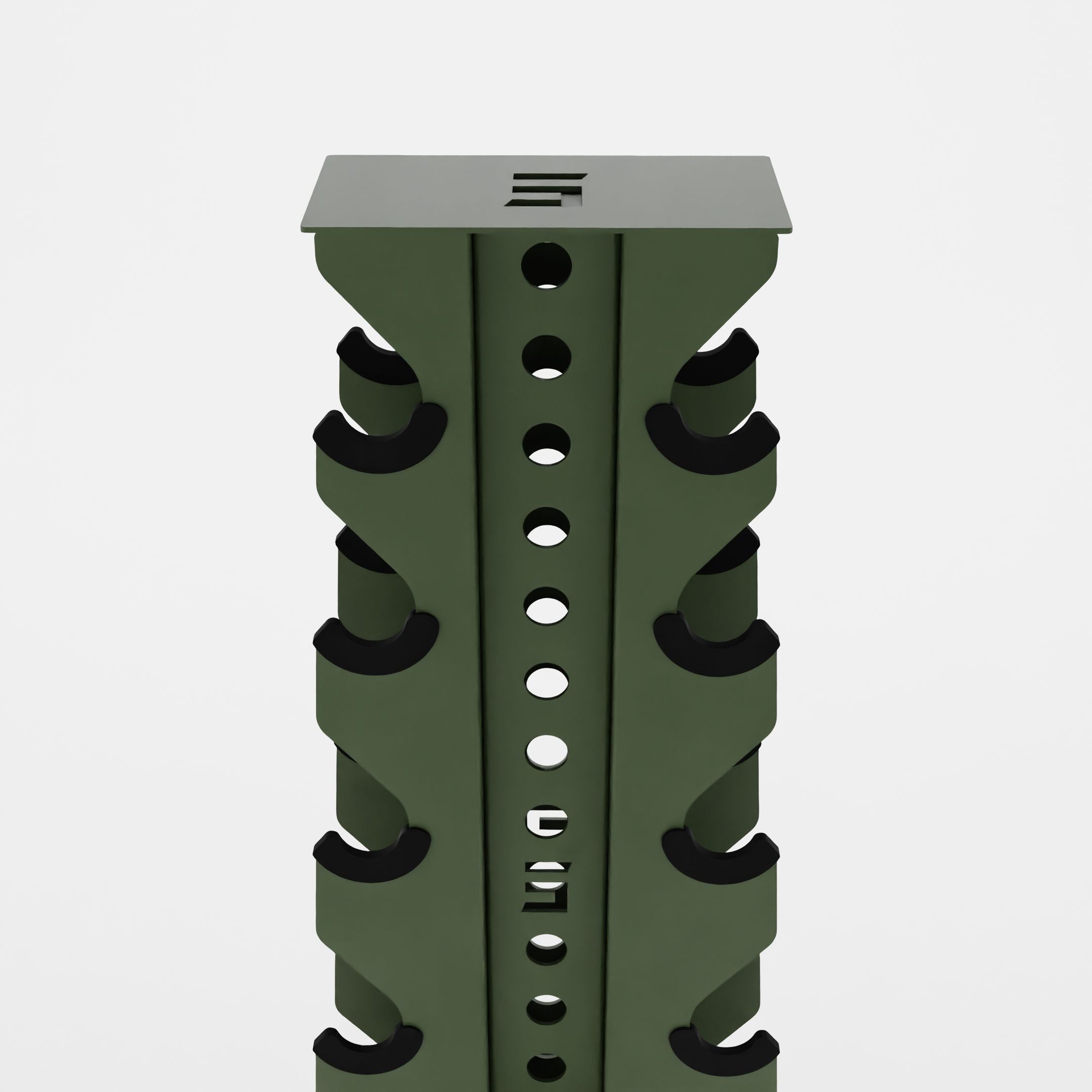

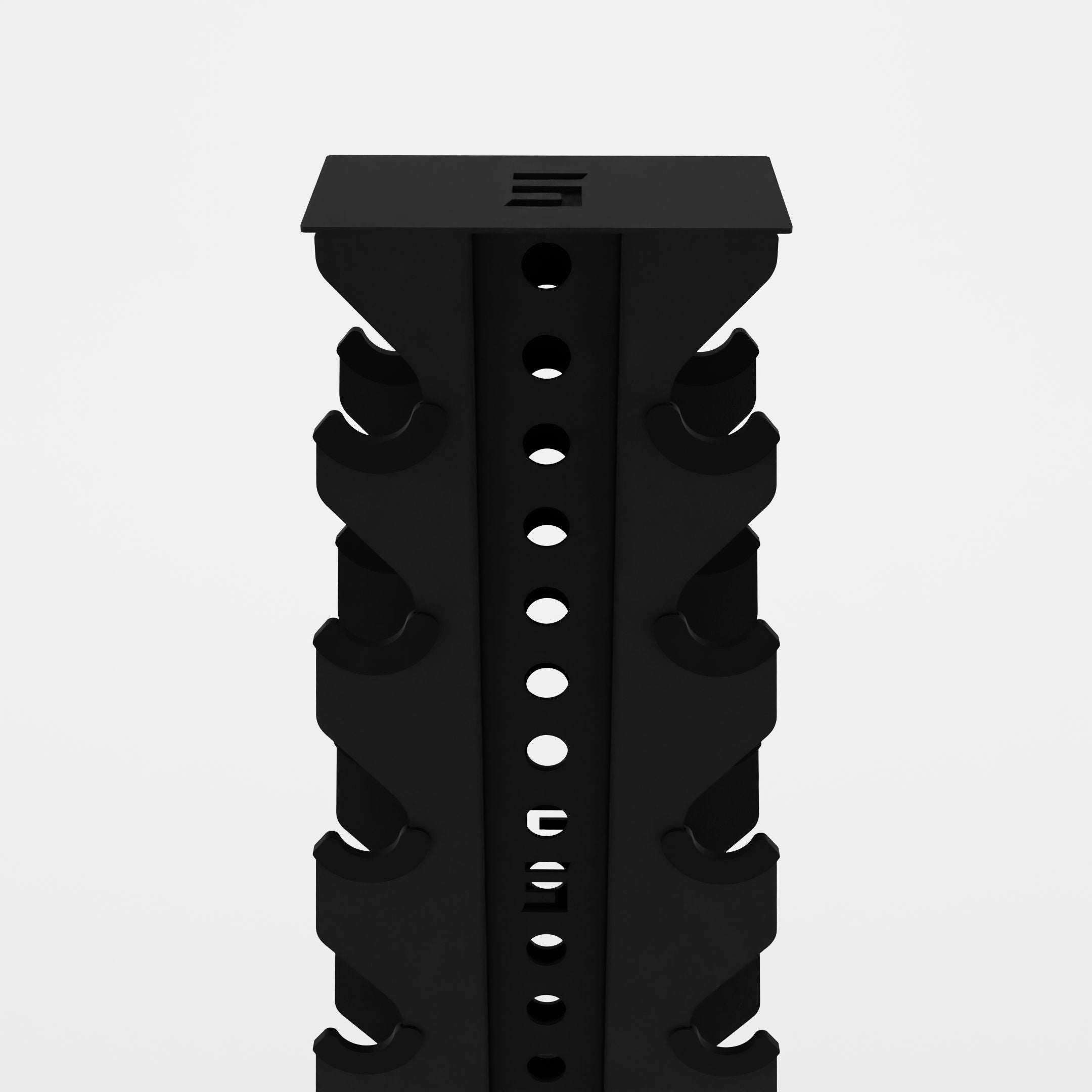

Upright: 3"x3" upright with 1" holes 2" apart

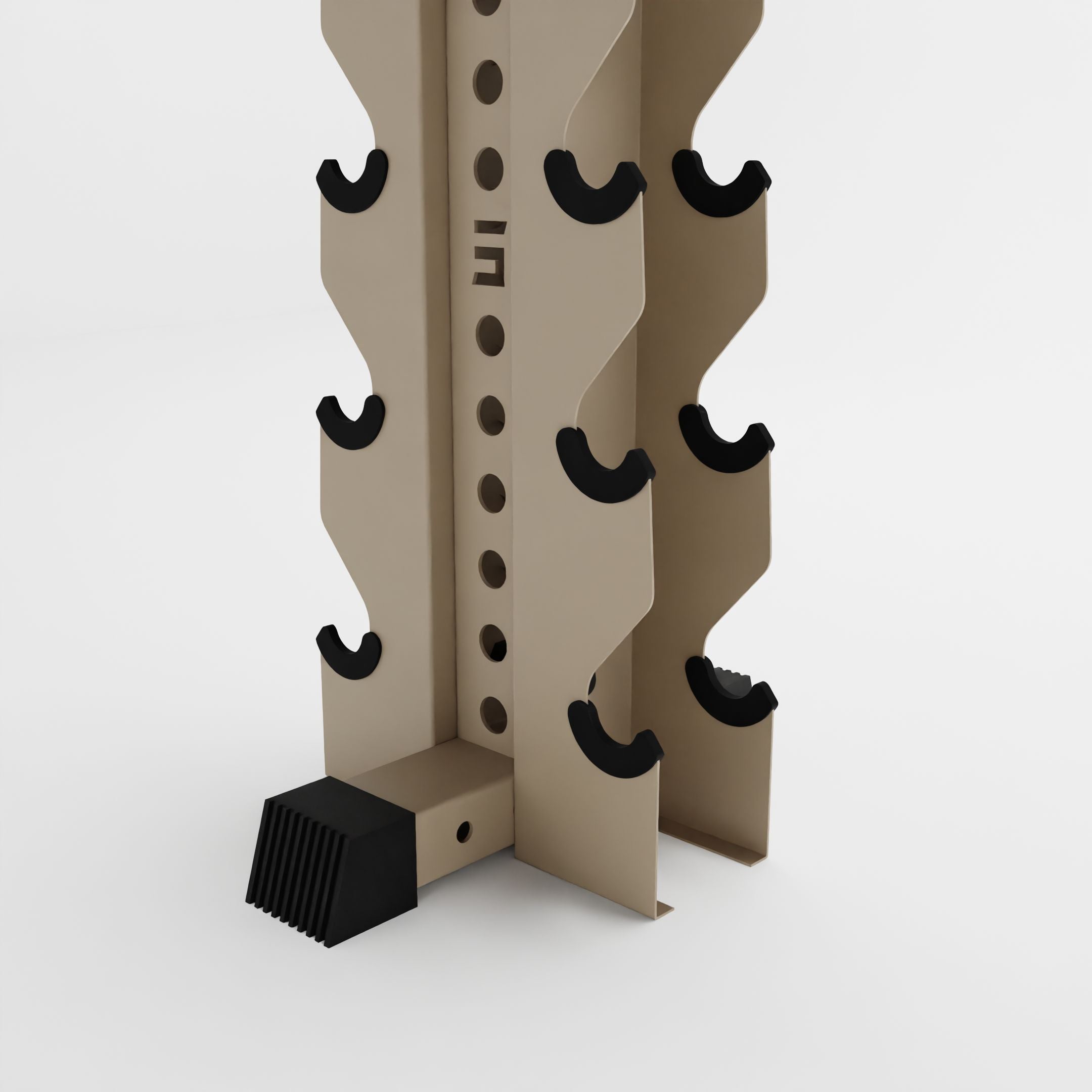

Base: 2"x3" tubing with 9/16" holes 2" apart
Material: 11 Gauge Steel
Hardware: ½" Hardware
Finish type: Powder Coat
Assembled Net Weight: 32.6 lb.
Package dimensions: 34" x 5.75" x 11.50"
Packed Weight Gross Weight: 34" lb.
Warranty: Limited Lifetime
Inside gap dimension: 4.32"
(This is the spacing of the inside gap of the rack. Not the required dumbbell handle size.)
Dumbbell handle dimension needed: 5" or more
(Your dumbbell’s handle must be at least 5" long to sit properly on the rack.)
FAQs
Q: I have 5 sets of dumbbells from 5-25 lb. Will they all fit?

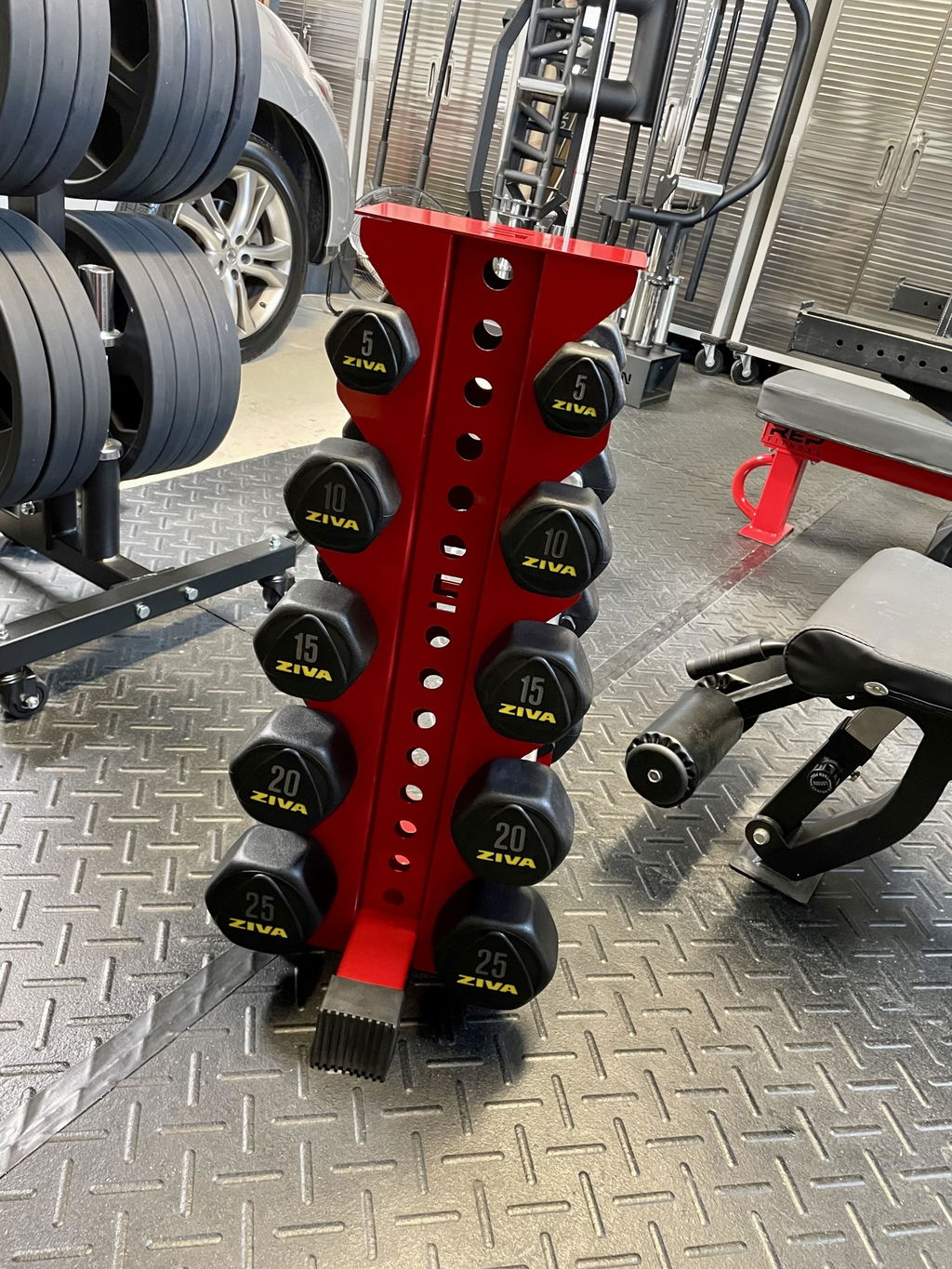

Absolutely! This rack was designed specifically for that range. A combination of 5, 10, 15, 20, and 25 lb hex dumbbells provides the most spacing between tiers and the easiest re-racking experience.
Q: I dont have a standard 5-25 lb. set. What other combinations fit?
A: 5–25 lb Set: ✅ Optimal. Maximum clearance; easiest to rack.
10–30 lb Set: ✅ Ideal. Solid 1" safety gap on all tiers.
15–35 lb Set: ⚠️ Snug. Meets the 1" limit exactly on the bottom.
20–40 lb Set: ❌ Tight. Not recommended; creates a "pinch zone" under 1".

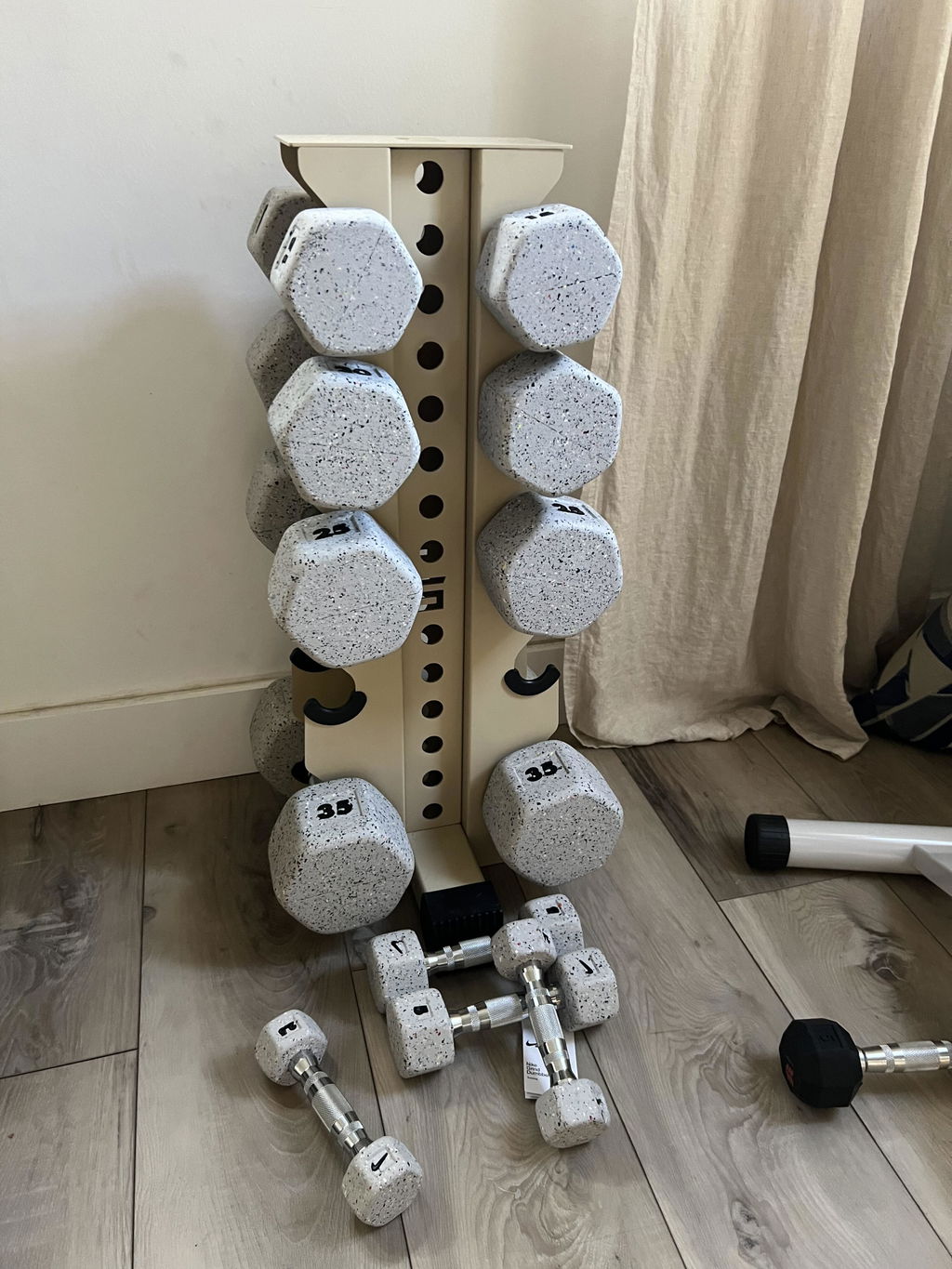

Q: I need to store my 40 & 45 lb. dumbbells. Will they fit on the bottom two tiers?
A: They will physically fit, but there is a trade-off. To maintain sufficient space between the tiers while using a 45 lb dumbbell (6.9" head) on the bottom, the weights stored in the tiers directly above it must be much lighter and smaller (such as 5s, 10s, or 15s) to compensate for the lack of vertical room.
Q: What if I need to expand my dumbbell collection one day?
A: If you think you will someday expand your dumbbell collection, you can expand your rack into a horizontal rack at any point with our Expansion Kit.
Q: What's the handle space? Will my fingers be pinched?
A: The handle has 4.32" of space. This allows extra space compared to the standard vertical rack to avoid pinching fingers!

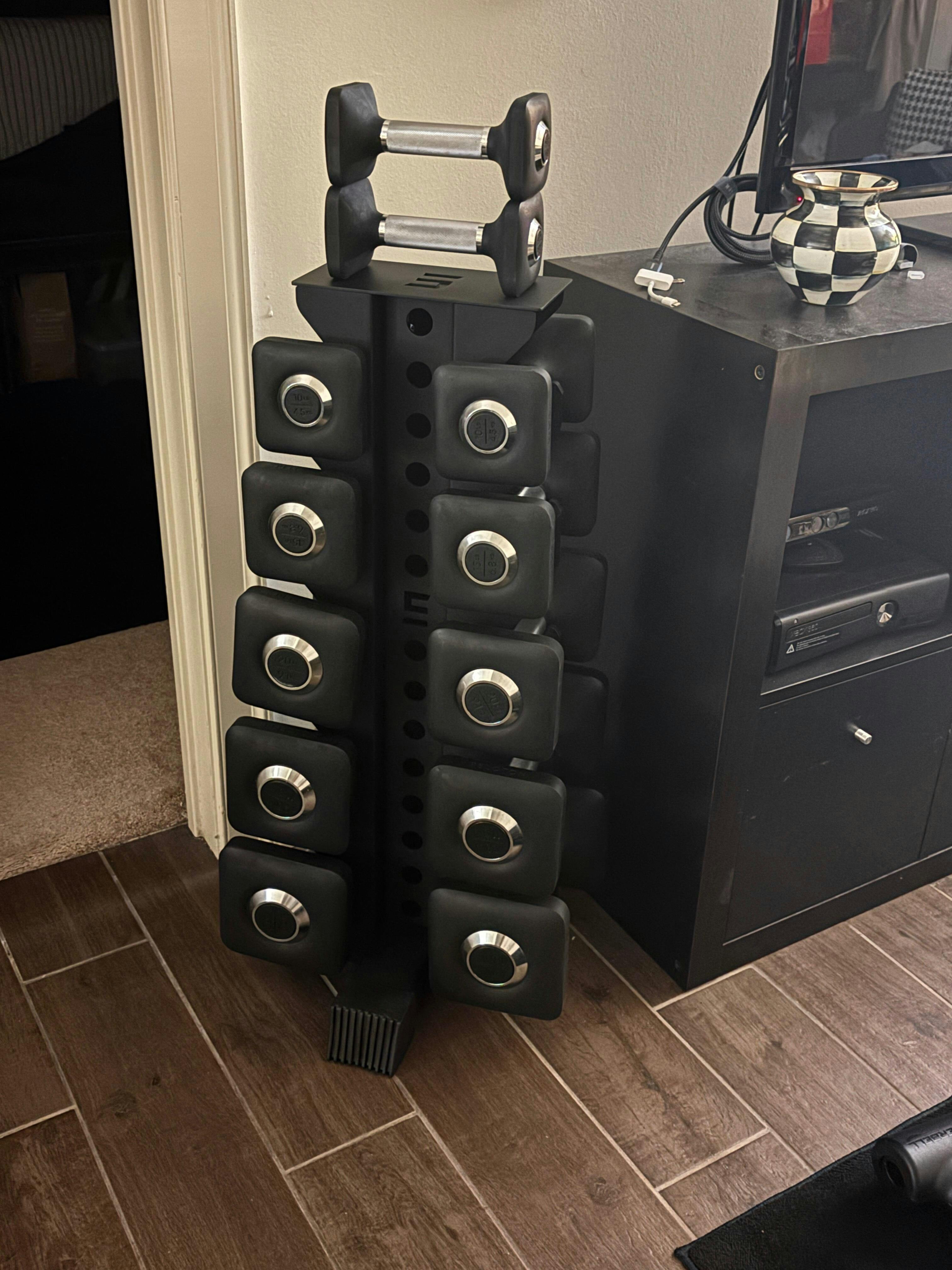

Q: How do I know if my dumbbell combination and type will fit this rack?
A: The most commonly used dumbbells for this rack are hex, urethane, and Peloton square dumbbells. However, to make sure your dumbbell combination will fit, please refer to the "Dumbbell Fitting Guide Dimensions" to confirm good fit for your dumbbell collection. You can also find this guide under the "Product Documents" section below.
Q: Can I expand this rack into a horizontal rack?
A: Yes, you can take this rack apart and expand it into a 2-Tier Horizontal Rack with our Expansion Kit.
Q: How many accessories can I fit on this rack?
A: You can fit several combinations of accessories on this rack depending on your needs. You can fit up to 4 accessories using both sides of the rack and the legs.
Product Documents
WILL MY DUMBBELLS FIT?🤔
Dumbbell sizes vary by brand—don't rely on the weight (lbs) alone. Follow these steps to verify your fitment:
1. Check Handle Length: Your dumbbell handles must be at least 5" long to fit on the rack.
2. Measure the Diameter: Measure the widest straight-line distance across the face of the dumbbell head to find the total diameter in inches.
3. Input by Pair: Starting from the Top (Pair 1) to the Bottom (Pair 5), enter your measurements below and click "Calculate Vertical Space".
4. Verify Vertical Space: Review the results to see your Available Vertical Space, ensuring you have enough space to rack your weights without hitting the pair above it. A result of 1" or more is optimal.
Always load from lightest to heaviest to maintain ample clearance for racking at each tier.
FITTING CHEAT SHEET
While the calculator above provides your specific results, this chart shows a standard balanced configuration using common dumbbell sizes. Use it as a quick benchmark to understand how head diameters affect your spacing, but make sure to measure your own dumbbells.
Use this as a starting point to plan your layout.
| Transition (Pairs) | Vertical Gap | Max Head Size (TOP) | Max Head Size (BOTTOM) | Vertical Space |
|---|---|---|---|---|
| Pair 1 to 2 | 5.00" | 3.00" (5-10 lb) | 4.50" (10-15 lb) | 1.25" |
| Pair 2 to 3 | 5.88" | 4.50" (10-15 lb) | 5.00" (20 lb) | 1.13" |
| Pair 3 to 4 | 6.19" | 5.00" (20 lb) | 5.30" (20-25 lb) | 1.04" |
| Pair 4 to 5 | 6.63" | 5.25" (20-25 lb) | 6.00" (30-35 lb) | 1.00" |
our dumbbell configuration Formula
The calculator above determines your exact available vertical space between each head of the weights for each tier using this formula:
Vertical Gap - ((Head Size Top + Head Size Bottom)/2) = Your Air Space
How to Break This Down (Step-by-Step):
Step A: Add the diameter of your Top dumbbell head and bottom dumbbell head together.
Step B: Divide that total by 2. (This gives you the "average" space the two weights take up).
Step C: Subtract that number from the corresponding Vertical Gap shown listed on the right side of the diagram above
The Result: This is your Available Vertical Space (anything below 1.0 will not be optimal)
the best way to store your dumbbells ✅
How much space does the bravo rack take?
The Bravo sits at 32 1/2″ with a 1.47 ft² footprint and was purpose-built to ensure stability. This is the best way to store your dumbbells when looking to maximize your space.
what dumbbell configuration is best for the Alpha rack?
Our Bravo rack holds 5 pairs of dumbbells and was designed to store a set of 5-25 lb. However, if you have 15-35, it will fit. Given the spacing at the bottom tiers, you could fit up to 35 lb. Anything outside of this, we recommend you check out our Fitting Guide to ensure your dumbbells fit!
Your dumbbell handle needs to be at least 5 inches for it to fit on the rack.
what accessories can I attach on the rack?
Our Bravo rack upright and base allows you to store landmines, battle rope anchors, barbell holders, and plate holders - all with the exact same footprint.
Besides the plate holder, each accessory comes in two variations depending on whether you want to attach it to the upright or the base.
will i pinch my fingers?
When designing our vertical dumbbell racks, pinched fingers was NOT an option for us. That's why we created a 4.32" gap within the dumbbell spacing. We provide the widest gap for vertical racks in the market.

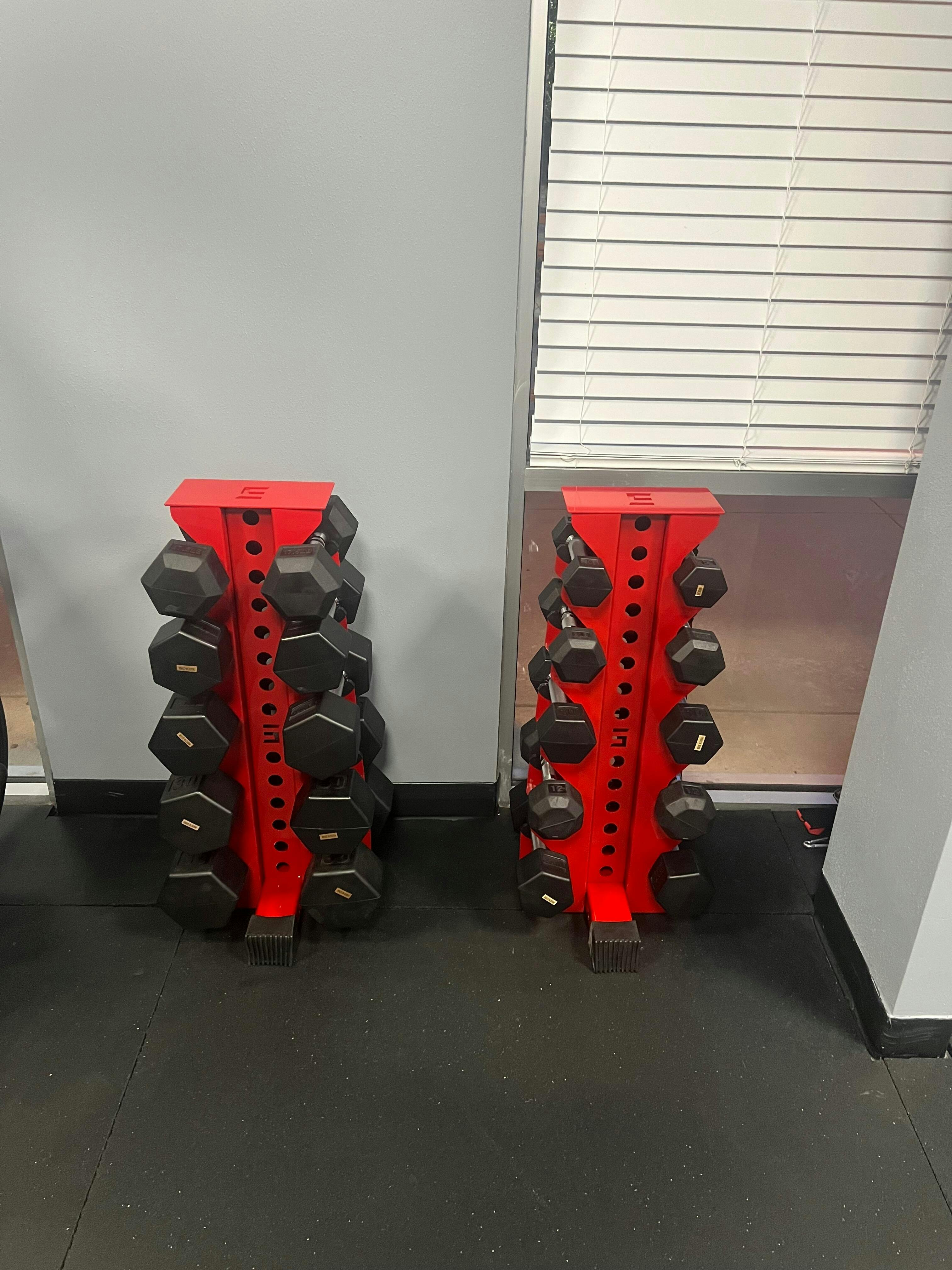

I have a commercial gym. whats the best application for your racks?
Our racks make for efficient stations to implement to any fitness class, allowing each client to have access to their own dumbbells, plates, and workout stations.
is this difficult to assemble?
Absolutely not! As home gym owners, we know the struggle of assembling equipment with too many steps. The rack only requires 5 bolts and can really take just 5-10 minutes to put together. It really doesn’t get any easier than that!
